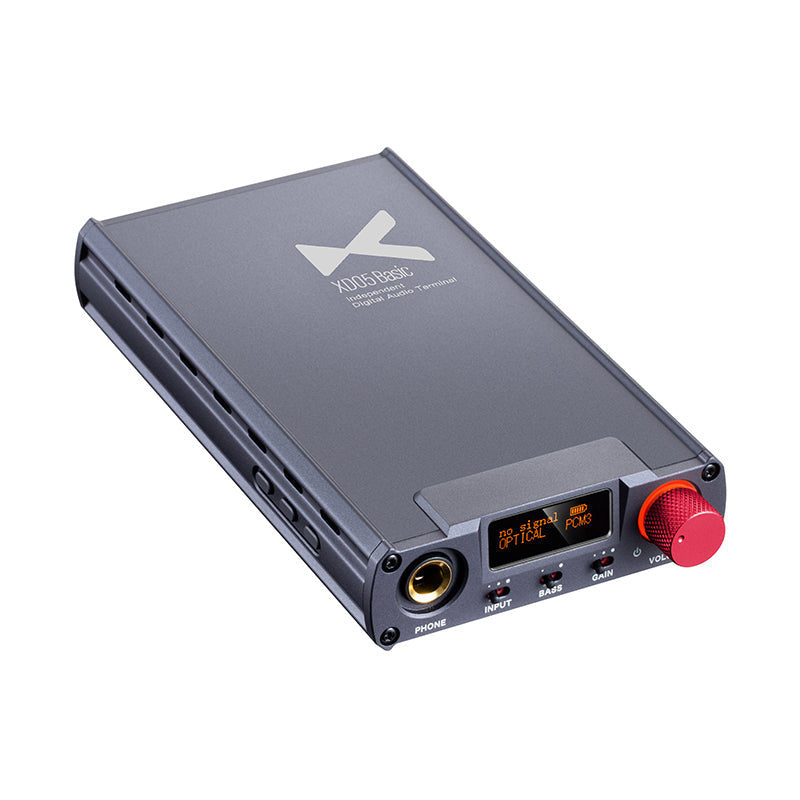

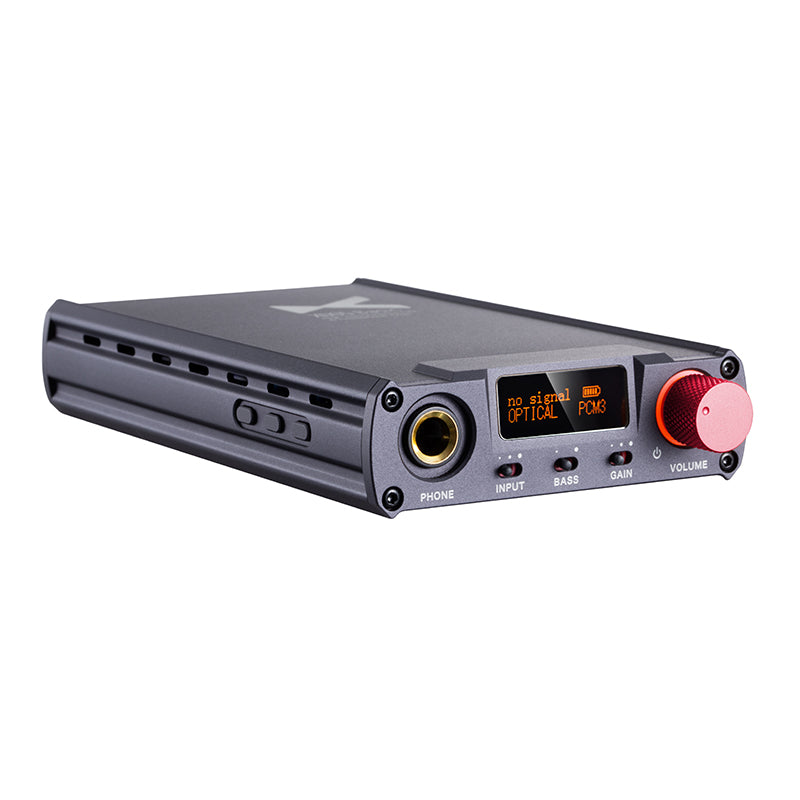

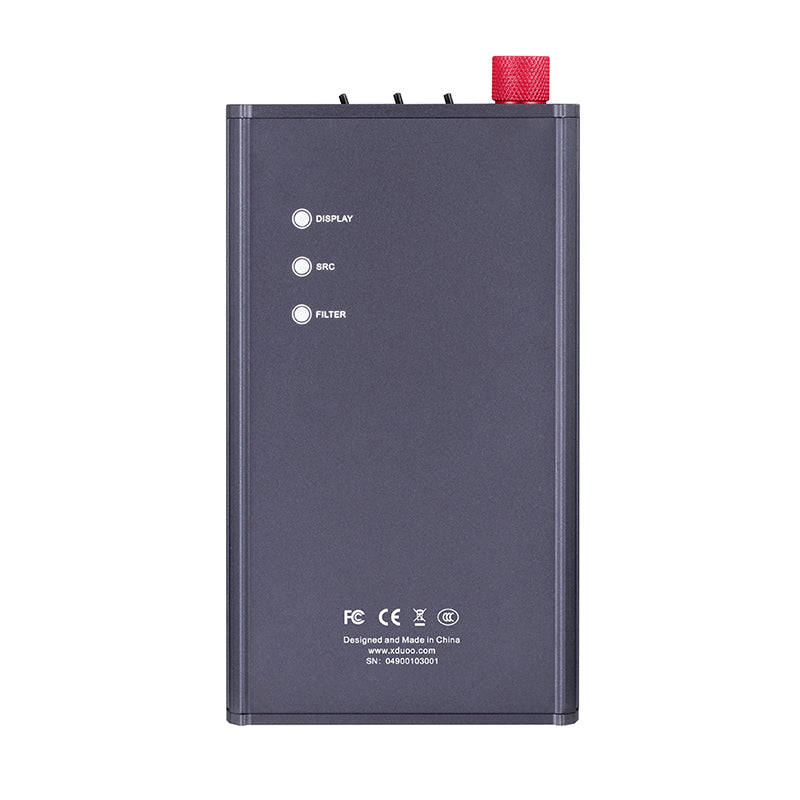

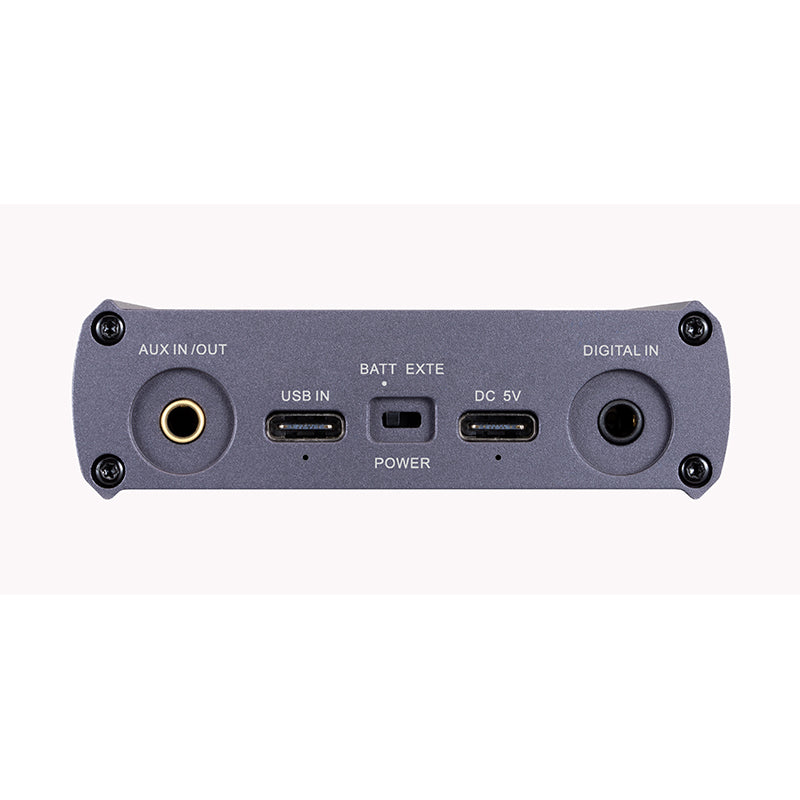

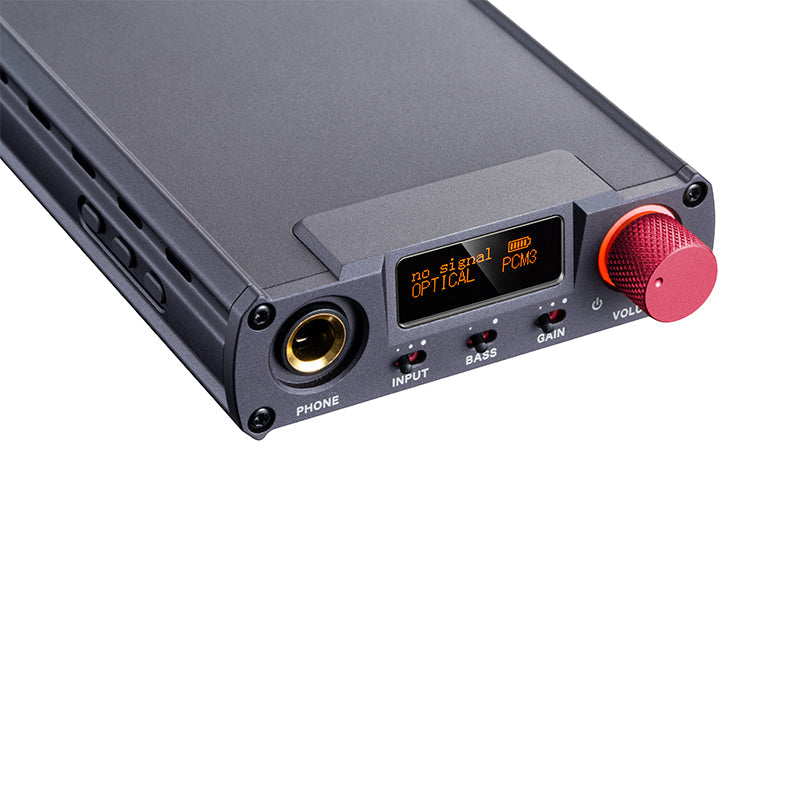

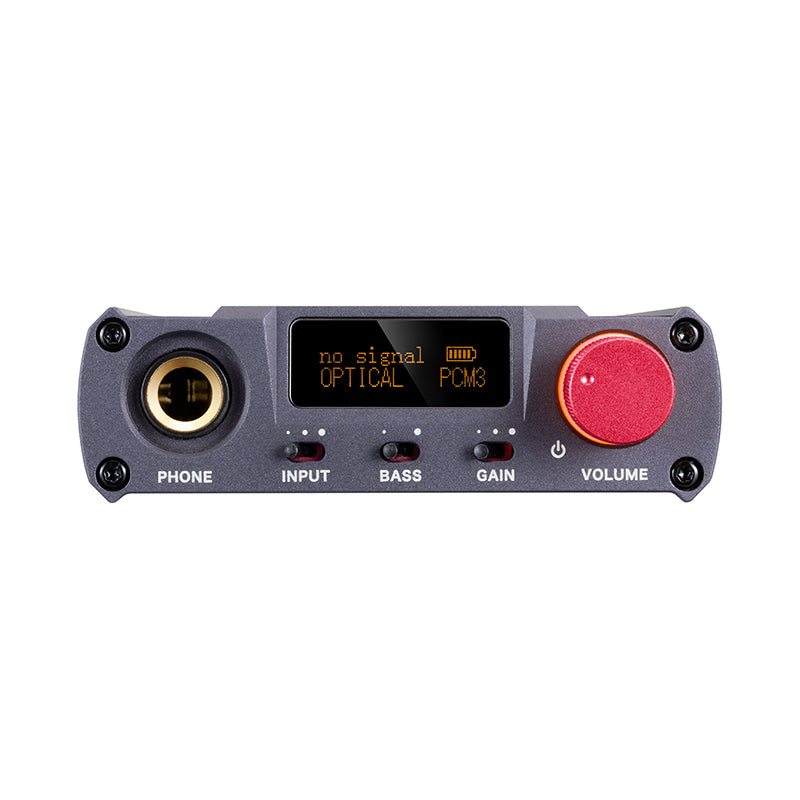

Xduoo XD-05Basic

Digital Audio Terminal Headphone Amplifier

    0.91 inch OLED scree, easy to notice
    Personal sound enhancement
    Heavy bass and big sound stage to reproduce bursting sound
Regular price ₩220,157
Sale price ₩220,157 Regular price

High Audio Performance for Game and Video.

The portable XD-05 Basic provides high-quality and high performance for game audio and video with its compact structure. It is compatible with desktops, laptops, tablets or any smart devices, and provides enhanced audio experience for PC, PS4, XBOX and other gaming platforms.

Professional Applications.

HD digital audio decoding is smooth and subtle sound with high fidelity. The built-in mainstream ES9018K2M DAC supports high-resolution sampling rate of PCM up to 32-bit/384kHz, and up to DSD256 for high-fidelity playback of original audio and listeners can discover hidden details and subtleties while playing games, watching movies or listening to music

500mW Output Power-Sufficiently Powering Headphones.

The OP+ClassA amplifier circuit which has been widely praised by audiophiles provides 500mW power and can effectively driving headphones with an impedance of 16Ω-600Ω from in-ear headphones to studio headphone, allowing you to enjoy more audio details about the treble, midrange and bass.

Personal Sound Enhancement System.

The headphone output adopts an on-demand design to flexibly match your headphones with the correct output power, optimizing the playback volume when you play games or listen to music, while reducing the output distortion of the computer at high volume and respond quickly without increasing background noise.

Custom Sound Effects..

XD-05 Basic inherits the structure of XD-05 series which you can freely replace the operational amplifiers to achieve your favorite features of sound quality. The different settings of 2PCM digital recorders and 3DSD digital filters bring different sound effects, allowing users to choose the frequency response curve, including warm and soft, transparent and precise. And more flexibility t o choose and experience different sound effects is offered.

Inside the Box

  • 1 x Xduoo XD-05Basic
  • User Manual

1 Year Warranty

The Xduoo XD-05Basic Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

DAC Chip
AK4490
USB DAC
Yes , support
Size
139*75.2*22.8mm
Bluetooth Version
V5.0
Working time
about 9 hours
Output power
500mW(32ohm load)
Crosstalk
>/=75dB
Computer USB input
support Win7/8/10, MAC, iOS, Android system
Battery
3.7V/4000mAh
Function
SRC
Support Device
PS4/PC/Switch/X-BOX
Material
Aluminum alloy
Optical and Coaxial Input
Yes , support
Charging time
fast charging 1.2A

Authentic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Worldwide Free Shipping

We are located in China but send our products worldwide for free. T&Cs apply.

1 Year Warranty

We provide 1 year warranty for the all products except the cables and accessories*.

Online Support

Need help?, we are here to assist you
Monday - Friday: 09:00 – 18:00 (UTC+8)

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Matthew
Good starter.

Definitely a good starter amp. I use it with my pc for headphones and iems and it does a great job. The fact that it has its own battery is awesome too.

D
Dhananjaya Wickramasingha

Xduoo XD-05Basic

J
Jason Lee
Good little combo

It's good (m40 ,mono retro) but it performs better using USB over aux I don't have anything using digital in and I don't have the BT adapter

S
SoulD
Powerful Little Beast

Using on iem's on desk. It's powerful on low gain, never reaches over the 12 o'clock position for most of my iem's, in which I tested around 25 of them on. The sound is clean, unless you turn on the bass, which is slightly warm with a nice boost over all frequencies, it's certainly not bloated, I like that! It brought 2 iem's to the forefront which really surprised me(Pretty much stopped listening to these two until now). It greatly improved the ikko 01 and the Brainwavs B400 to which I really enjoy them even more. To my surprise also, my favorite iem's I listen to on my FiiO K3 didn't sound too good on this, my CVJ's, it brought out too much sharpness in them, on the Blon 05's you can really hear the slight muddiness on them, but still sounded good, which tells me this amp is really good in the clarity/clean department and that it will bring out and emphasize the good and bad on iem's. The filters, not very much difference, but I stick with "1(Seems normal) & 3(Seems like a slight sub-bass increase)." #2 seems slightly warmer, but it's so slight on all of them it's really hard to tell, have to really listen to super heavy bass tracks to get an idea of what's what. Battery last for around 5 to 6 hours, never has died on me for a music session, charges with the cell phone block quickly.
Negatives: C-type cable had wires exposed in the joint area. Can't see placement of volume on knob in low lit room. Side buttons need some color to see.
