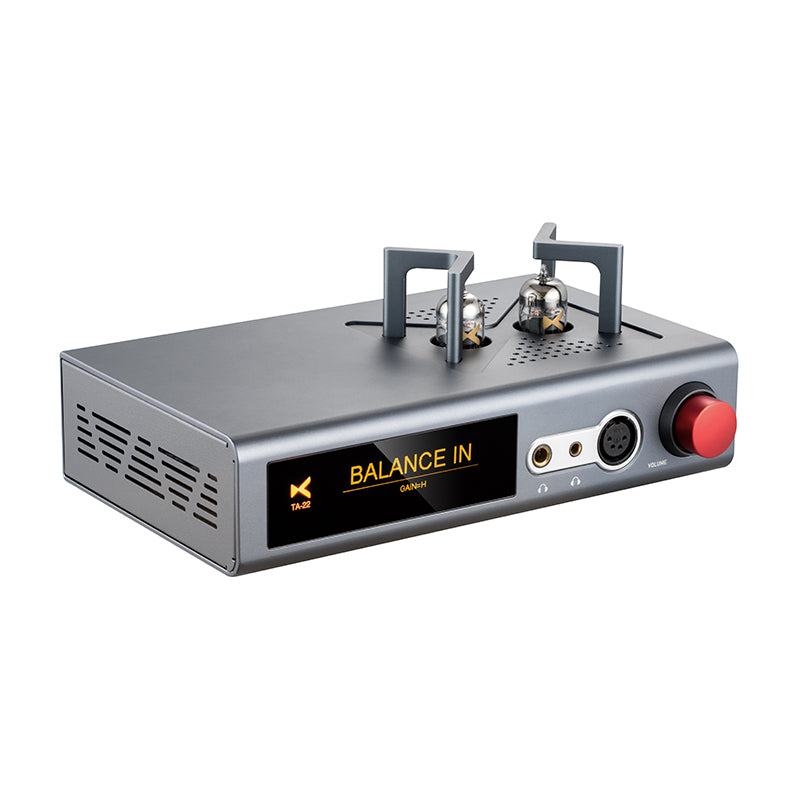

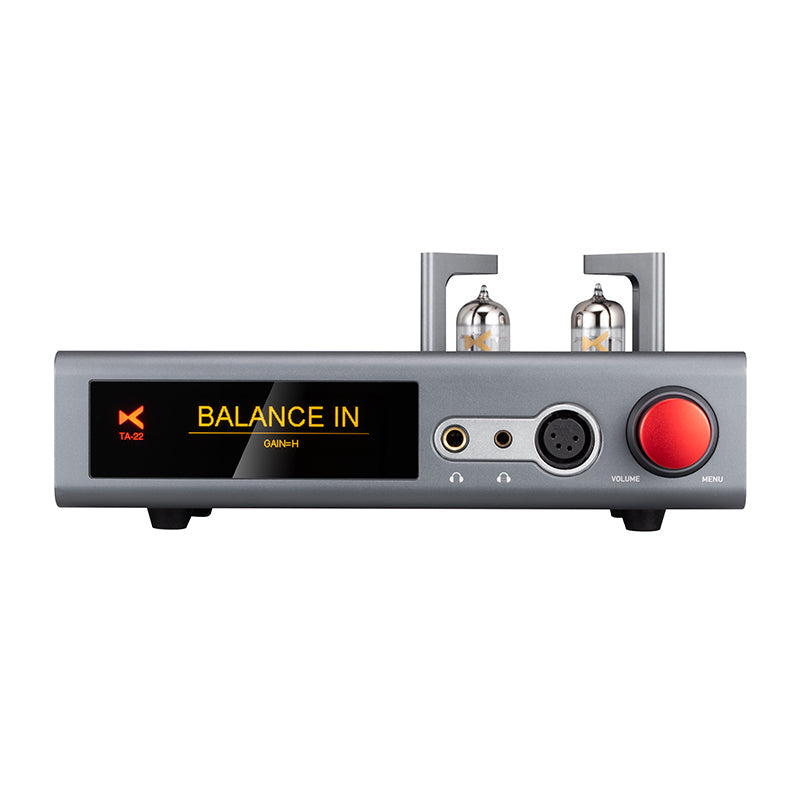

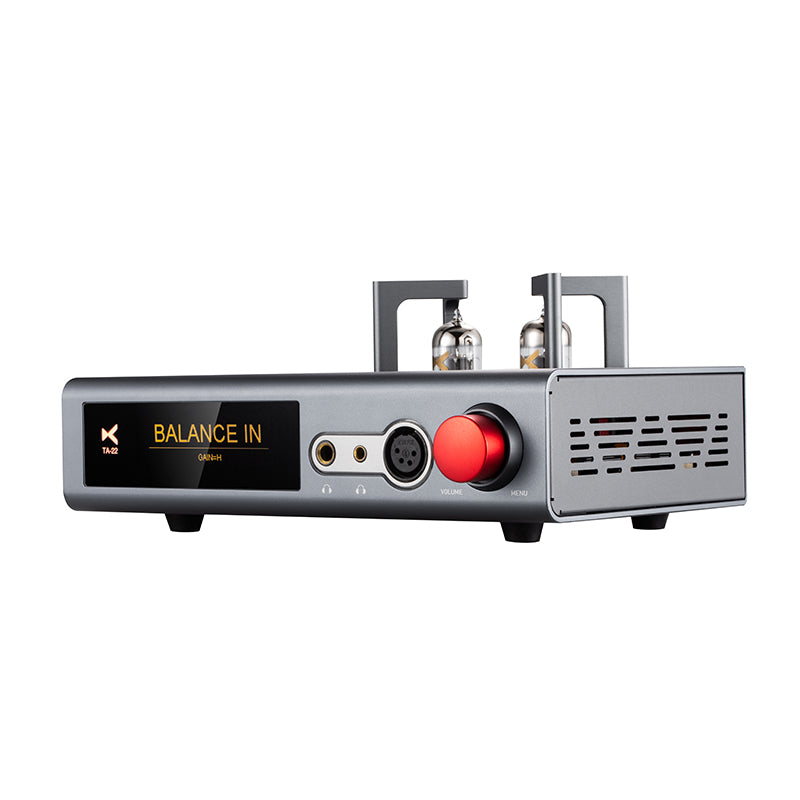

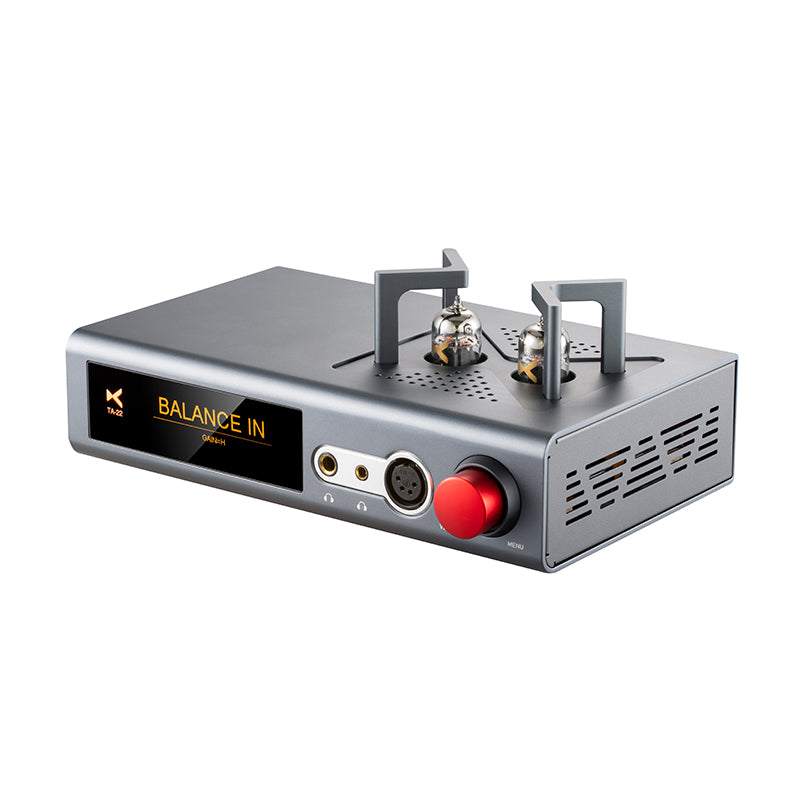

XDUOO TA-22

Double ES9038Q2M DAC Chips Tube Hybrid Balance Headphone Amplifier

    Dual ES9038Q2M DAC Chips
    Tube + Hybrid Amplifier Structure
    Enthusiast ELNA & NICHICON Capacitance
    High-Power Balanced Output & Several Input Interfaces
    Qualcomm QCC5125 & AK4118 Receiver Chips
    Warning: Please adjust the voltage to the appropriate level before use to avoid device damage due to overhigh connection voltage.
Regular price ₩694,561
Sale price ₩694,561 Regular price

Dual ES9038Q2M DAC Chips

Equipped with two professional ES9038Q2M DAC chips from ESS processing the left and right channel respectively, the TA-22 from XDUOO has lower distortion and higher SNR to greatly improve resolution and more detailed sound performance. The XDUOO also characterizes USB DAC decoding, which can help connect computer, cellphones (iso / Android), table, HIFI player and other devices conveniently.

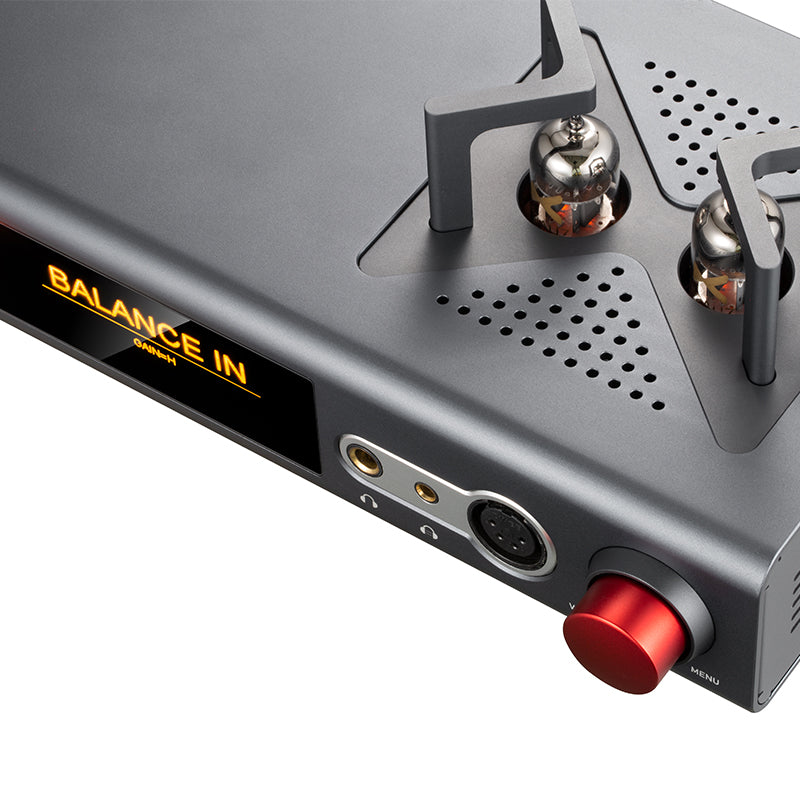

Tube + Hybrid Amplifier Structure

To easily drive any kind headphones in strong output power, the TA-22 amplifier adopts transistors for class A buffer. With this Tube + Transistor hybrid amplifier structure, the XDUOO can not only bring exquisite and soft sound, but also give consideration to explosive force and speed.

Enthusiast ELNA & NICHICON Capacitance

Utilizing the metal polyester film capacitor customized by the tuner in the capacitance with the coupling capacitance of duct output, XDUOO TA-22 features the special enthusiast Japanese ELNA capacitance as the coupling capacitance and NICHICON capacitance as the main filter capacitance. This amplifier characterizes smooth and warm sound with splendid high frequency.

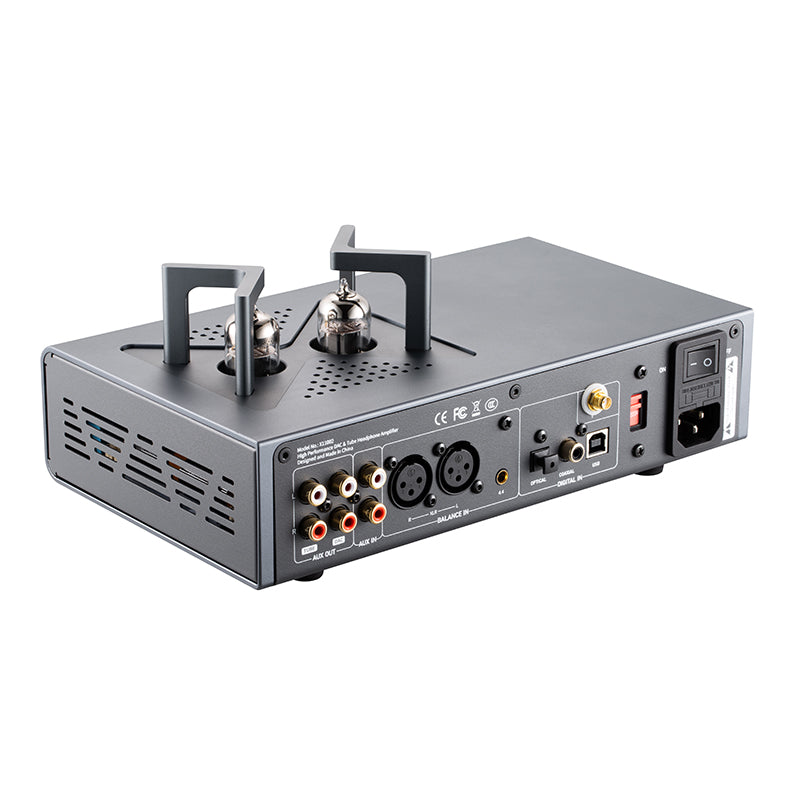

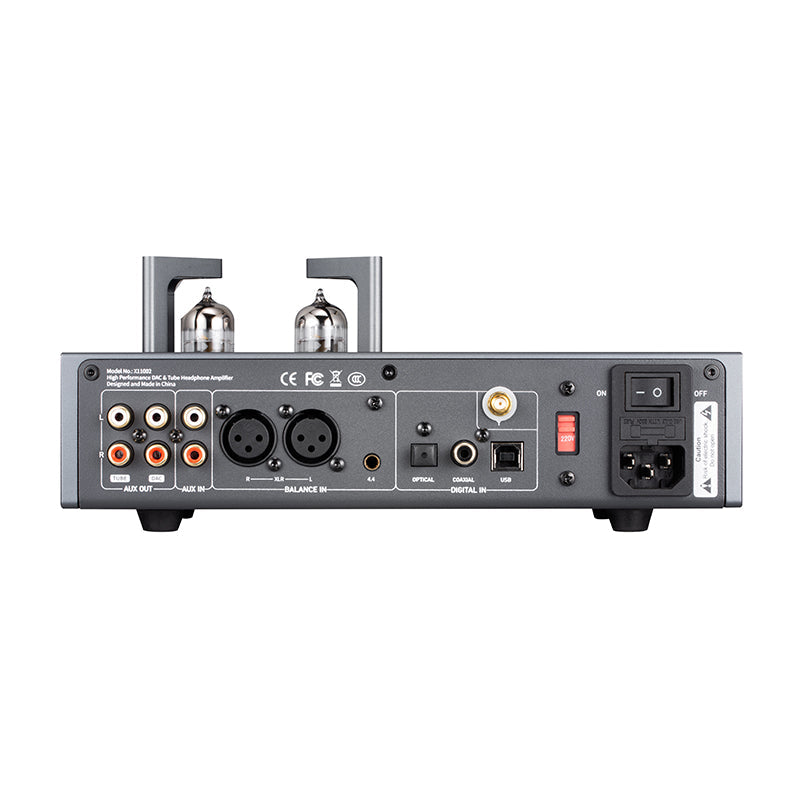

High-Power Balanced Output & Several Input Interfaces

Featuring 4-pin XLR and 4.4 balanced output, the output power can reach 3000mw, which can easily drive headphones with impedance from 16-600Ω. It is worth mentioning that users can enjoy more sound details in bass, mid-range and treble. Besides, there are several input interfaces, which can be comprehensively equipped with various front-end devices.

Qualcomm QCC5125 & AK4118 Receiver Chips

Standard with the Qualcomm QCC5125 receiver chip, XDUOO TA-22 adopts Bluetooth 5.1 technology, supporting the SBC, AAC, aptX, aptX_LL, aptX_HD and LDAC formats. This amplifier also aims to support high specification signal through the coaxial/optical fiber decoding of various desk-type and portable players. In this case, the TA-22 adopts an AK4118 receiver chip, supporting up to PCM 24Bit/384kHz, DSD128.

Inside the Box

  • 1 x XDUOO TA-22
  • User Manual

1 Year Warranty

The XDUOO TA-22 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Screen:
3.12inch OLED
Power Supply:
(AC100-120V/220-240V)
Compliant OS:
Linux、Window、Macos, IOS, Andriod
PCM:
•USB IN: 16~32Bit/44.1~384kHz
•OPT/COA IN: 16~24Bit/44.1~384kHz
DSD:
•USB IN: DSD64~DSD256
•OPT/COA IN: DSD64~DSD128 (DOP)
MQA (Renderer):
44.1~384kHz
Support Format of Bluetooth:
SBC、AAC、atpX、atpX LL、 atpX HD、LDAC
Output Power:
•6.5mm Headphone: 1500mW(32Ω)
•4.4mm and XLR Headphone: 3000mW(32Ω)
•AUX OUT: 2.0Vrms
Frequency Response:
•6.5mm Headphone: 20Hz~60kHz (±0.5dB)
•4.4mm and XLR Headphone: 20Hz~6OkHz(±0.5dB)
•AUX OUT: 20Hz~20kHz(±0.5dB)
THD+N:
•6.5mm Headphone: ≤0.02%
•4.4mm and XLR Headphone: ≤1 %
•AUX OUT: 0.001%
SNR:
•6.5mm Headphone: 113 dB
•4.4mm and XLR Headphone: 118dB
•AUX OUT: 113dB
Crosstalk:
•6.5mm Headphone: ≥70dB
•4.4mm and XLR Headphone: ≥96dB
•AUX OUT: ≥113dB
Suitable Headphone lmpedance:
16~600Ω
Size:
26*19*7cm
Weight:
3.0kg
