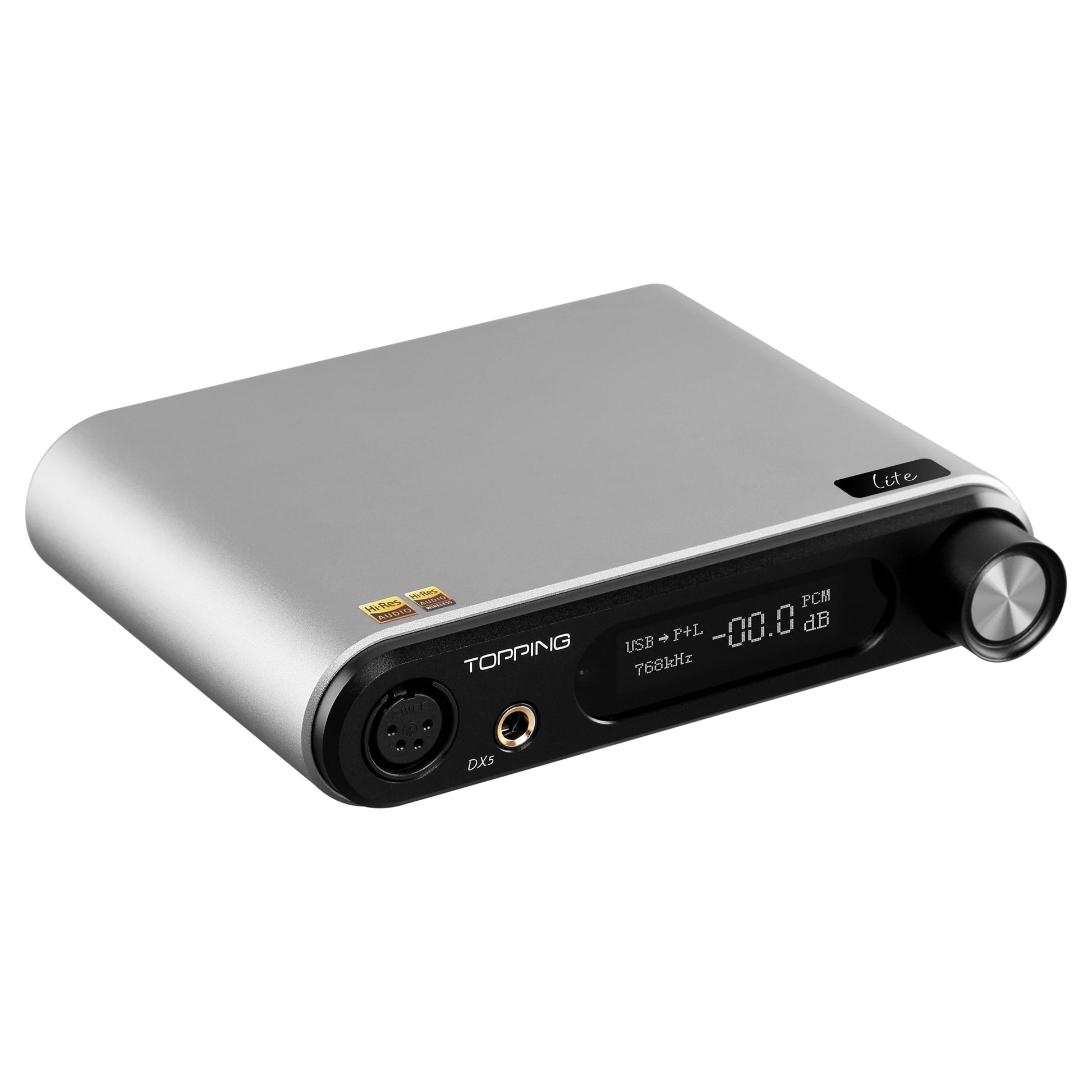

TOPPING DX5 Lite

Desktop Bluetooth 2×ES9068AS USB DAC & Headphone AMP

    Premium dual ES9068AS DAC chips
    Built-in NFCA headphone AMP
    LDAC 24bit/96kHz bluetooth transmission
    Adapt to different usage scenarios
    Plug and play

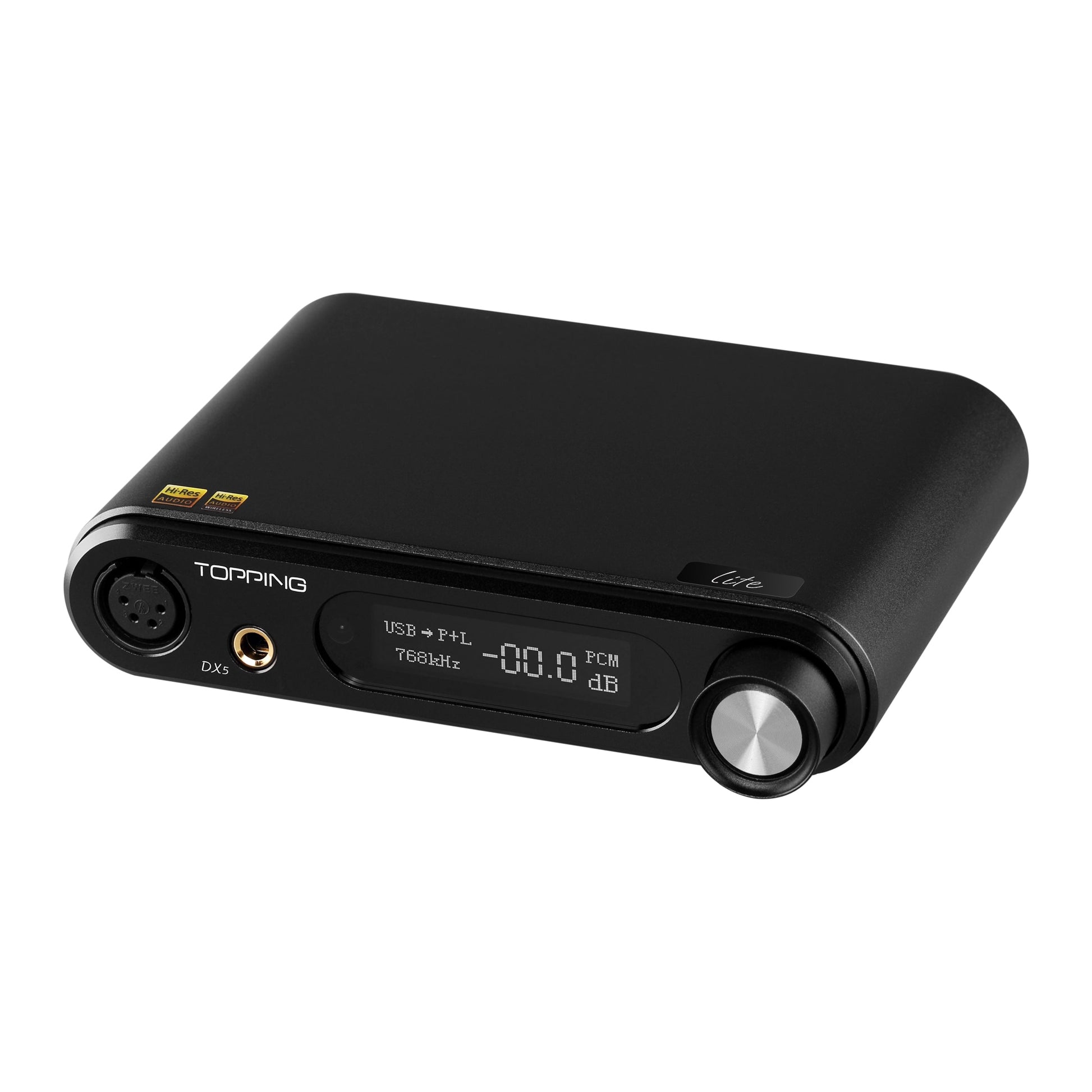

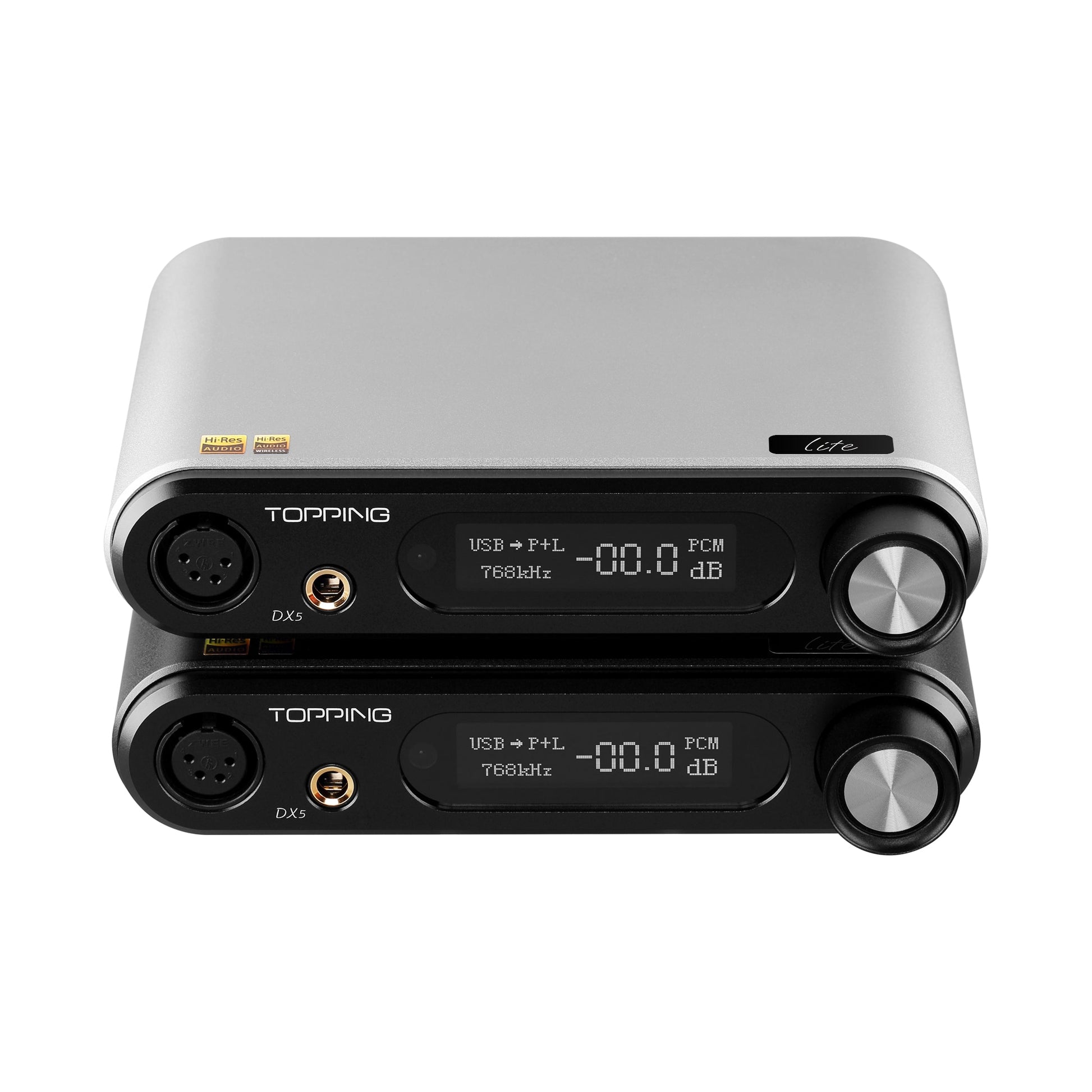

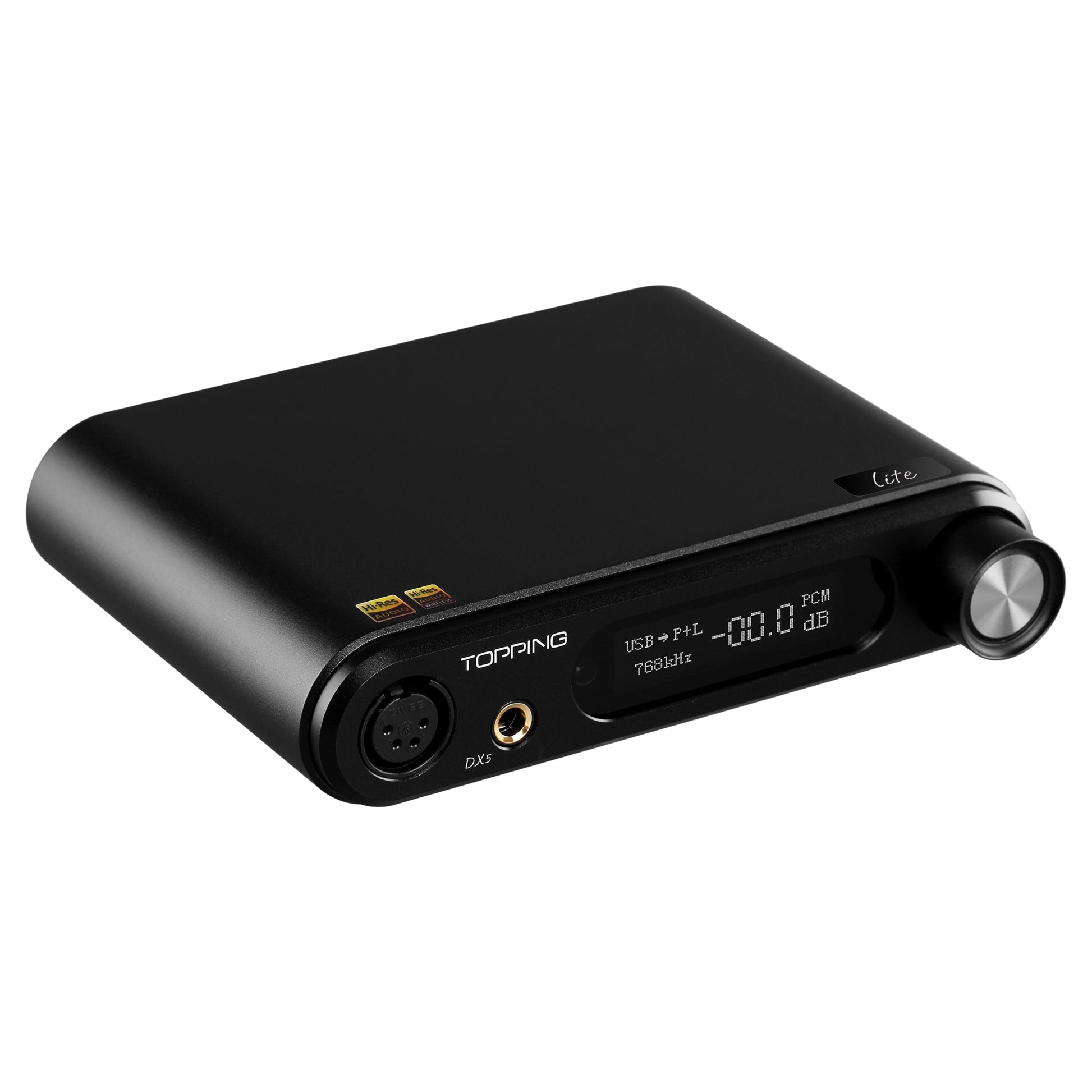

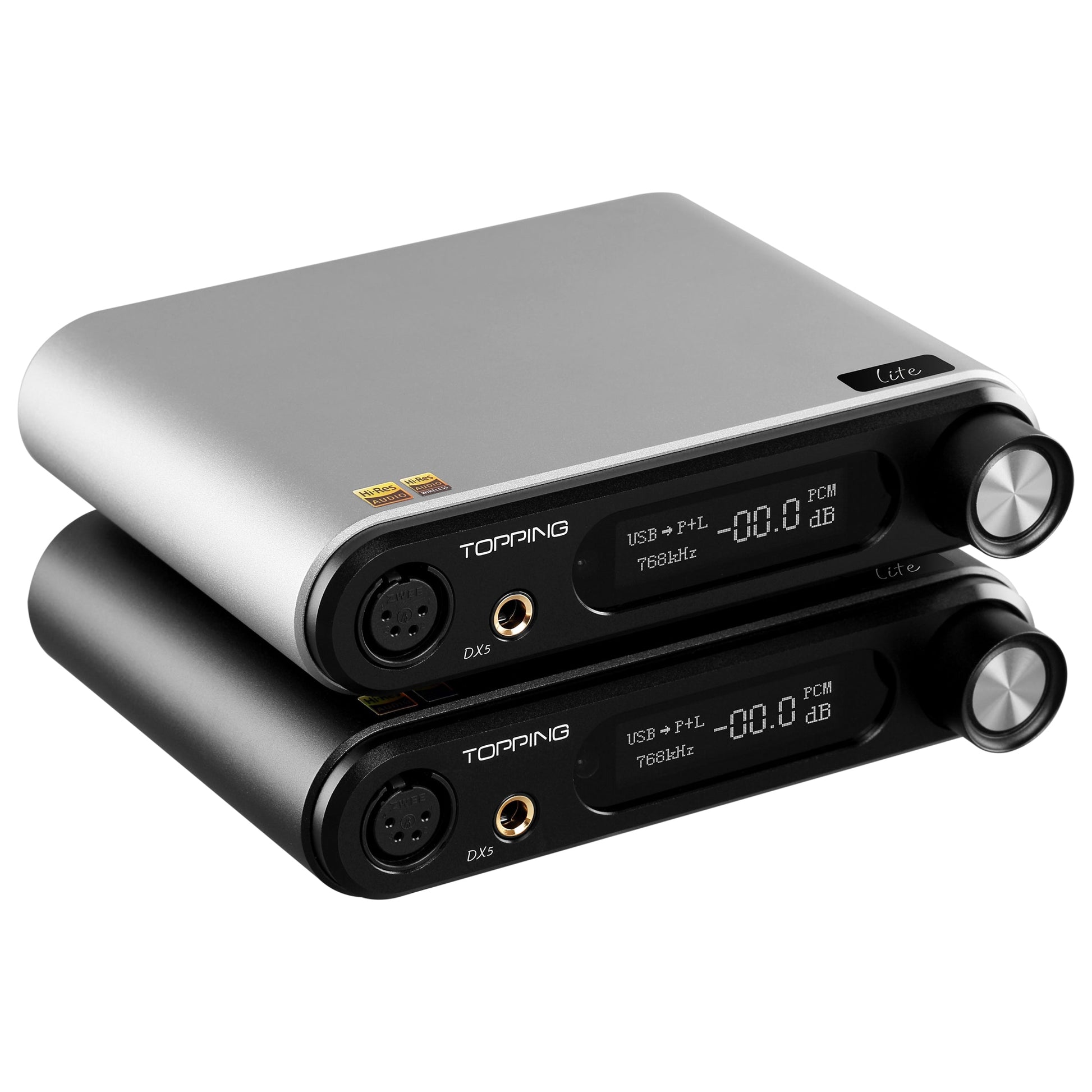

Black

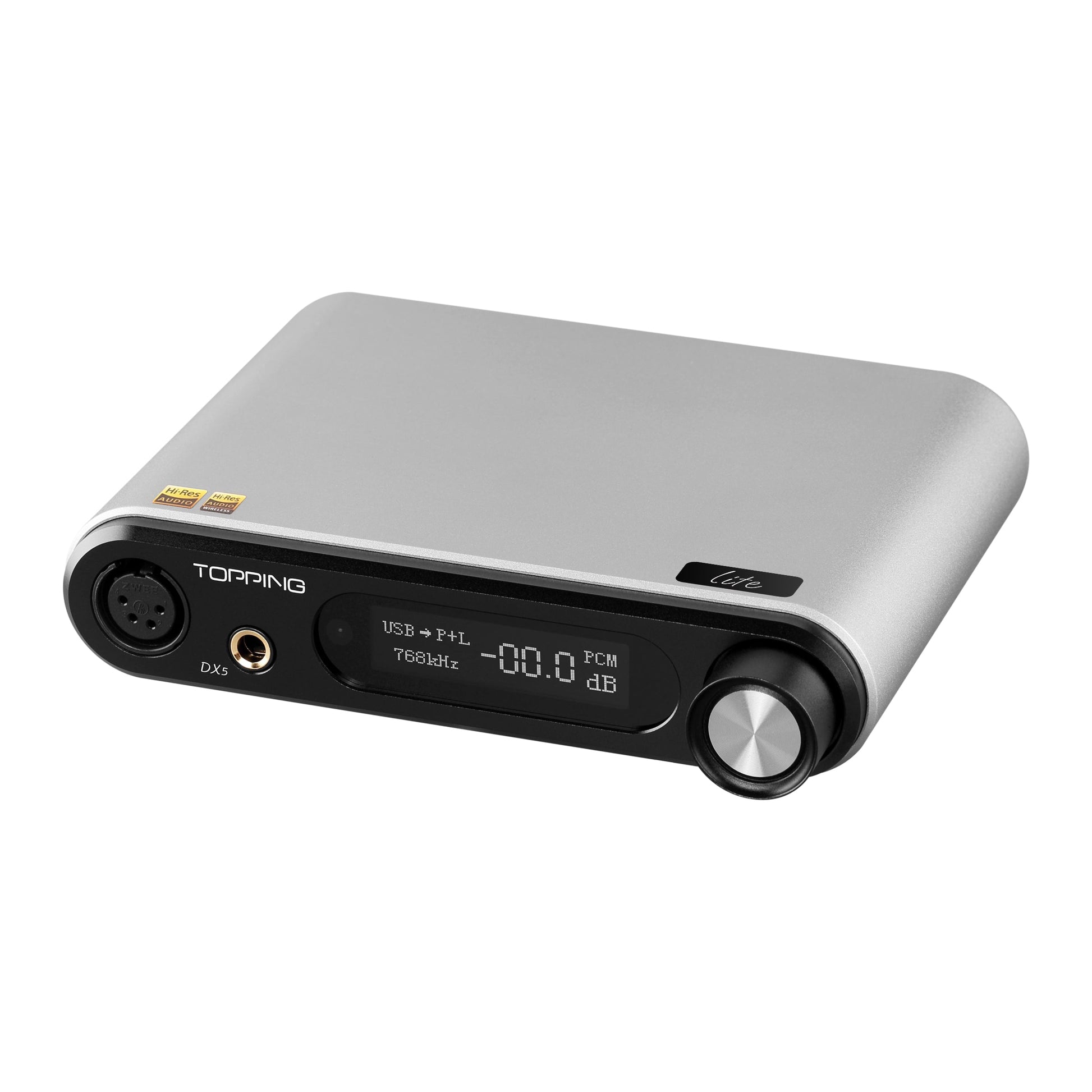

Grey
Regular price ₩495,709
Sale price ₩495,709 Regular price

Premium dual ES9068AS DAC chips

TOPPING has engineered the DX5 Lite with great attention to detail, resulting in an incredible performance from its dual ESS DAC chips. With a THD+N of 0.00009%, a dynamic range of 128dB, and noise levels under 2.0uVrms, this device is sure to deliver unparalleled sound quality.

Built-in NFCA headphone amp

The new DX5 Lite has the NFCA circuit optimized for this unit, giving the ultra low noise and distortion. It pairs with high sensitivity IEMs and power hungry high impedance headphones nicely.

LDAC 24bit/96kHz bluetooth transmission

The DX5 Lite features LDAC 24bit/96kHz Bluetooth transmission, utilizing the latest QCC5125 Bluetooth chipset that supports various protocols such as LDAC, AAC, SBC, aptX, aptX LL, and aptX HD. The Bluetooth input signal bypasses the QCC5125's built-in DAC chip, and the dual ESS chips decode the signal to achieve the best possible sound quality.

Adapt to different usage scenarios

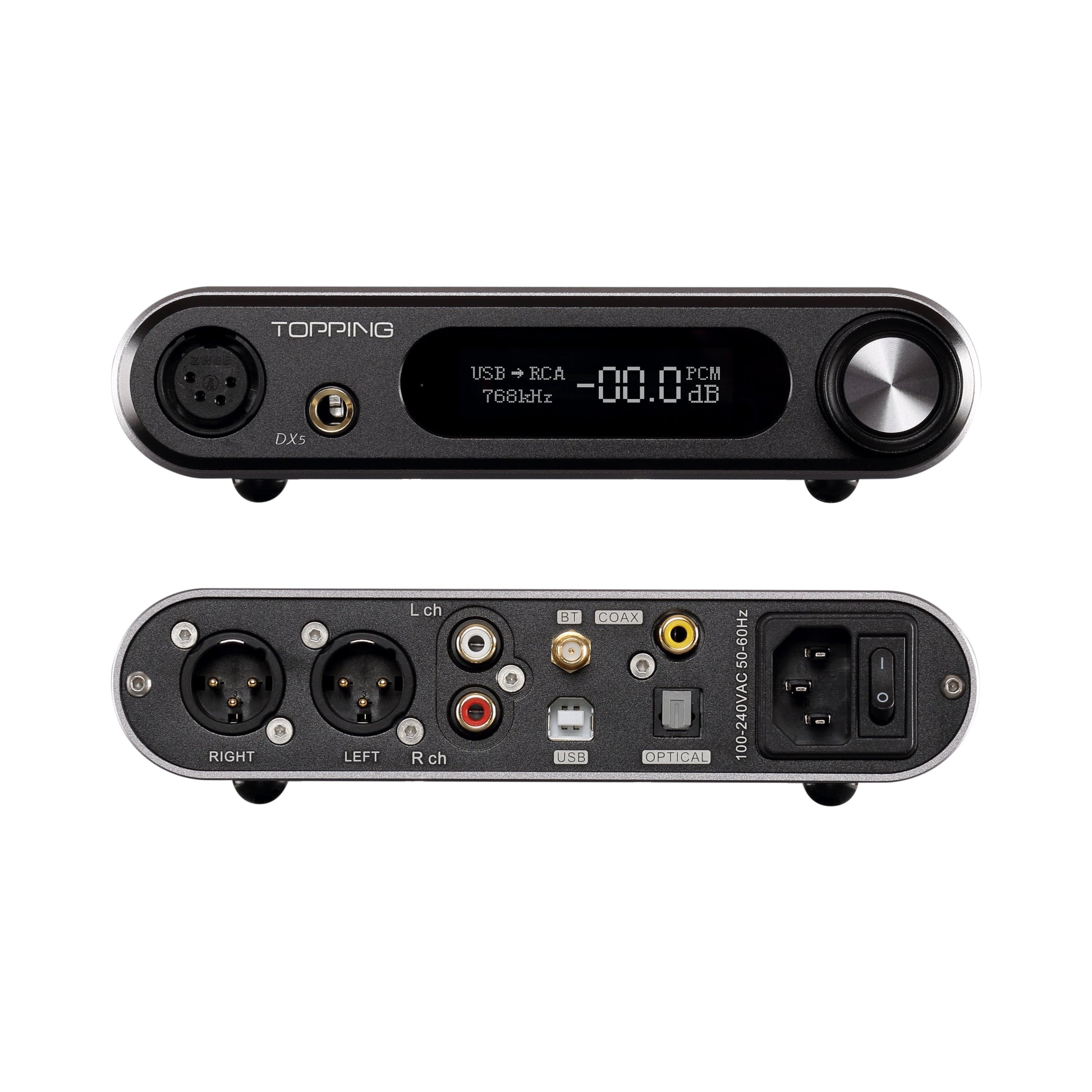

DX5 Lite has 4 output mode: "Headphone Amp", "Headphone Amp + Line out", "DAC" and "Pre-amplifier".

Plug and play

DX5 Lite has a wide range of compatibility: Windows 10 or above, MAC, Linux, IOS, Android can be plug and play. DX5 Lite uses 2nd generation 16 core XMOS XU216, USB supports up to PCM32bit768kHz, DSD512 native.

Inside the Box

  • 1 x TOPPING DX5 Lite
  • User Manual

1 Year Warranty

The TOPPING DX5 Lite Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Decoding Parameters
>USB: 32-Bit/768kHz PCM, DSD512 Native, DSD256(DoP).
>Opt/Coax: 24-Bit/192kHz PCM, DSD64(DoP).
>BT: AAC, SBC, APTX, APTX LL, APTX HD, LDAC.
RCA Parameters
>THD+N(A-Weighted): <0.00010%.
>THD@20Hz-20kHz: <0.0005%.
>SNR@1kHz: 125dB.
>Dynamic Range: 125dB.
>Frequency Response: 20Hz-20kHz(±0.1dB), 20Hz-40kHz(±0.3dB).
>Output Level: 2.1Vrms@0dBFS.
>Noise@A-weighted: <1.5uVrms.
>Channel Cross talk: -130dB.
>Channel Balance: 0.3dB.
>Output Impedance: 50Ω.
XLR Parameters
>THD+N(A-Weighted): <0.0009%.
>THD@20Hz-20kHz: <0.0002%.
>SNR@1kHz: 128dB.
>Dynamic Range: 128dB.
>Frequency Response: 20Hz-20kHz(±0.1dB), 20Hz-40kHz(±0.3dB).
>Output Level: 4.2Vrms@0dBFS.
>Noise@A-weighted: <2.0uVrms.
>Channel Cross talk: -140dB.
>Channel Balance: 0.3dB.
>Output Impedance: 50Ω.
6.35mm Headphone Output Parameters
>THD+N(A-Weighted): <0.00010%@32Ω.
>SNR: 125dB.
>DNR: 125dB.
>Output Level: 6Vpp(Low gain), 25Vpp(High gain).
>Noise@A-weighted: <1.7uVrms(low gain), <5.5uVrms(High-gain).
>Channel Cross talk: -114dB.
>Output Impedance: <0.1Ω.
>Output Power: 1800mWx2@32Ω, 1000mWx2@64Ω, 250mWx2@300Ω.
>Load Impedance: >8Ω.
4-Pin XLR Headphone Output Parameters
>THD+N(A-Weighted): <0.00010%.
>SNR: 125dB.
>DNR: 125dB.
>Output Level: 6Vpp(Low gain), 25Vpp(High gain).
>Noise@A-weighted: <1.7uVrms(low gain), <5.5uVrms(High-gain).
>Channel Cross talk: -114dB.
>Output Impedance: <0.1Ω.
>Output Power: 1800mWx2@32Ω, 1000mWx2@64Ω, 250mWx2@300Ω.
>Load Impedance: >8Ω.
