SMSL DS20

Portable DAC & Headphone Amplifier

  • Quad CS43131 DACs Ultra-Low Distortion
  • XMOS XU316 Supports 32bit/768kHz PCM and DSD256
  • Fully Balanced PLFC Headphone Amplifier
  • High-Precision Audio Clock Circuit
  • Dual USB Modes USB 2.0 and USB 1.1
  • Magnetic Backplate All-Metal Chassis
  • Audiophile-Grade Internal Components
  • Minimalist Design Compact and Rugged
Regular price ₩265,986
Sale price ₩265,986 Regular price

Symphony in Your Palm

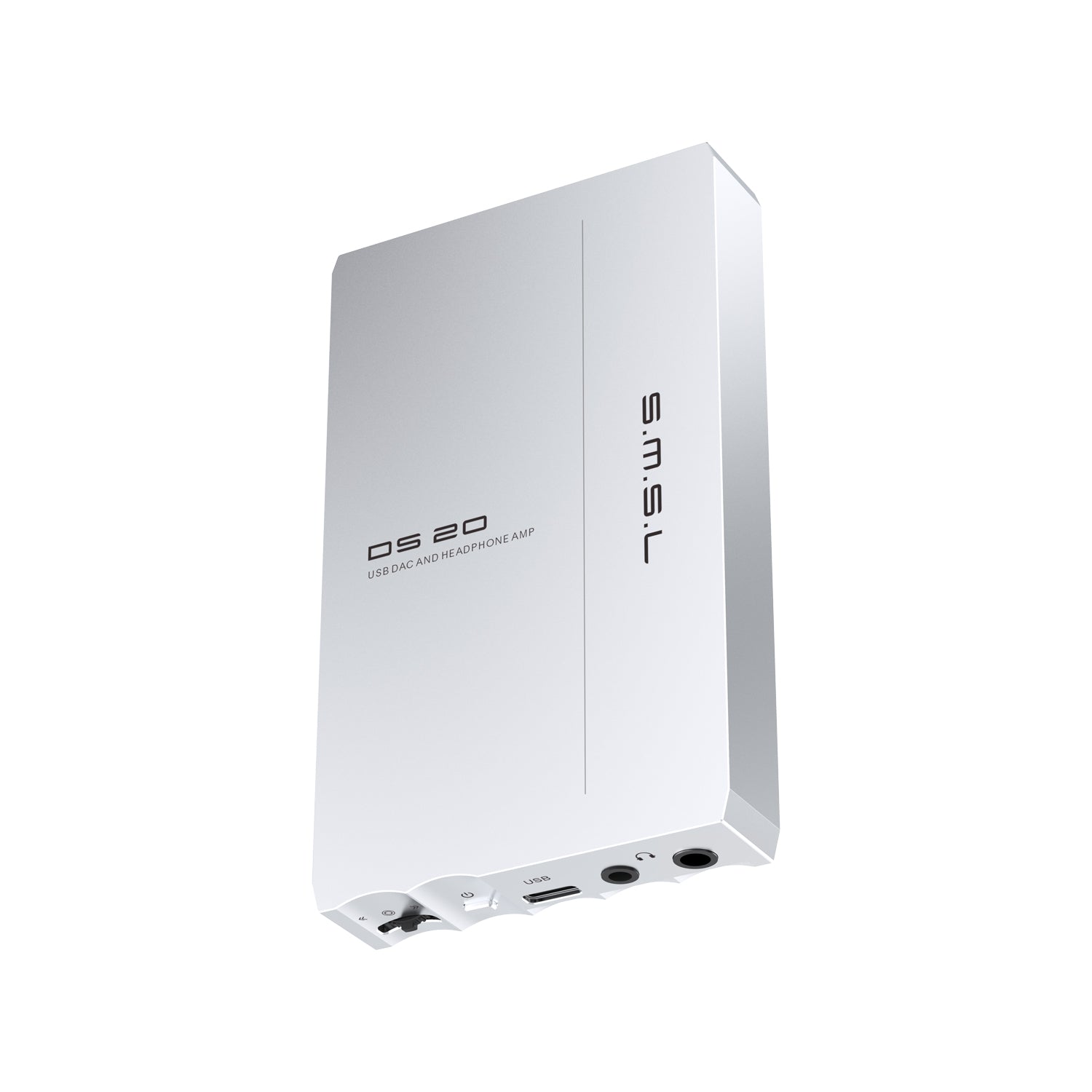

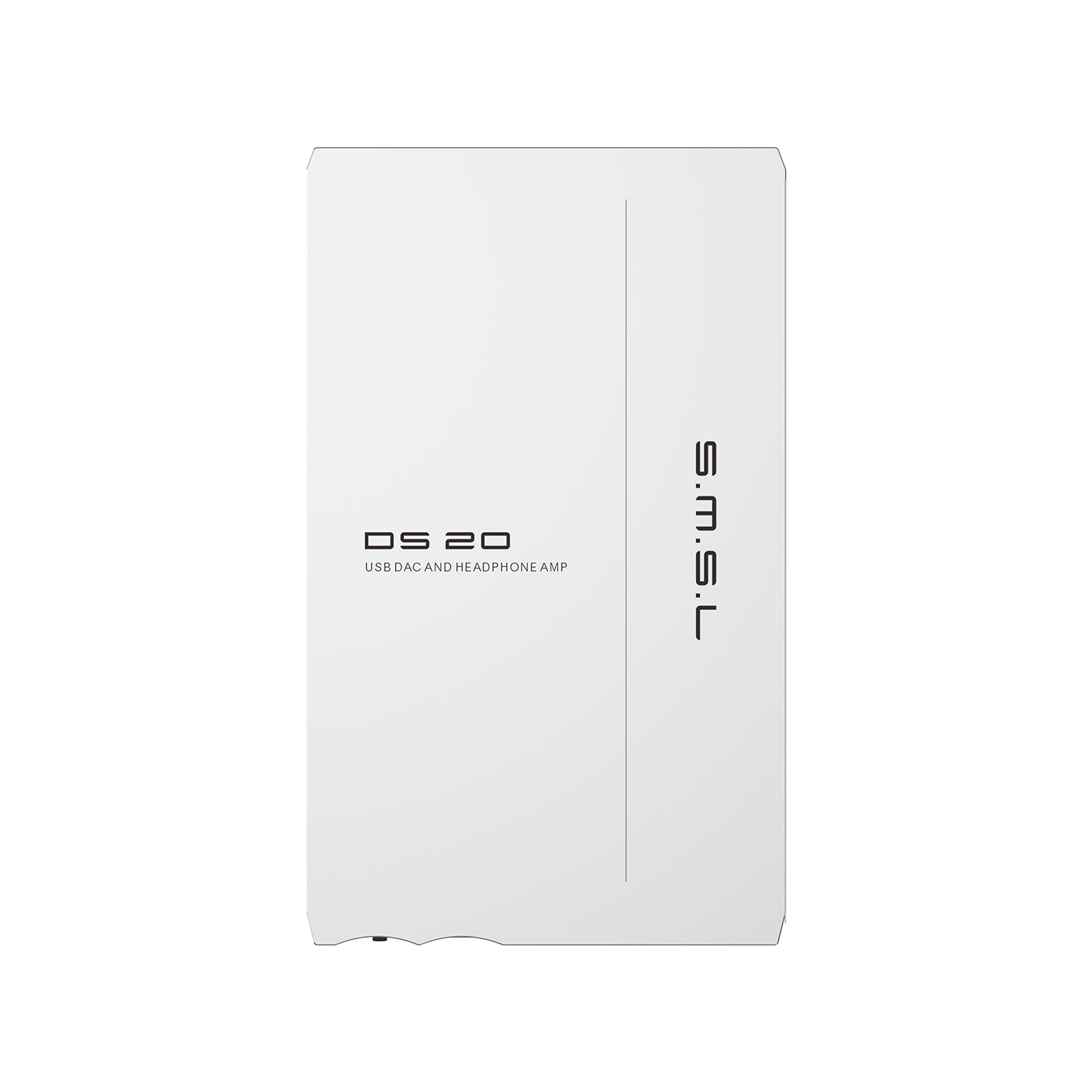

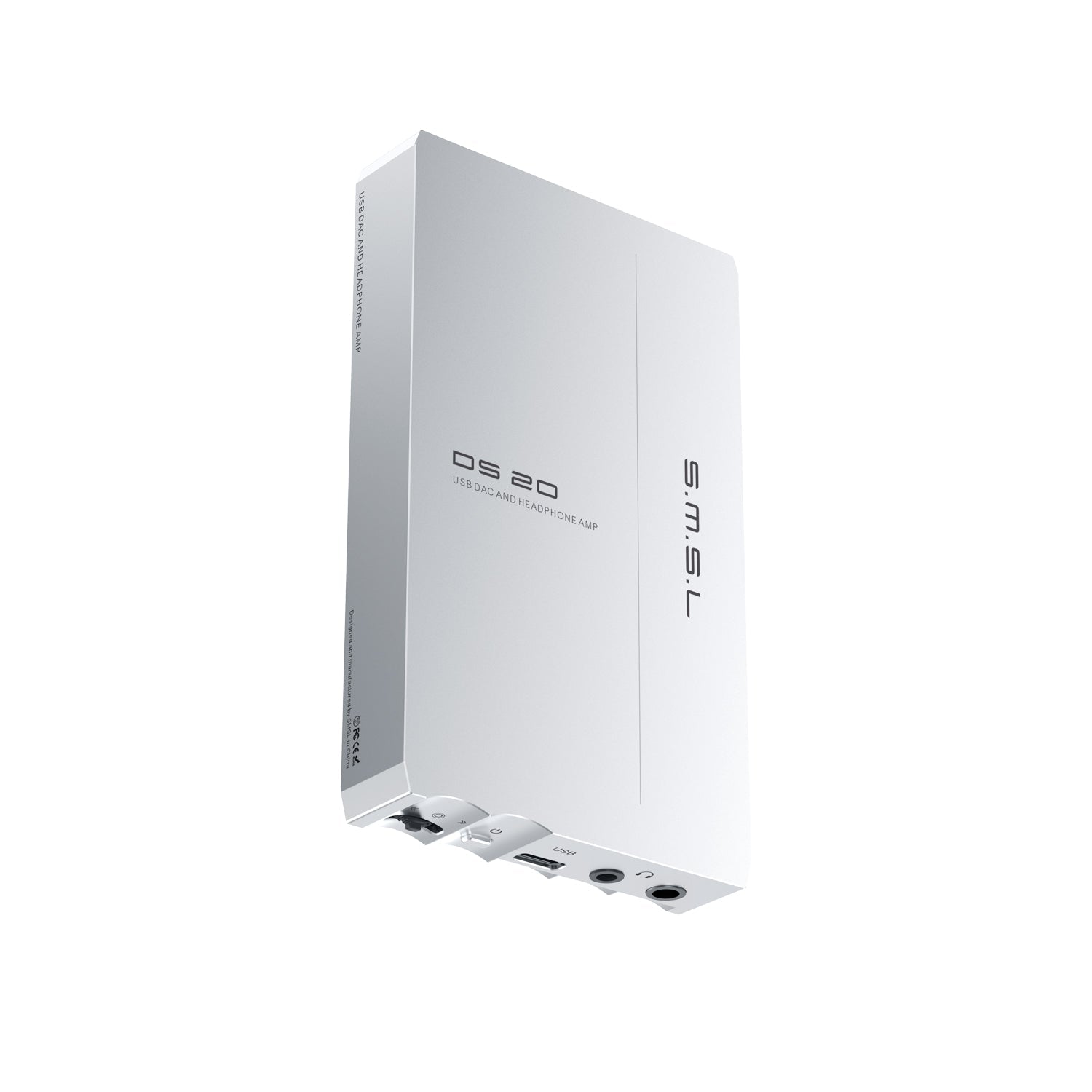

Crafted to impress both visually and acoustically, the SMSL DS20 combines professional-grade sound with elegant minimalist design. Black and silver metals meet in a striking form factor—sleek, solid, and ready to unleash audiophile-grade performance wherever you go.

Precision Decoding, Pure Listening

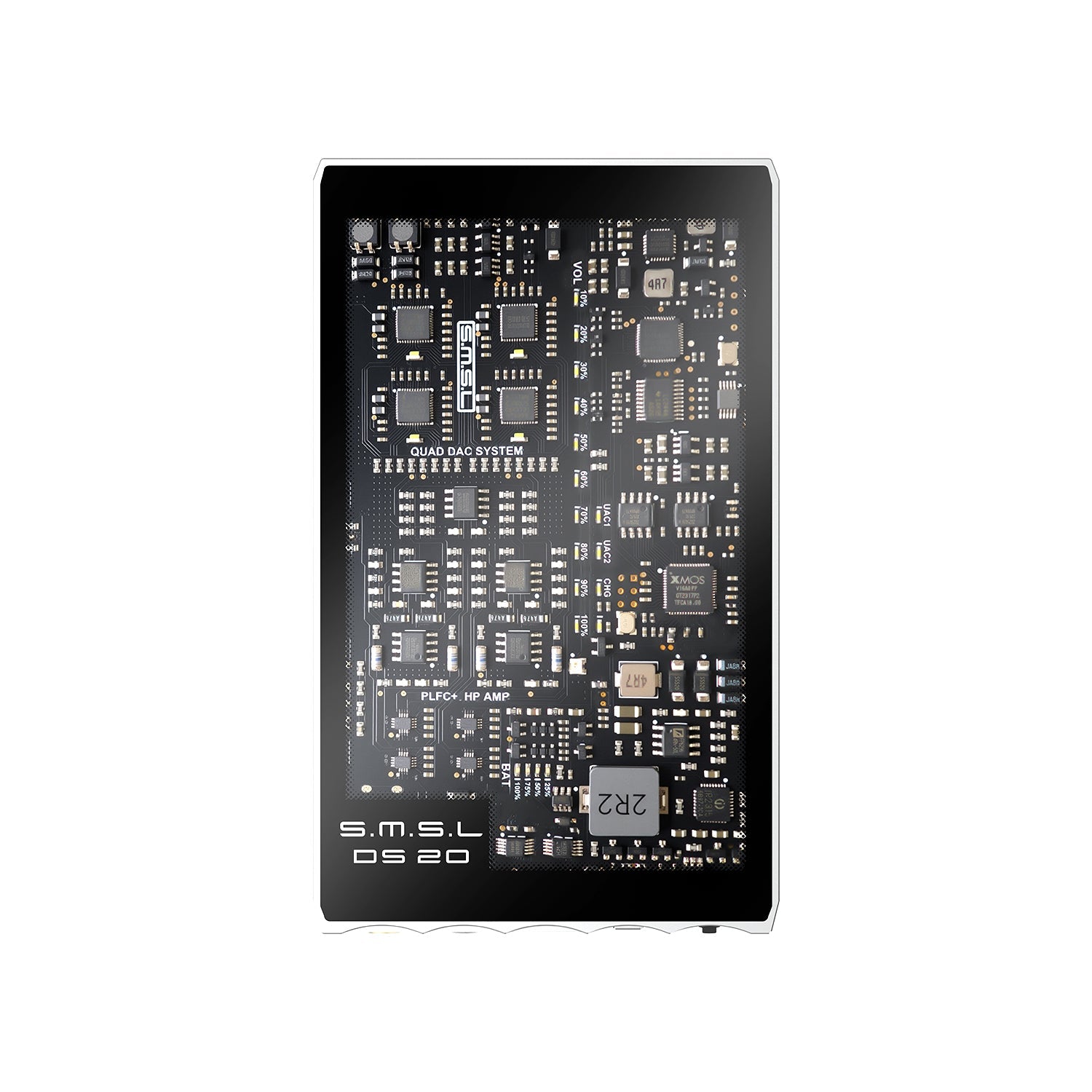

At the heart of the DS20 lies a powerful quad-CS43131 DAC configuration, delivering exceptional digital-to-analog conversion with ultra-low distortion and remarkable detail. Paired with the latest XMOS XU-316 USB processor, it supports high-resolution PCM up to 32-bit/768kHz and native DSD256. The fully balanced PLFC headphone amplifier design ensures clean, dynamic output—even for demanding high-impedance headphones—bringing out the full potential of your music with clarity and precision.

Audio Clock Circuit for Unrivaled Precision

A dedicated, high-performance audio clock circuit significantly reduces jitter, minimizes tonal distortion, and improves micro-detail retrieval. Enjoy a spacious soundstage with pinpoint imaging and immersive realism.

Dual USB Mode Compatibility

The DS20 offers flexible USB connectivity with dual-mode support. USB 2.0 ensures high-resolution audio playback on PCs and mobile devices, while USB 1.1 enables seamless plug-and-play use with gaming consoles like the PS5 and Nintendo Switch—no drivers, no hassle.

Magnetic Assembly, Built to Last

The DS20 features a magnetic backplate structure for seamless portability, while the all-metal chassis enhances durability and reduces interference. This minimalist Hi-Fi solution balances rugged construction with refined acoustics.

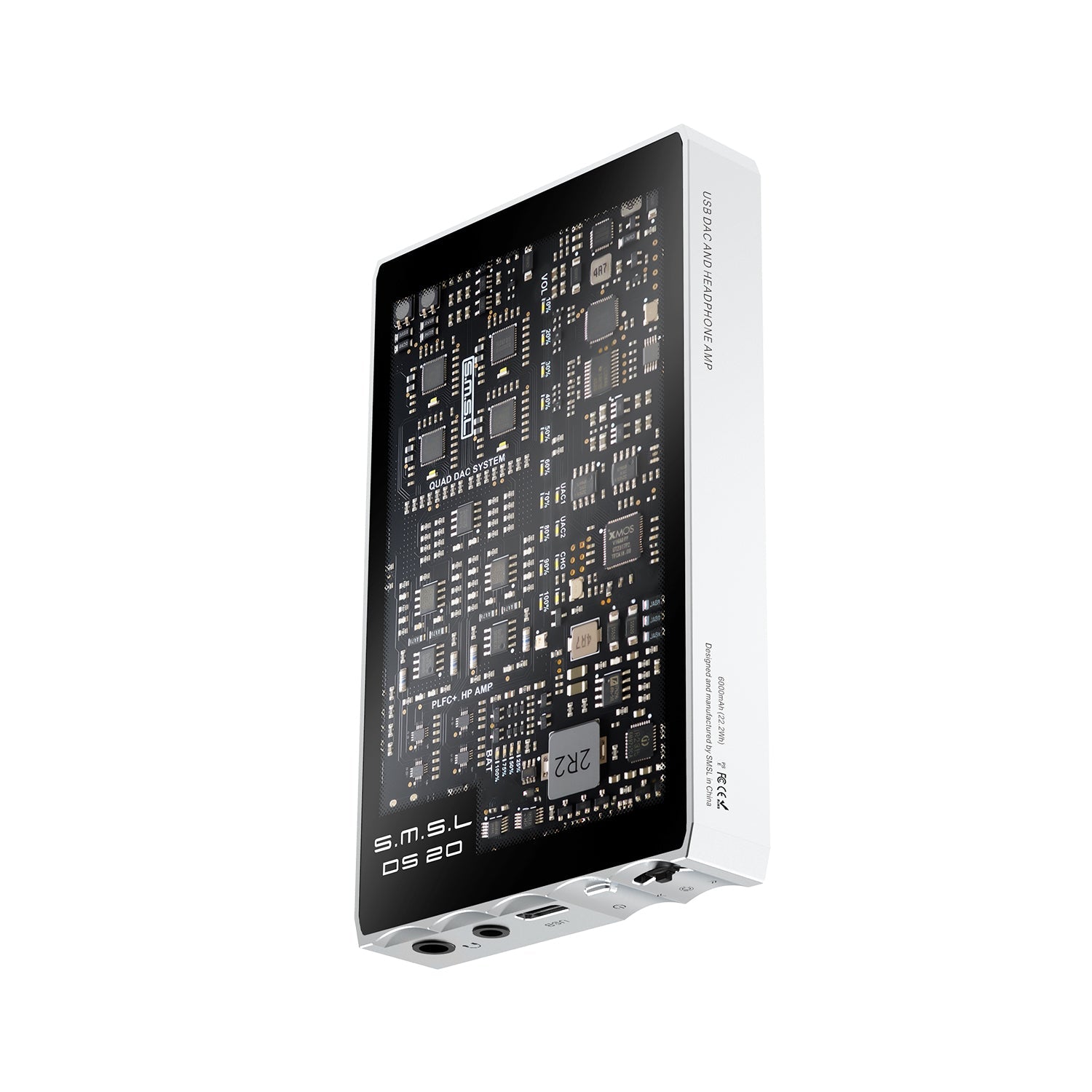

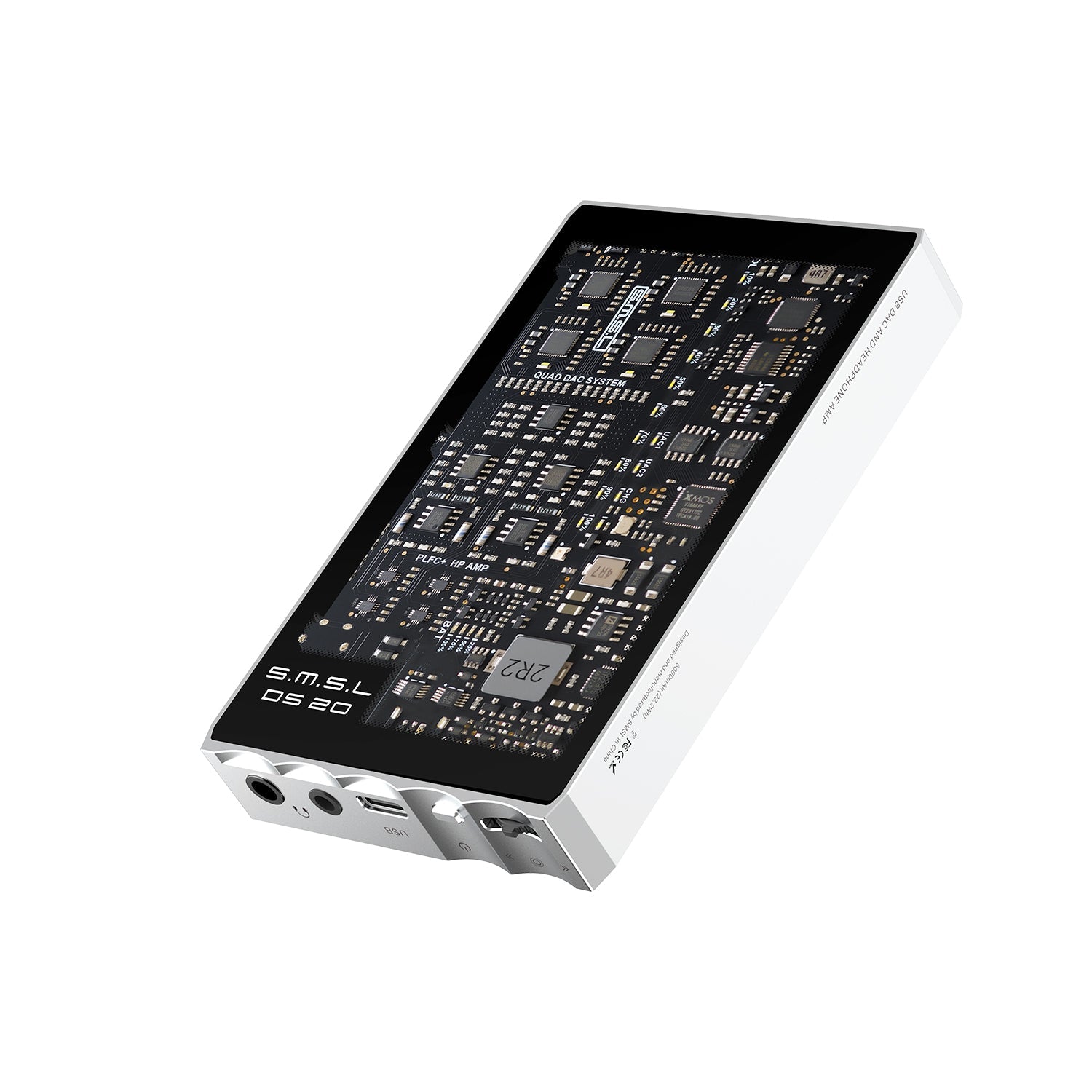

Audiophile-Grade Internal Components

Internally, every component is selected and tuned for high-fidelity playback. From capacitors to circuitry, the DS20 is engineered for listeners who demand true-to-source sound reproduction.

Redefining Portable Audio Standards

Hardcore engineering meets refined sonic performance—SMSL’s DS20 isn't just a DAC/AMP; it's your passport to high-resolution listening, anywhere, anytime.

Inside the Box

  • 1 x SMSL DS20
  • User Manual

1 Year Warranty

The SMSL DS20 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

USB Transmission
Asynchronous
Operating Systems
Windows 7/8/8.1/10/11, macOS, Linux, Android, iOS
USB Compatibility
SONY PS4 / PS5, Nintendo Switch
Bit Depth
1-bit, 16–32bit
Sampling Rates
PCM 44.1kHz–768kHz, DSD 2.8224MHz–11.2896MHz
Battery Capacity
6000mAh (22.2Wh)
Dimensions (W×H×D)
71×17×118.5mm
Weight
275g
Inputs
USB
Outputs

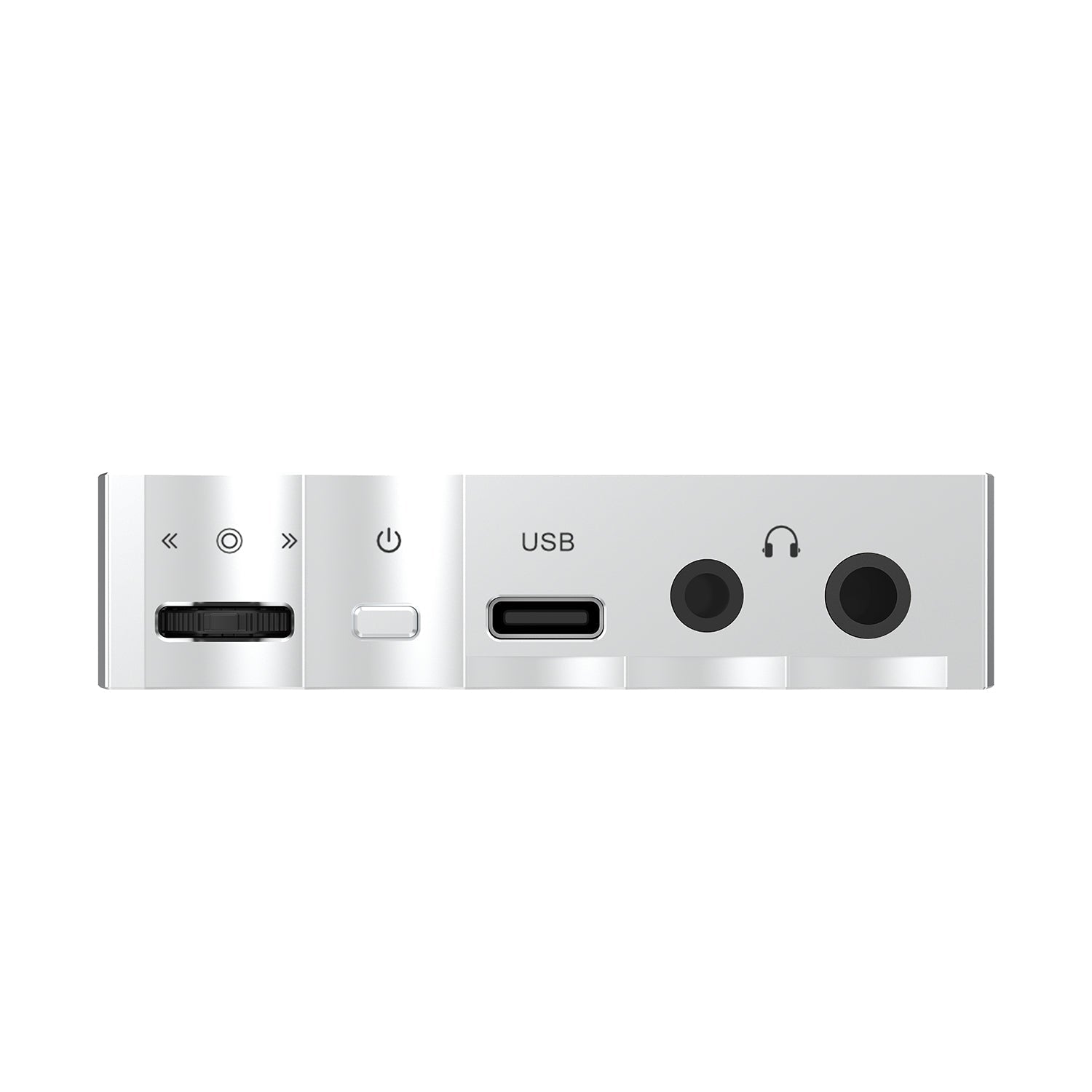

3.5mm Single-Ended Headphone Out, 4.4mm Balanced Headphone Out
Output Level
3.5mm 3Vrms, 4.4mm 6Vrms
Output Power (per channel)
16Ω 500mW, 32Ω 500mW, 64Ω 350mW, 150Ω 240mW, 300Ω 120mW, 600Ω 60mW
THD+N (Unweighted)
0.0002%
