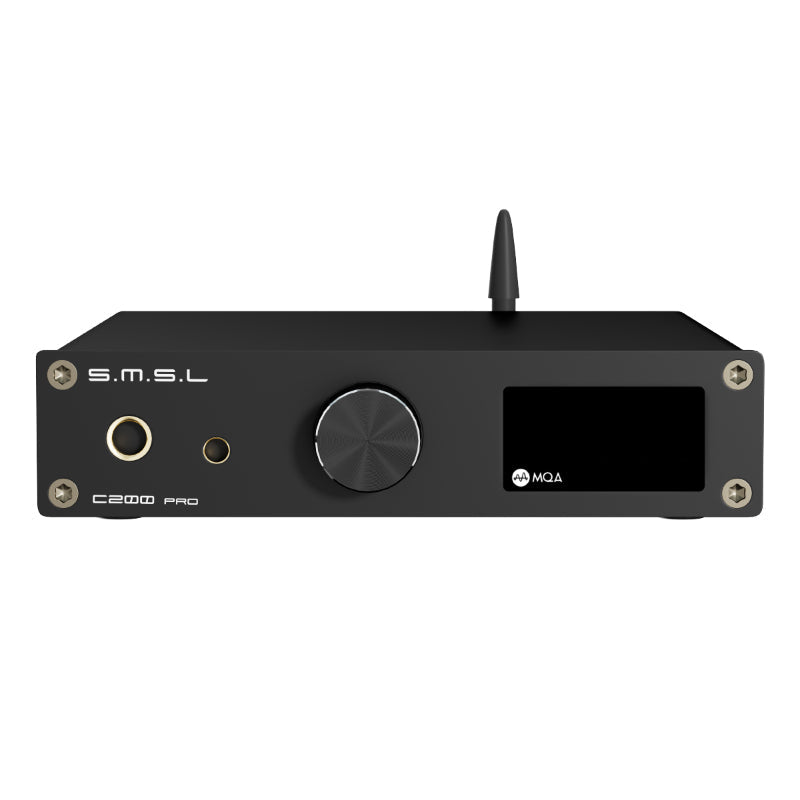

SMSL C200 Pro
SMSL C200 Pro
SMSL C200 Pro

SMSL C200 Pro

DAC Headphone Amplifier

  • 3rd Generation XMOS XU-316
  • Built-in Power Supply
  • Qualcomm Bluetooth Chip
  • Audio Clock Processing Circuit
  • Newest DAC Chips ES9039Q2M
Regular price ₩278,600
Sale price ₩278,600 Regular price

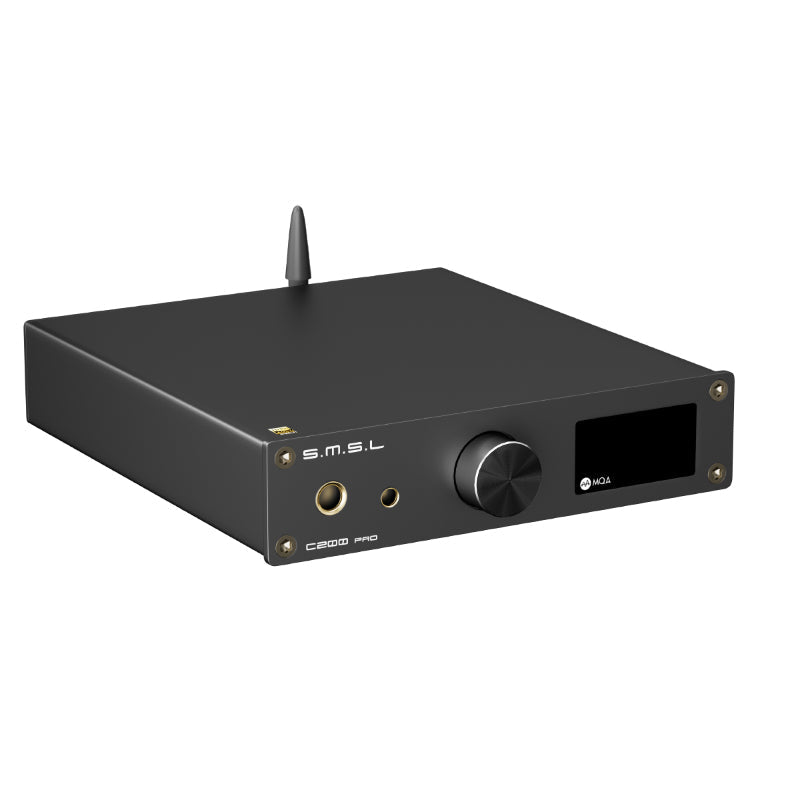

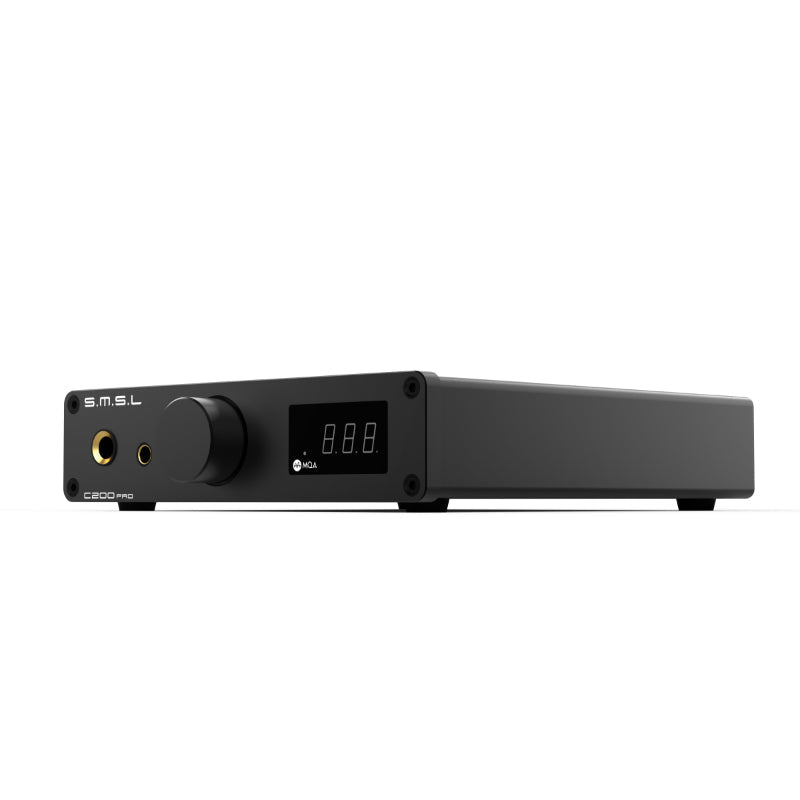

C200Pro: Mini Compact Desktop Amplifier

Experience powerful audio in a mini size design. With USB, Optical, Coaxial, and Bluetooth inputs and outputs for 6.35mm, 4.4mm, TRS, and RCA, plus a full-function remote control, it's perfect for any desktop setup.

Versatile Multi-Platform Connectivity

Supports multiple platforms including Windows, iOS, Android, Mac OS, Linux, PS4, PS5, Switch, and more. In USB 1.1 mode, all USB devices work without a driver (max sampling rate: 96kHz), while USB 2.0 mode requires a driver installation on Windows and supports higher sampling rates. Note: Switching between modes requires a device restart.

Bluetooth Input: Premium Wireless Audio

Featuring a Qualcomm Bluetooth chip and Bluetooth 5.1, the SMSL C200Pro supports LDAC, aptX-HD, aptX, SBC, and AAC. Enjoy superior wireless sound quality with longer transmission distance, ensuring your audio experience is both high fidelity and stable.
Detailed specs include:
LDAC: 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD: 24bit/48kHz (576kbps)
aptX: 16bit/44.1kHz (352kbps)
SBC: 16bit/44.1kHz (328kbps)
AAC: 16bit/44.1kHz (320kbps)

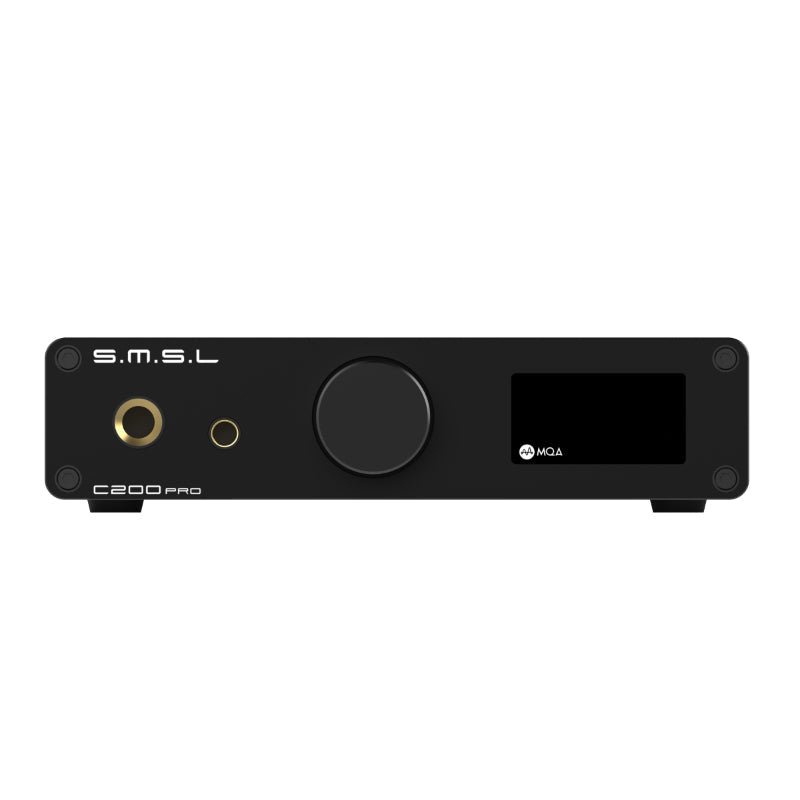

6.35/4.4mm Headphone Jack

C200Pro features dedicated 6.35mm and 4.4mm headphone jacks with a built-in amplifier gain of +9.5dB. It delivers tailored output power for various headphone impedances—16Ω: 3W x2; 32Ω: 1.5W x2; 150Ω: 350mW x2; 300Ω: 170mW x2; and 600Ω: 85mW x2—ensuring dynamic and precise audio performance.

High-End Audio Processing & Conversion

The 3rd Generation XMos XU-316 is a high-end USB audio master solution by XMOS, engineered for ultra-high specification audio decoding. It supports PCM playback up to 32bit/768kHz and DSD playback up to DSD512. Complementing this, the ESS ES9039Q2M is the next-generation digital-to-analog converter from ESS Technology. It natively decodes 32bit/768kHz PCM and DSD512 formats, boasting a dynamic range of up to +130dB, with THD as low as -126dB and THD+N of -120dB, ensuring unparalleled audio performance.

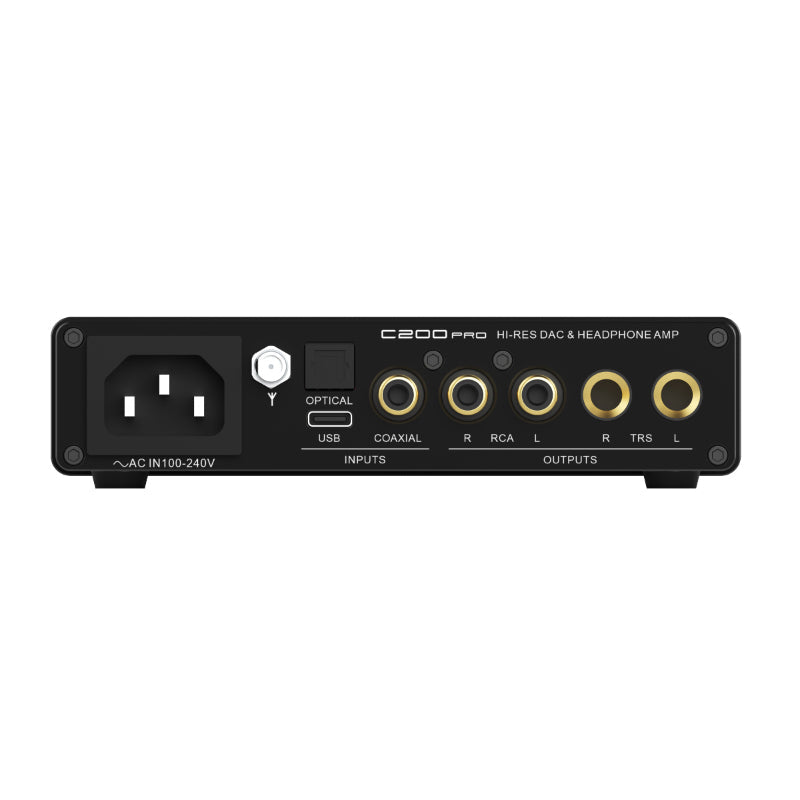

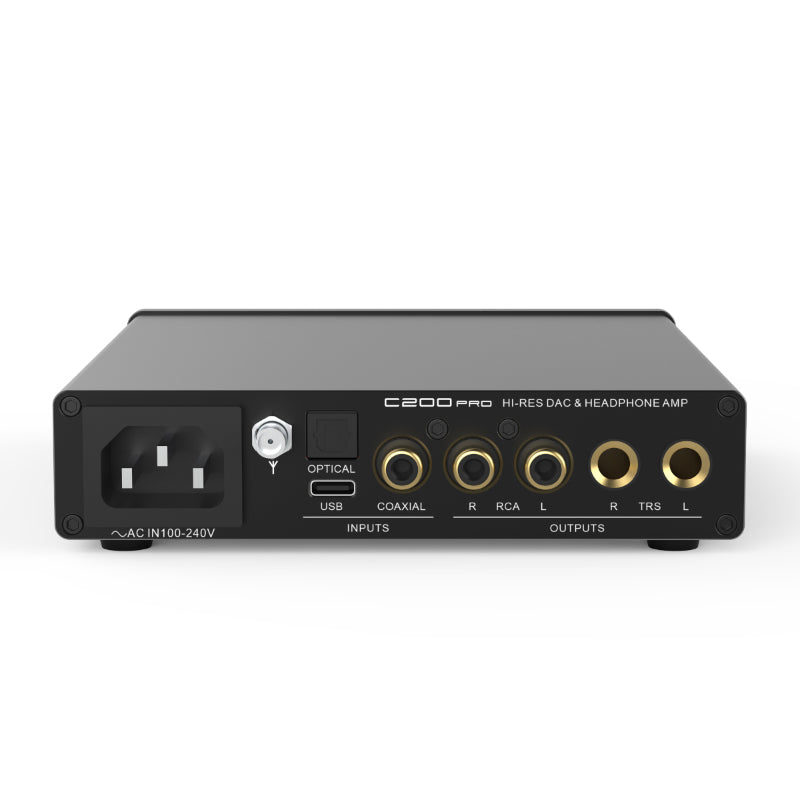

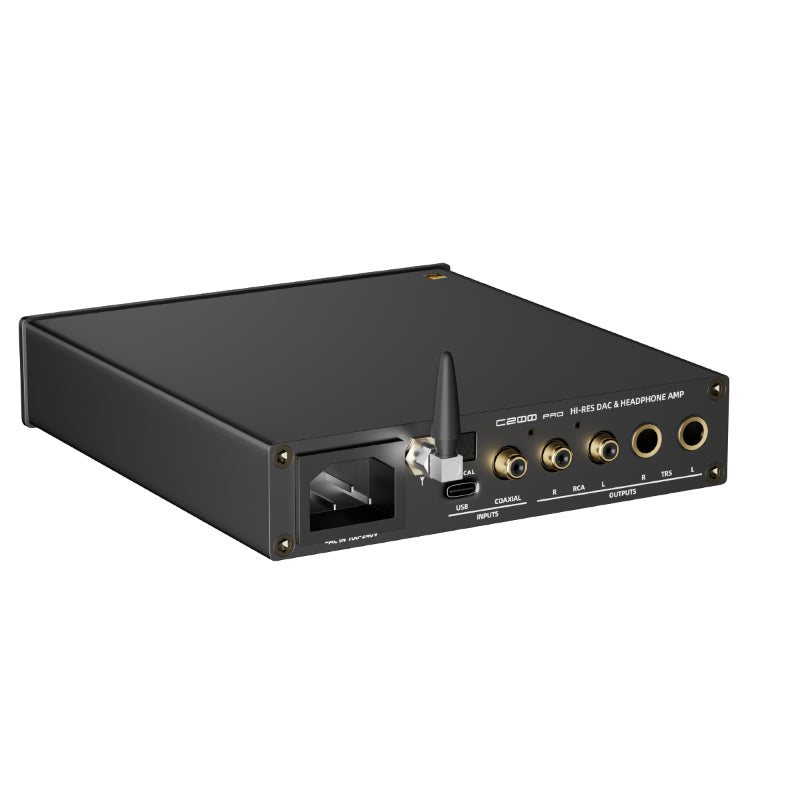

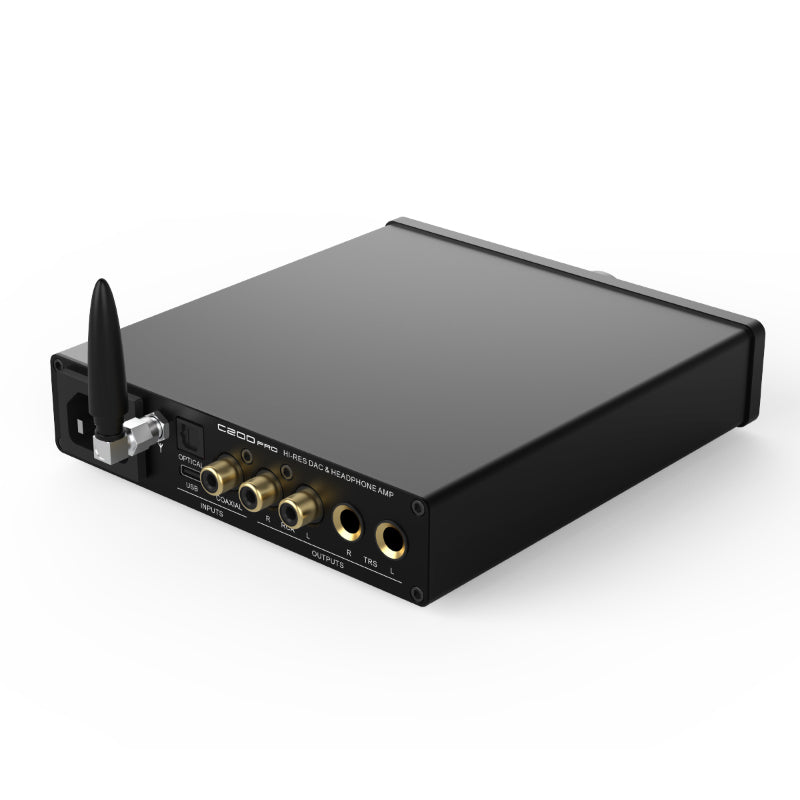

High-Quality Gold-Plated Interface

C200Pro features fully gold-plated input/output interfaces, effectively reducing contact resistance and energy loss for high-fidelity audio transmission. It also improves the spacing between headphone jack holes for easier plugging and unplugging compared to previous generations.

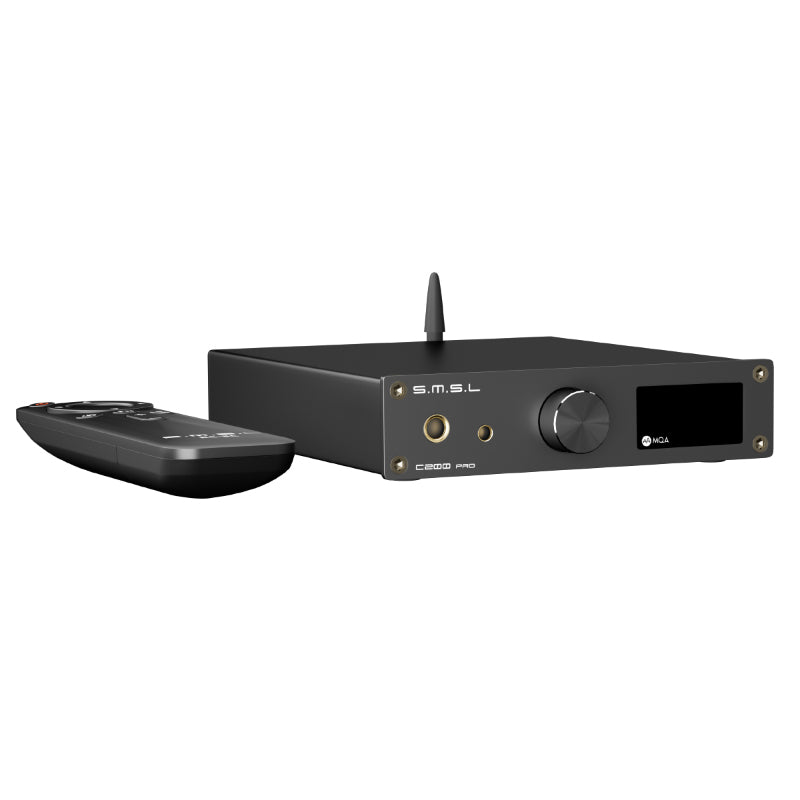

Remote Control: Full-Function Convenience

The C200Pro comes with a full-function remote control for effortless operation. It allows you to power on/off, switch functions, adjust volume, and turn off the screen remotely—making your audio experience more user-friendly. Refer to the manual for detailed operation.

Inside the Box

  • C200 Pro x1
  • Remote Control x1
  • Bluetooth Antenna x1
  • USB Cable x1
  • AC Power Cord x1
  • User Manual x1
  • Warranty Card x1

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Technical Details

Inputs
USB, Optical, Coaxial, Bluetooth
Outputs
6.35mm Headphone, 4.4mm Headphone, TRS, RCA
Output Amplitude
TRS - 5Vrms; RCA - 2.5Vrms
HPA Output Power
16Ω – 3W x2
32Ω – 1.5W x2
150Ω – 350mW x2
300Ω – 170mW x2
600Ω – 85mW x2
HPA Gain
+9.5dB
THD+N
Line Out – 0.00006% (–123.5dB)
Headphone Out – 0.00009% (–120dB)
Dynamic Range & SNR
TRS – 129dB
RCA – 126dB
HPA – 125dB
Output Impedance
Headphone Output – Near 0Ω
Line Output – 100Ω
USB Transmission
USB 1.1 & USB 2.0 (Asynchronous)
USB Compatibility
Windows 7/8/8.1/10/11 (Need driver), iOS, Android, Mac OS, Linux (Driverless)
Bit Depth
USB: 1bit, 16–32bit
Optical/Coaxial: 1bit, 16–24bit
USB Sampling Rate
PCM: 44.1–768kHz
DSD: 2.8224–22.5792MHz
Optical/Coaxial Sampling Rate
PCM: 44.1–192kHz
DSD: DSD64 (DoP)
Bluetooth Specifications (5.1)
LDAC – 24bit/96kHz (990/660/330kbps)
aptX-HD – 24bit/48kHz (576kbps)
aptX – 16bit/44.1kHz (352kbps)
SBC – 16bit/44.1kHz (328kbps)
AAC – 16bit/44.1kHz (320kbps)
Power Consumption
<25W
Standby Power
<0.5W
Size
139 x 32 x 147.5 mm (WxHxD)
Weight
510g (1.12 lbs)
