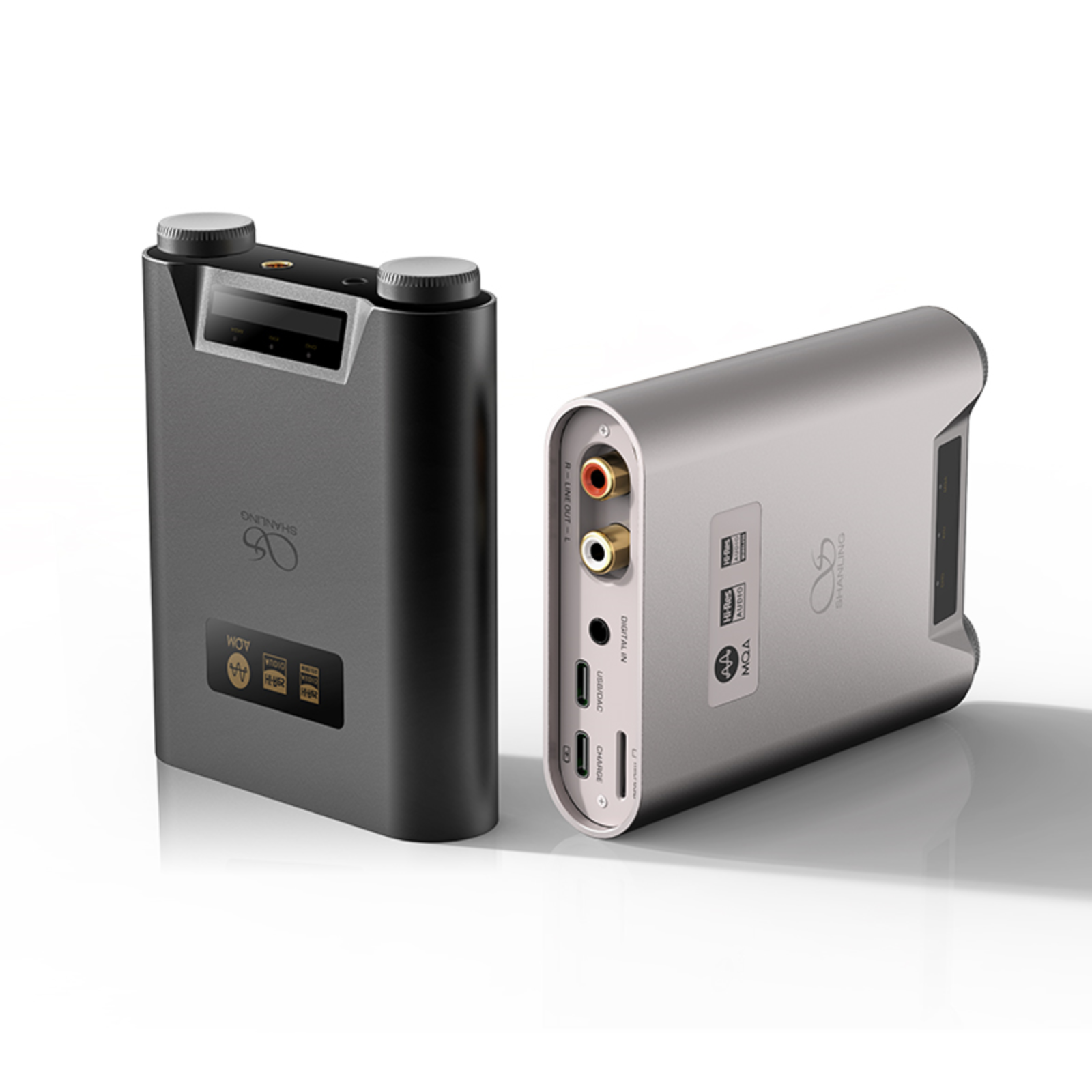

Shanling H5

Full-scene Hi-Res Decoder Amplifier

    3500mAh high-performance battery & QC3.0 18w fast charging
    Bluetooth 5.0 input with LDAC, AAC and SBC Support
    AK4493EQ DAC chips*2, OPA 1612 & LTA8092
    MQA Full Decoder & Support Up to DSD512
    Three-step Gain Frequency Compensation
Black
Titanium
Regular price ₩524,117
Sale price ₩524,117 Regular price

Stable as a Mountain From Inside to Outside

The H5's case is made of aircraft-grade magnesium-aluminum alloy, and it weighs only 270.4g. The smooth touch and good grip are balanced. Audio specifications are supported up to 768kHz/32bit, while plug-in memory cards support up to 2TB. It's a product full of sincerity brought by Shanling. You can also use shanling's special Eddict Player APP to control it conveniently.

Heart of the Tiger

The H5 is equipped with two AKM's AK4493EQ DAC chips, which have an SNR >121dB, a Sampling Rate 768kHz/32bit, and a THD+N diminished to a mere 0.0004%. Not only that, but it also has a third-generation USB decoding chip, XU316, which supports DSD512 decoding and MQA Full Decoder.

New Op-amp Audio Architecture

The H5 uses the latest op-amp audio architecture, loaded with two TPA6120A2 op-amp chips from TI, which allows for a smoother sound and facilitates the shaping of a wider soundstage. It uses OPA1612 op-amps, third-generation FPGA technology, and KDS femtosecond low-phase noise oscillator. These allow the H5 digital signal transmission on the way to maintain high accuracy and effectively reduce jitter.

Multi-Device Support And Long Battery Life

Equipped with Bluetooth 5.0, the H5 supports LDAC, SBC, and AAC, with stable and low-latency transmission. It can link tablets, PS5, switch, CD player, and bookshelf audio. H5's charging port month data port is separated, so there is no need to get power from the front end. The H5 is equipped with a 3500mAh high-performance battery with an exclusive PMU chip to manage power and QC3.0 18w fast charging.

Three-step Gain Frequency Compensation, Colorful Indicators

Shanling has equipped the H5 with both 3.5mm and 4.4mm jacks and supports high, medium, and low gain frequency compensation. The single-ended output power is up to 227mW@32Ω and the balanced output is up to 840mW@32Ω. To easily identify different Sampling Rates, the H5 has different indicator lights. When using it, you can easily understand the different modes by the different colors of the lights.

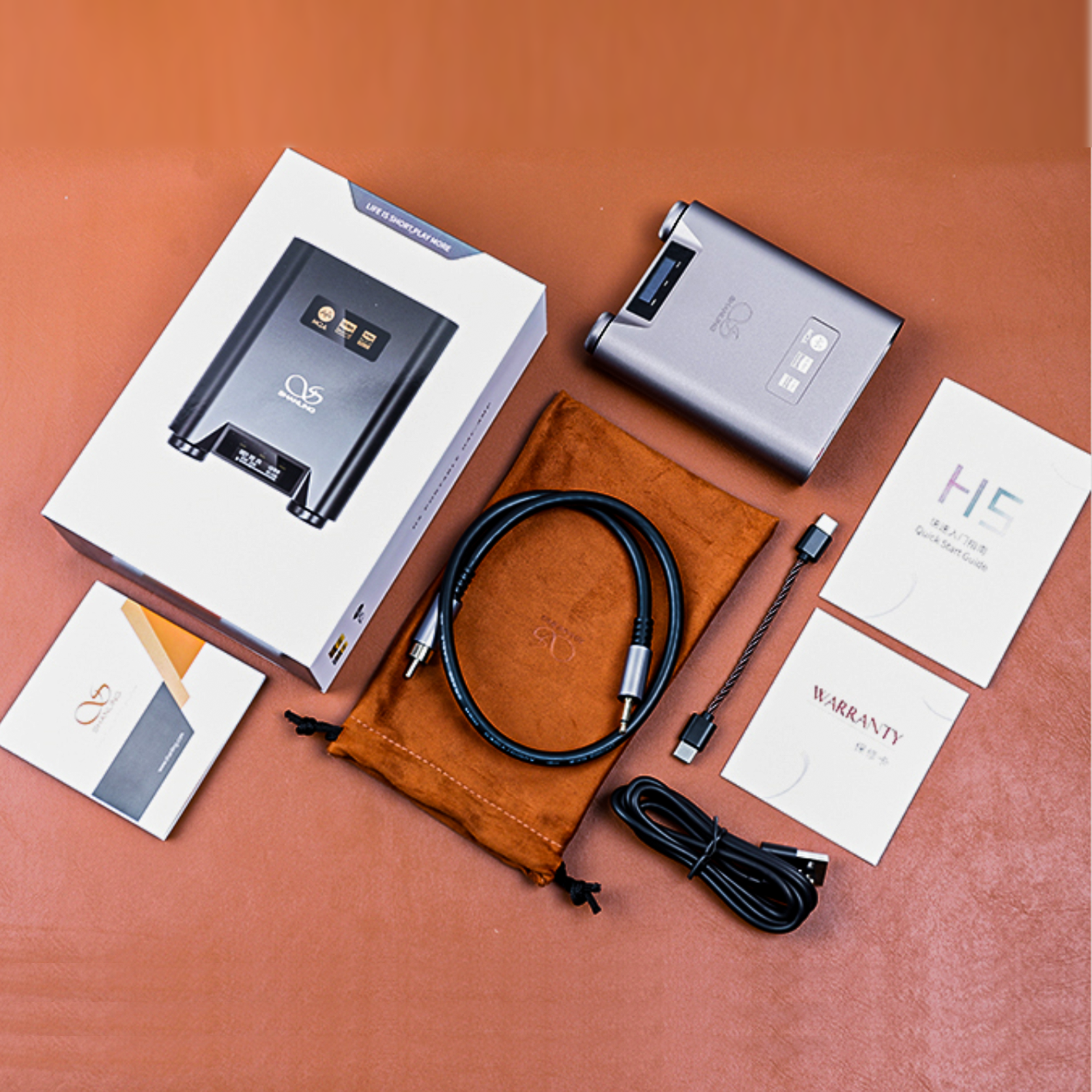

Inside the Box

  • 1 x Shanling H5
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Technical Details

Size
102*85*25(mm)
Weight
270.4g
Screen
0.87’OLED
Audio Format Support
ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8 / OPUS / DSD (".iso", ".dsf", ".dff") *dst not supported
MQA Support
MQA Full Decoder
Decoding Output
768kHz/32 bit, DSD512
MicroSD Output
384 KHz/32 bit, DSD256
Frequency Compensation
High, Middle, Low
DAC chips
AK4493SEQ*2
Digital Filters
Six different types of filters
Bluetooth
5.0
Bluetooth Reception Support
LDAC/SBC/AAC
(*Bluetooth can only receive, not support transmit.)
Output power
PO: 2.7V@32Ω(227mW@32Ω)
BAL: 5.19V@32Ω(840mW@32Ω)
Frequency
20Hz-40kHz(-0.7dB)
THD+N
PO: 0.0014%@32Ω(A-Weight@0.3V)
BAL: 0.0004%@32Ω(A-Weight@1V)
Dynamic
PO: 118dB@32Ω(A-Weight)
BAL: 121@32Ω(A-Weight)
Channel
PO: 80dB@32Ω
BAL: 105dB@32Ω
SNR
PO: 118dB@32Ω(A-Weight)
BAL: 121@32Ω(A-Weight)

Processing Time
