Quloos QLS MC01/MC01se

HiFi Portable USB DAC/AMP

    Flagship-Grade Dual DAC Chipset
    high-power amplification chips
    high-end audiophile-grade components
    OLED Display
MC01
MC01SE
Grey
Red
Regular price ₩355,078
Sale price ₩355,078 Regular price

Flagship-Grade Dual DAC Chipset

Quloos has designed the MC01/MC01SE with a premium Dual DAC Chipset. The DAC/AMP comes equipped with two flagship-grade CS43131 DAC chips that support high-res 32-Bit/384kHz PCM and native DSD256 signal decoding. Be ready to experience your favorite music with all-new clarity and details with the Quloos MC01/MC01SE.

high-power amplification chips

Quloos has featured high-power amplification chips on the MC01/MC01SE portable DAC/AMPs. They work flawlessly with the premium DAC arrangement delivering a powerful output. MC01 has got an output rating of 260mW@32Ω of load. It will be able to easily drive most IEMs in the market without breaking a sweat.

high-end audiophile-grade components

In order to get the best performance out of the MC01/MC01SE, Quloos has designed them with high-end audiophile-grade components on the circuitry. This includes ultra-low jitter crystal oscillators, ultra-low noise, and ultra-high PSRR chips, Philips electrolytic capacitors, Panasonic capacitors, etc. With the Quloos MC01/MC01SE, an amazing sound experience awaits for the users.

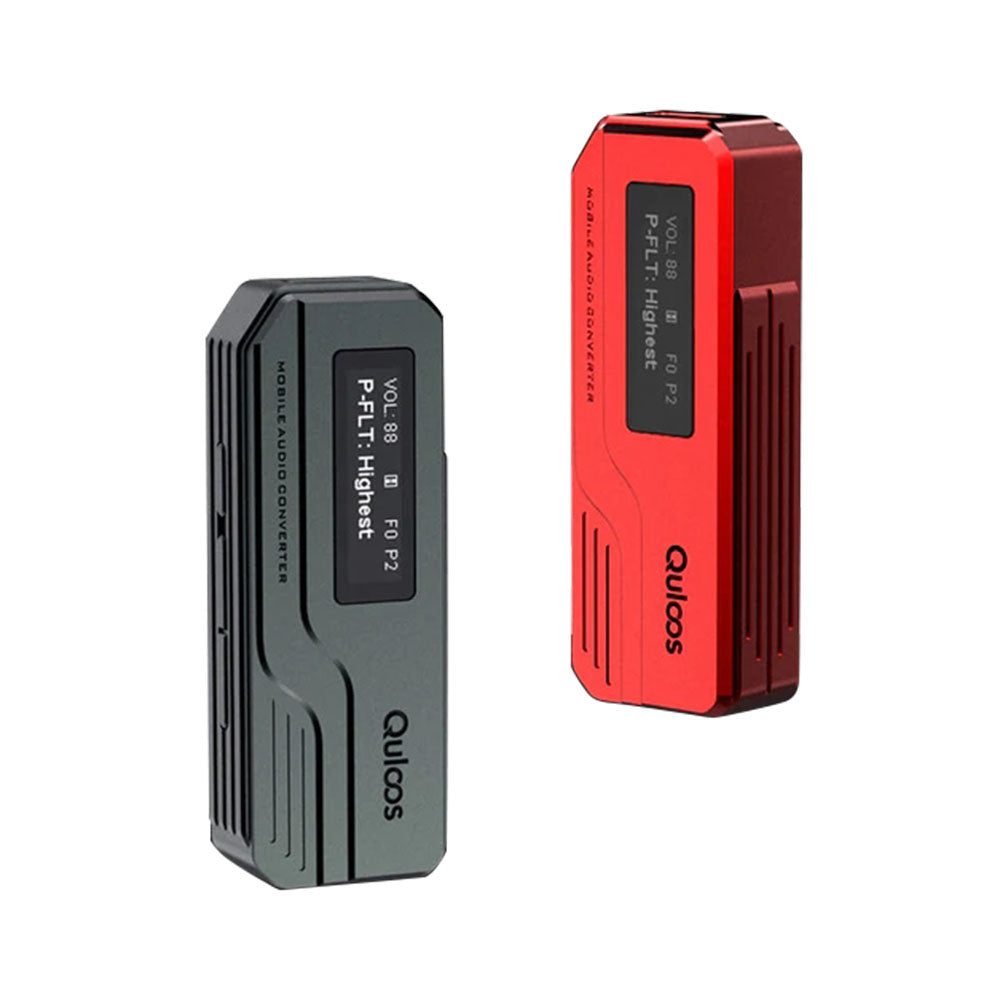

OLED Display

Quloos MC01/MC01SE comes with an exquisite finish. The device has got a premium finish with CNC machined aluminum alloy chassis. They feature an OLED display that shows different functions and settings on the device.

Note: The difference between MC01 and MC01SE is the headphone output port. MC01 supports both balanced and single-ended headphones with 3.5mm and 4.4mm headphone outputs while the MC01SE supports only single-ended headphones with a 3.5mm output.

Inside the Box

  • 1 x Quloos QLS MC01/MC01se
  • User Manual

1 Year Warranty

The Quloos QLS MC01/MC01se Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

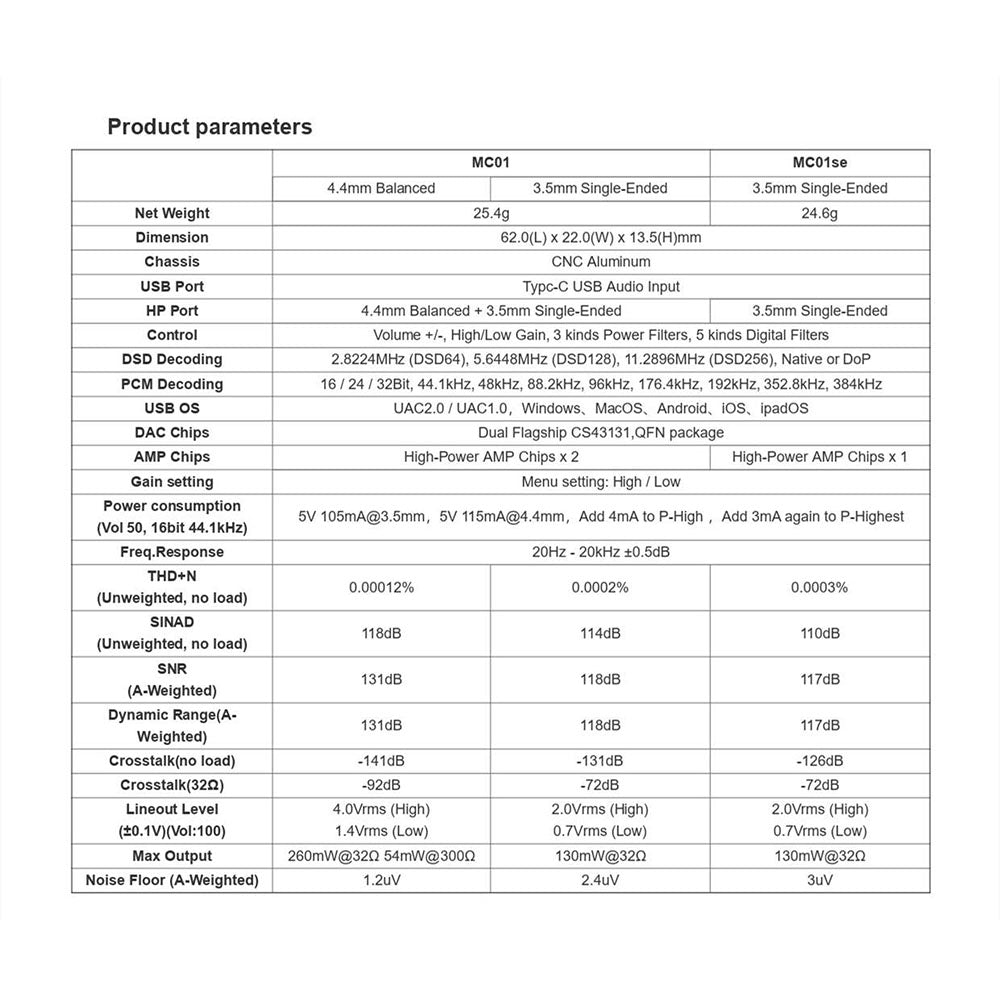

Technical Details

MC01(4.4mm Balanced,3.5mm Single-Ended)
Net Weight:25.4g
Dimension:62.0(L)x22.0(W)x13.5(H)mm
Chassis:CNC Aluminum
USB Port :Typc-C USB Audio Input
HP Port :4.4mm Balanced + 3.5mm Single-Ended
Control:Volume +/-, High/Low Gain, 3 kinds Power Filters, 5 kinds Digital Filters
DSD Decoding : 2.8224MHz (DSD64), 5.6448MHz (DSD128), 11.2896MHz (DSD256), Native orDoP
PCM Decoding : 16/24/32Bit44.1khz.4kh88.2khz.6khz.176.4khz.192khz.352.khz384kh2
USB OS :UAC2.0/UAC1.0, Windows. MacOS. Android. iOS. IpadOS
DAC Chips:Dual Flagship CS4313LQFN package
AMP Chips:High-Power AMP Chips x 2
Gain setting:Menu setting: High / Low
Power consumption (Vol 50,1 Gbit 44.1 kHz): 5V 105mA@3.5mm, 5V 115mA@4.4mm< Add 4mA to P-High , Add 3mA again to P-Highest
Freq.Response: 20Hz-20kHz ±0.5dB
THD+N(Unweighted, no load):
0.00012%
0.0002%
SINAD(Unweighted, no load) :
1180B
114dB
SNR(A-Weighted):
131dB
118dB

Dynamic Range(A* Weighted):
131dB
118dB
Crosstalk(no load):
-141dB
-131dB
Crosstalk(32Ω) :
92dB
-72dB
Lineout Level(40.1V)(Vol:100):
4.0Vrms (High)
t4Vrms (Low)
2.0Vrms (High)
0.7Vrms (Low)
Max Output:
260mW@32Q 54mW@300Q
130mW@32fi
Noise Floor (A-Weighted):
1.2uV
2.4uV
MC01se (3.5mm Single-Ended)
Dimension:62.0(L)x22.0(W)x13.5(H)mm
Chassis:CNC Aluminum
USB Port :Typc-C USB Audio Input
Control:Volume +/-, High/Low Gain, 3 kinds Power Filters, 5 kinds Digital Filters
DSD Decoding : 2.8224MHz (DSD64), 5.6448MHz (DSD128), 11.2896MHz (DSD256), Native orDoP
PCM Decoding: 16/24/32Bit44.1khz.4kh88.2khz.6khz.176.4khz.192khz.352.khz384kh2 USB OS :UAC2.0/UAC1.0, Windows. MacOS. Android. iOS. IpadOS
DAC Chips:Dual Flagship CS4313LQFN package
Gain setting:Menu setting: High / Low
Power consumption (Vol 50,1 Gbit 44.1 kHz): 5V 105mA@3.5mm, 5V 115mA@4.4mm< Add 4mA to P-High , Add 3mA again to P-Highest
Freq.Response: 20Hz-20kHz ±0.5dB
Net Weight:24.6g
HP Port:3.5mm Single-Ended
AMP Chips:High-Power AMP Chips x 1
THD+N(Unweighted, no load):0.0003%
SINAD(Unweighted, no load) :110dB
SNR(A-Weighted):117dB
Dynamic Range(A* Weighted):117dB
Crosstalk(no load):-126dB
Crosstalk(32Ω):72dB
Lineout Level(40.1V)(Vol:100):
2.0Vrms (High)
0.7Vrms (Low)
Max Output:130mW@32Q
Noise Floor (A-Weighted):3uV
