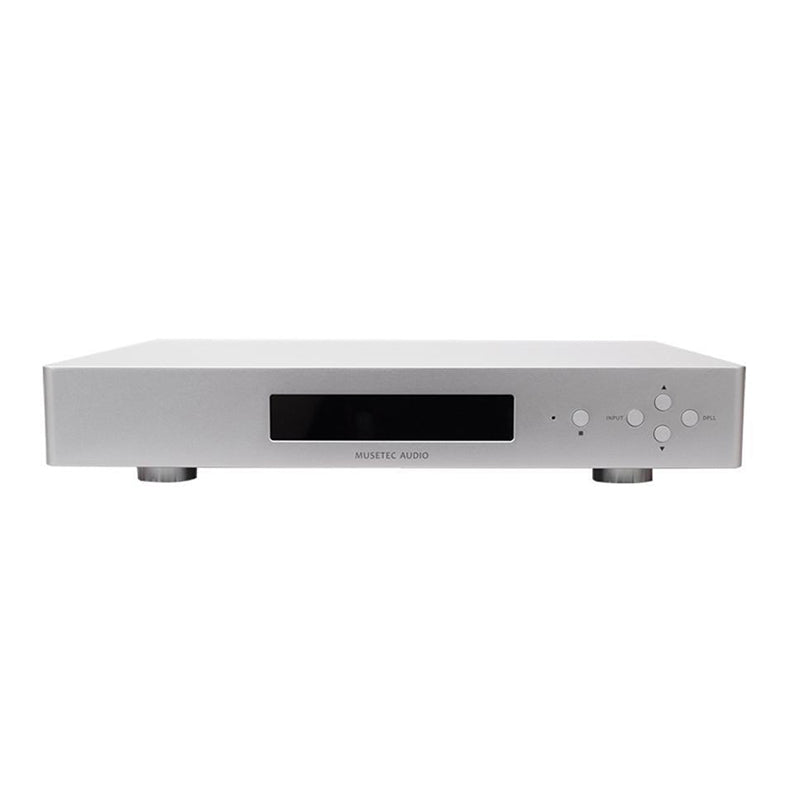

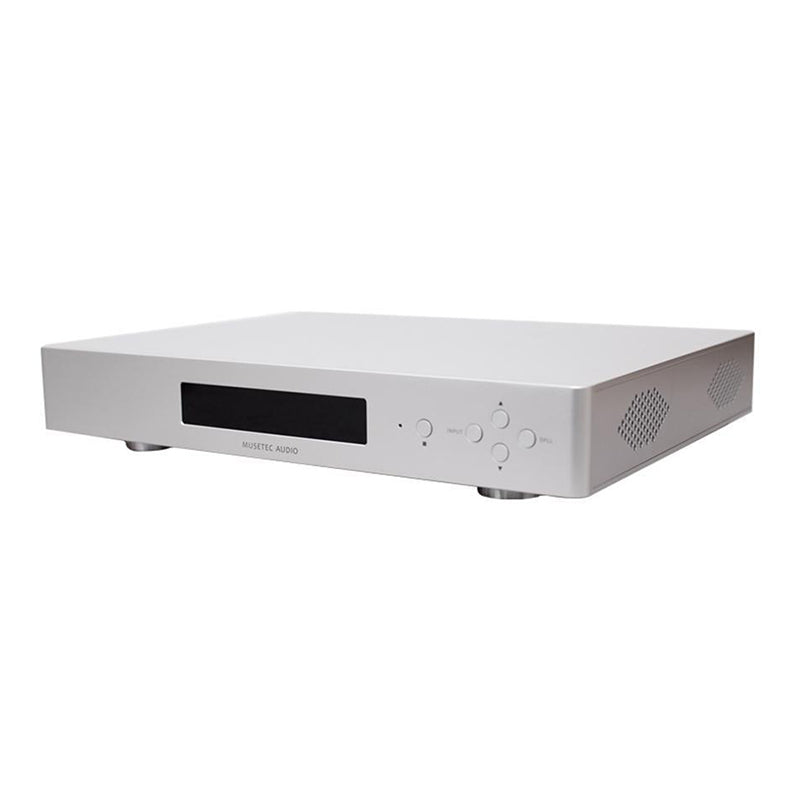

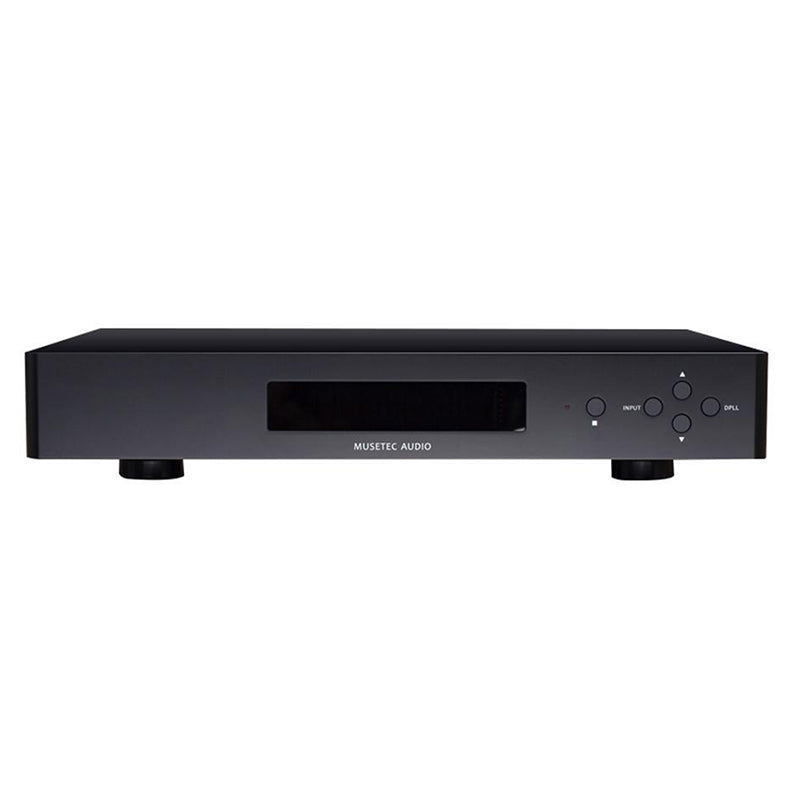

L.K.S Audio MH-DA005

ES9038 Pro x 2 DAC Coaxial OPT AES EBU Flagship Audio Decoder

    Musetec advanced regeneration power supply system
    4 very low sideband noise clocks
    O type all single crystal copper plated silver cattle
    New Analog power circuit structure
Black
Silver
Regular price ₩4,685,801
Sale price ₩4,685,801 Regular price

All-New Clock System

Including its USB interface, the DA005 features a total of four high-performance clocks, resulting in accurate decoding for a more natural sound.

Pure Silver Connections

High-purity Jensen silver wires connect many of the DA005’s internal components. Pure silver boasts higher conductivity than 7N OCC wire, resulting in a more efficient system.

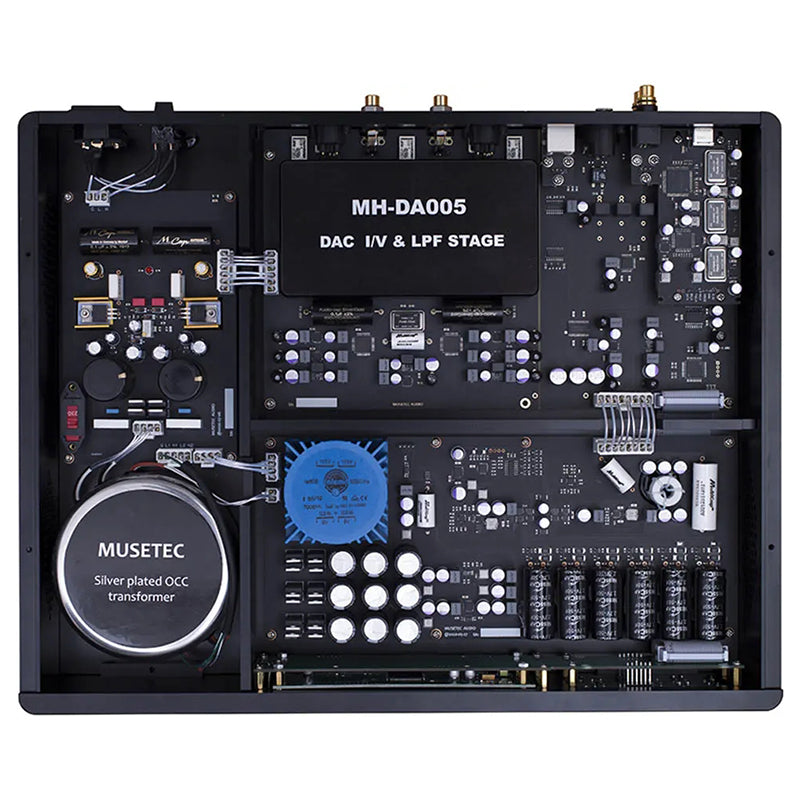

A Newly Designed Power System

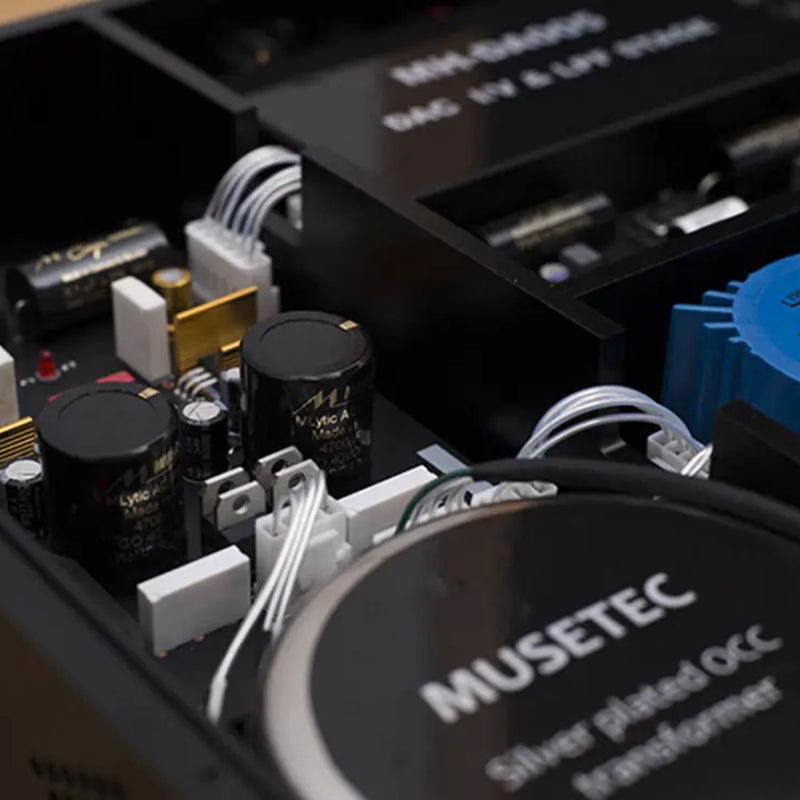

The DA005 features a newly designed power system that separates the storage and charge functions, resulting in a total reduction of AC noise. In addition, the DA005 features a customized silver-plated OCC transformer that’s quieter and more transparent than traditional OFC wire transformers. These upgrades add up to higher efficiency and a vast reduction in operational noise.

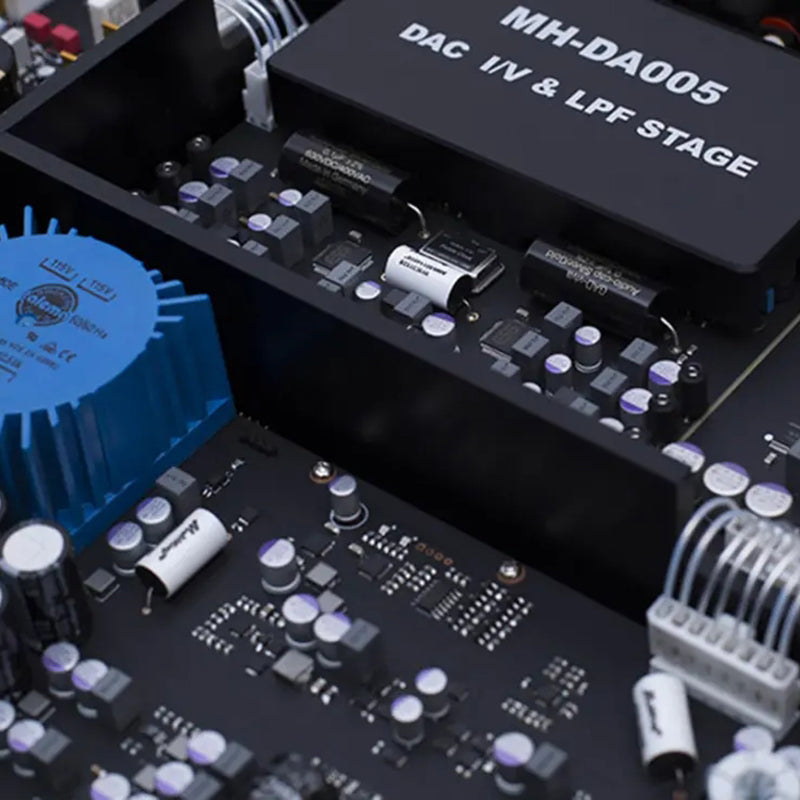

Industry-Leading DAC chip

Make that two industry-leading DAC chips. Beneath the MH-DA005’s handsome hood lie two ES9038PRO SABRE DACs, the vanguard of decoder technology, touting the industry’s highest dynamic range (DNR) of 132db in a 32-bit, 8-channel DAC.

HyperStreamDAC Technology

Having the industry’s highest DNR is one thing, but how about having an ultra-low total harmonic distortion plus noise (THD+N) level of -122dB? In layman’s terms, that means that the MH-DA005 is peerless in terms of sound clarity. You won’t believe your ears.

Accepting All Inputs

The MH-DA005 was made to accommodate a full home theater system: Blu-ray players, CD players, game consoles, laptops, tablets, and more. With support for USB, coaxial, optical fiber, AES/EBU, I2S-E, and I2S-H, this thing’s got your bases covered.

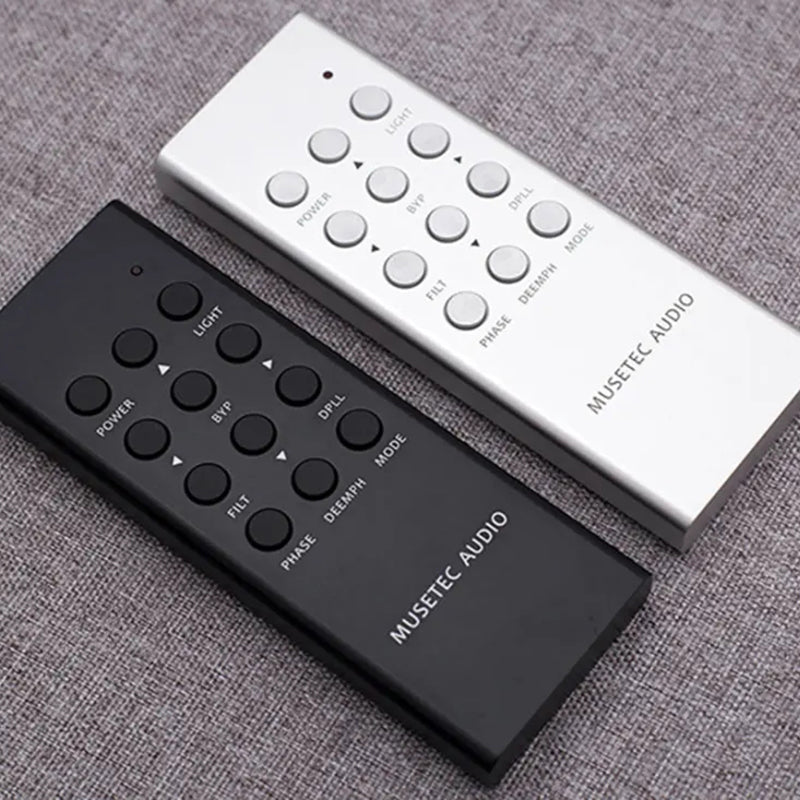

Full-Featured Remote Control

Take a load off. The MH-DA005 comes with a full-featured remote control, letting you control the volume, brightness, and a host of other features from the comfort of your couch.

Product parameters

1. Decoder chip: ES9038pro x 2

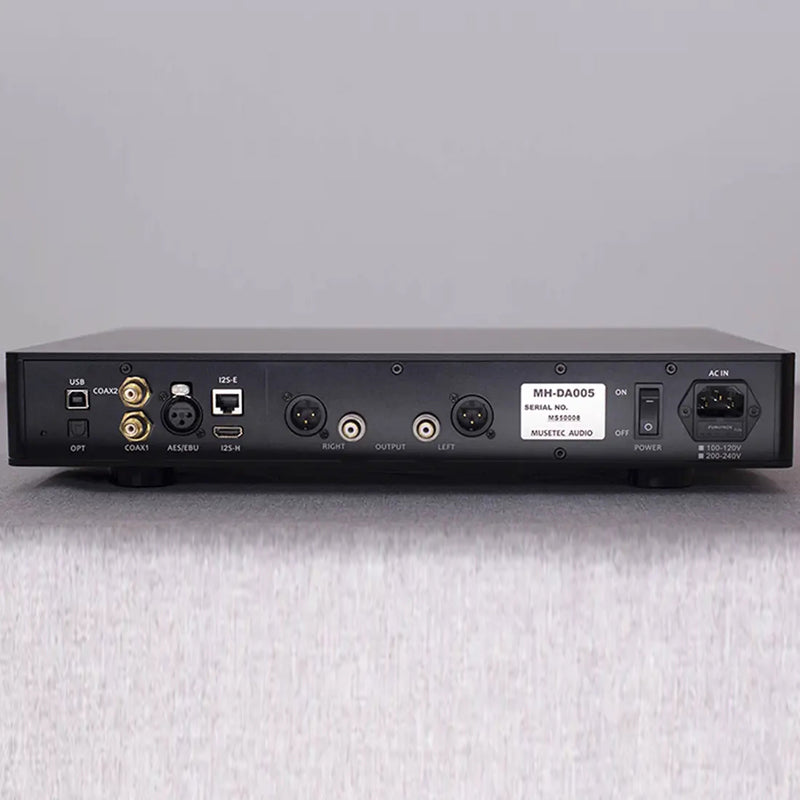

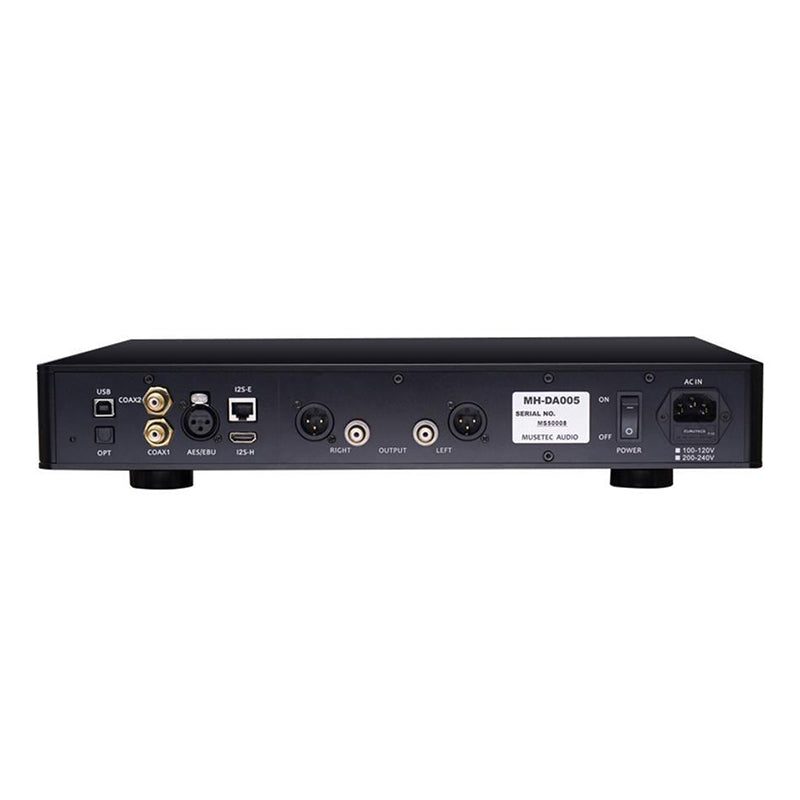

2. Input Channels: USB, coaxial 1, coaxial 2, optical fiber, AES/EBU, I2S-E, I2S-H
3. Single-ended RCA output level: 2Vrms
4. Balanced XLR output level: 4Vrms
5. Digital volume attenuation function, with 0.5db interval attenuation, can be skipped
6. Digital filter mode optional
7. DPLL can be set
8. Can be set to the DSD channel exchange function
9. Can Be turned on and off to enhance the function
10. DOP (DSD over PCM) reception can be turned on and off
11. USB supports PCM44 ~ 384K, DSD64 ~ DSD512
12. I2S-E and I2S-H support PCM44 ~ PCM384K, DSD64 ~ DSD512, Dop64x
13. Coaxial, optical fiber, AES/EBU support PCM44 ~ PCM192K, Dop64
14. It's a fully functional remote. It's got remote standby function
15. VFD display with adjustable multi-level brightness and automatic rest screen

Inside the Box

  • Remote control*1
  • American Standard Power Cord *1
  • USB cable
  • Power cord
  • T2 Hexagon Screwdriver (For removing remote control to replace battery)
  • USB Flash Disk (Contains electronic file instructions, this machine no longer provides a paper version of the instructions)
  • Warranty card

1 Year Warranty

The L.K.S Audio MH-DA005 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Dynamic range
> 136db
Distortion
< 0.0002%
Stereo separation
> 120db
Stereo separation
> 120db
Frequency response
0ー20 KHZ ± 0.2 db
Rated Power
16W
Size
430 * 350 * 78mm
Machine net weight
9.0 kg
Power supply voltage
100 ~ 120V or 200 ~ 240V optional
