F.AUDIO M20
F.AUDIO M20

F.AUDIO M20

Hardware Decoding Portable Hi-Res Music Player

  • ESS ES9039Q2M DAC
  • Multi-Stage, Multi-Operational Amplifier Analog Circuit
  • USB Decoding Support
  • Bluetooth Decoding Support
  • High/Low Gain Selection
  • TF Card Support for PCM up to 768kHz & DSD1024
Regular price ₩152,600
Sale price ₩152,600 Regular price

High-Resolution Audio Decoding

The M20 is equipped with the ES9039Q2M DAC and offers 8 filter modes to customize your listening experience. It supports full-platform USB decoding, including native hardware decoding for DSD files up to DSD1024. USB decoding also includes support for DSD128 from HIFI USB devices, ensuring high-quality sound across various formats.

Bluetooth and Connectivity

Enjoy bidirectional lossless Bluetooth transmission, supporting a range of codecs including AAC, SBC, aptX, aptX HD, and aptX-LL. With UAC 1.0/2.0 support, the M20 is also compatible with all major operating systems. The device is firmware-upgradable and includes UTF8 ASCII file sorting for better file organization.

Output and Customization

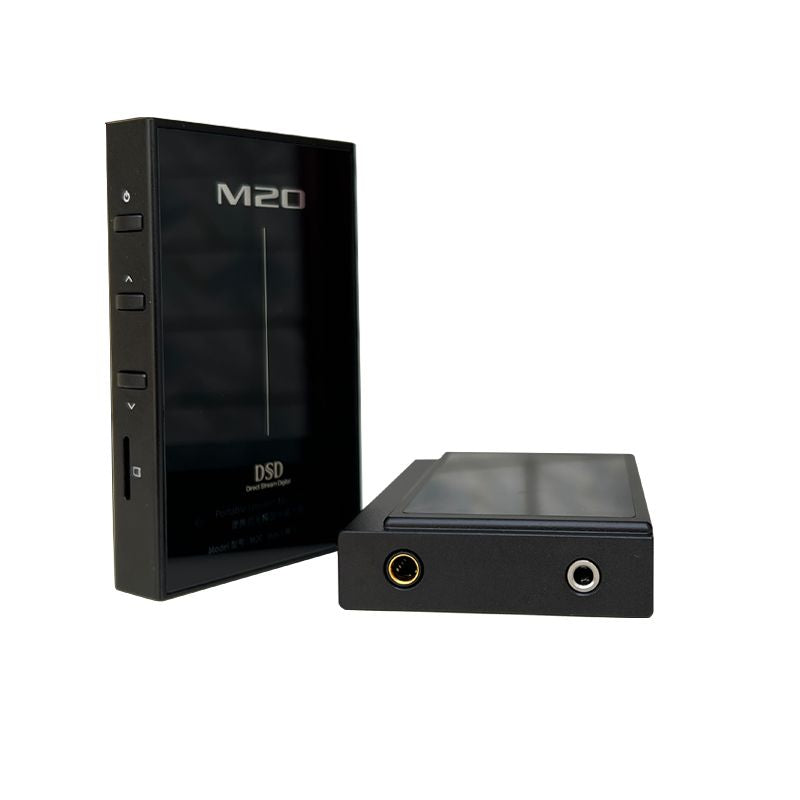

The M20 features 3.5mm LO/PO and 4.4mm balanced outputs, with dual hardware gain control for tailored audio performance. It is housed in a CNC aluminum unibody, ensuring durability and a premium look and feel.

Long Battery Life and Display

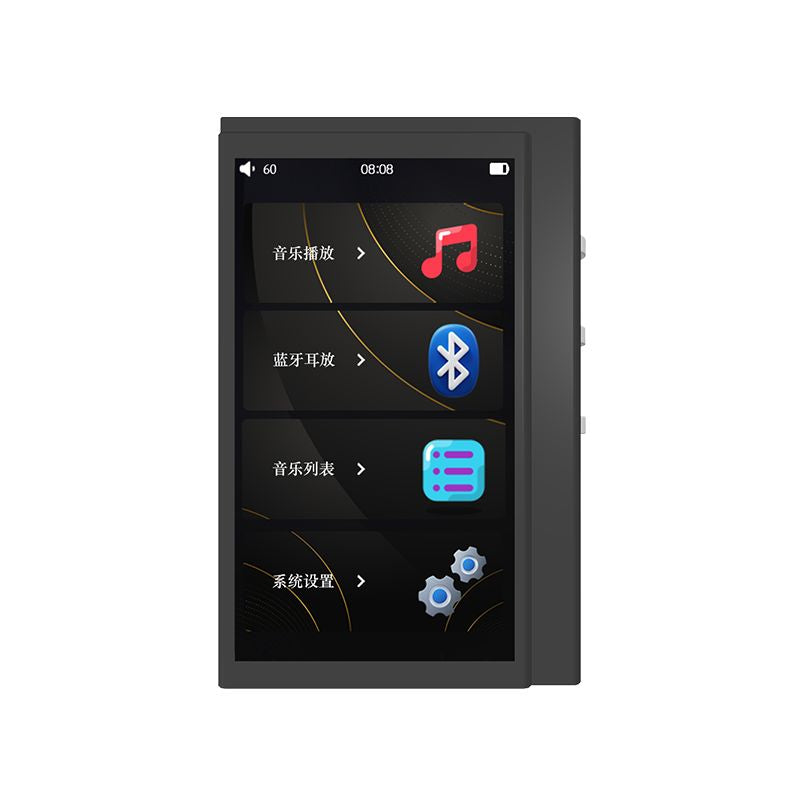

With 16 hours of single-ended and 13 hours of balanced playback, the M20 provides extended use on a single charge. The 3.0-inch HD display offers clear, vivid visuals, while PC decoding via the XMOS interface enhances your user experience.

Advanced Features and Tuning

The M20 also supports ISO, CUE, and DTS direct playback, offering compatibility with a variety of file formats. The RTC system clock provides timekeeping, including countdown timers and time display. The device offers analog-style tuning for a warm, rich sound signature that audiophiles will appreciate.

Inside the Box

  • 1 x F.AUDIO M20
  • User Manual

1 Year Warranty

The F.AUDIO M20 Comes with a 1 year warranty on the Digital Audio Player only. Warranty doesn't apply to the included accessories.

Technical Details

Audio Parameters
Signal-to-Noise Ratio (SNR): 3.5mm PO/LO: 115 dB; 4.4mm BAL: 117 dB
Total Harmonic Distortion + Noise (THD+N): 3.5mm PO/LO: 0.0011%; 4.4mm BAL: 0.0013%
Output Level: 3.5mm PO/LO: 2 Vrms; 4.4mm BAL: 4 Vrms
Output Power (Low Gain): 3.5mm PO/LO: 320mW; 4.4mm BAL: 445mW
Output Power (High Gain): 3.5mm PO/LO: 480mW; 4.4mm BAL: 650mW
Supported Music Formats
DSD: DSD64, DSD128, DSD256, DSD512, DSD1024 (DSF, DFF)
FLAC: 16-384kHz, 6-24bit, supports lossless compression with L0-L10 levels
WAV: 16-768kHz, 16-64bit
APE: 16-192kHz, 16-64bit, supports compression with FAST, NORMAL, and HIGH levels
CUE: Supports FLAC, WAV, and APE in split-track mode (CUE and full track files must be stored together)
DTS: 41-48kHz, 16bit, 5.1 surround sound
MP3: 16-48kHz, 16bit, bitrates 8-320kbps
M4A: Apple AAC supports up to 48kHz; Apple Lossless (ALAC) supports up to 24-bit/384kHz
ISO: SACD ISO image files, supports DSD64, DSD128, DSD256, DSD512 (theoretical support for DSD1024, DST encoding not supported)
Model
M20
Material
Aluminum Alloy (Black)
Dimensions (W x H x D)
92 x 59 x 17.5 mm
Weight
145 g
Screen Size
3.0 inches (HD Display)
Decoding Chip
ES9039Q2M
Decoding Formats
PCM 32-bit/768kHz, DSD256
USB Port
Type-C USB 2.0 (Data, Charging, USB DAC)
Output Ports
3.5mm Headphone/Line Out + 4.4mm Balanced Headphone/Line Out
Battery Capacity
3000mAh
Charging Time
Approximately 4-5 hours (recommended 5V 2A charger)
Playback Time
16 hours (Single-ended), 13 hours (Balanced)
Bluetooth Version
5
Bluetooth Transmit/Receive
SBC/AAC/aptX/aptX HD/aptX LL
Storage Expansion
TF Card Slot, Supports 16GB-1TB (Recommended read speed: 130-180MB/s, high-speed cards)
