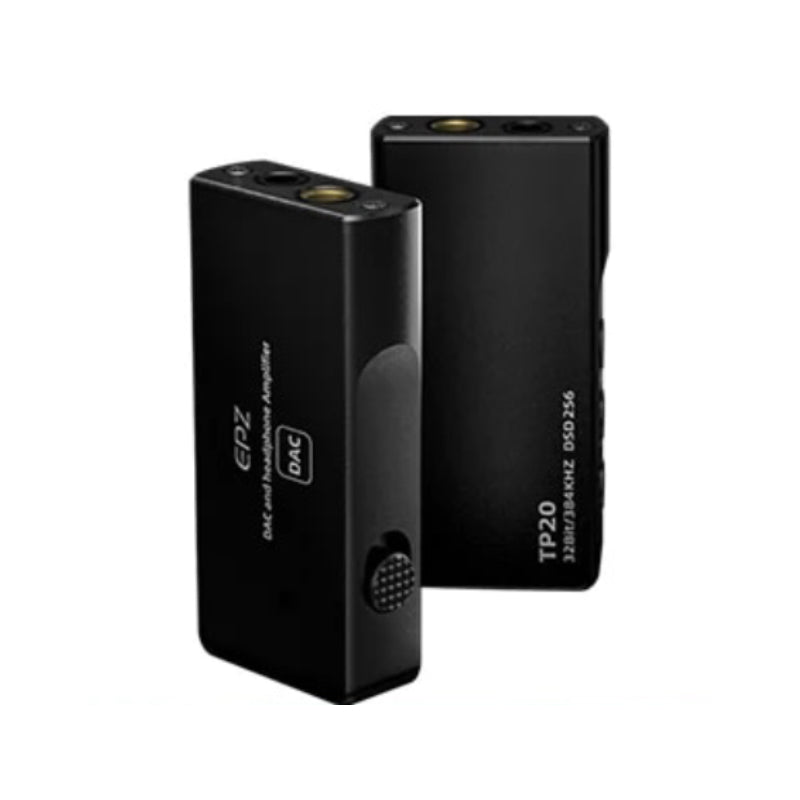

EPZ TP20
Dual CS43131 Chips
Equipped with dual CS43131 chips, the TP20 stands as a small black brick delivering extraordinary performance. The dual output ports, featuring 3.5mm and 4.4mm interfaces, are housed in an alloy body. With high and low gain adjustment capabilities, TP20 caters to audiophiles seeking versatility.
Refined Luxury Design
Crafted with a zinc alloy body, TP20 boasts not only refined aesthetics but also enhanced rigidity and durability. The integrated design ensures lower resistance, resulting in transparent and natural sound quality.
"Core" as a Price Choice
Powered by double CS43131 high-performance DAC chips, TP20 takes pride in independent decoding for the left and right channels. This unique design significantly reduces channel interference, offering a purer and superior sound experience.
Two-Pronged and Convenient Adaptation
TP20 caters to your audio needs with both 3.5mm single-ended and 4.4mm balanced output interfaces. The high and low gain options make it effortlessly compatible with a wide range of headphones available in the market.
Strong Sound Waves and High-Energy Decoding
Boasting 151mW@32Ω large thrust, TP20's design incorporates two CS43131 DACs and independent earplugs. This, coupled with excellent circuit design and premium materials, achieves a remarkable signal-to-noise ratio of up to 125dB. The balanced output offers an expansive dynamic range of 130dB.
Flexible Transmission with Selected Wires
TP20 ensures flexible transmission with its high-quality 8-core copper-silver mixed wire. Individually shielded for superior anti-interference, this cable lowers impedance, delivering a purer sound. Compatible with T TOC or T TO lightning, TP20 adapts seamlessly to a variety of equipment, providing a captivating audio journey.
Technical Details
Decoding: PCM 32bit/384kHz/DSD256
THD+N: 0.0018% (A-weighting@0.5V)
Frequency Response: 20Hz-40kHz
Signal-to-Noise Ratio: 125dB
Channel Separation: -75dB
Dynamic Range: 125dB
Output Impedance: 32Ω (Refers to the maximum thrust output after connecting the 32Ω headset)
DSD: 256
Decoding: PCM 32bit/384kHz/DSD256
THD+N: 0.0008% (A-weighting@0.5V)
Frequency Response: 20Hz-40kHz
Signal-to-Noise Ratio: 130dB
Channel Separation: -100dB
Dynamic Range: 130dB
Output Impedance: 32Ω (Refers to the maximum thrust output after connecting the 32Ω headset)
Net Weight: 56g
Size: 5.5x2.4x1.2cm
