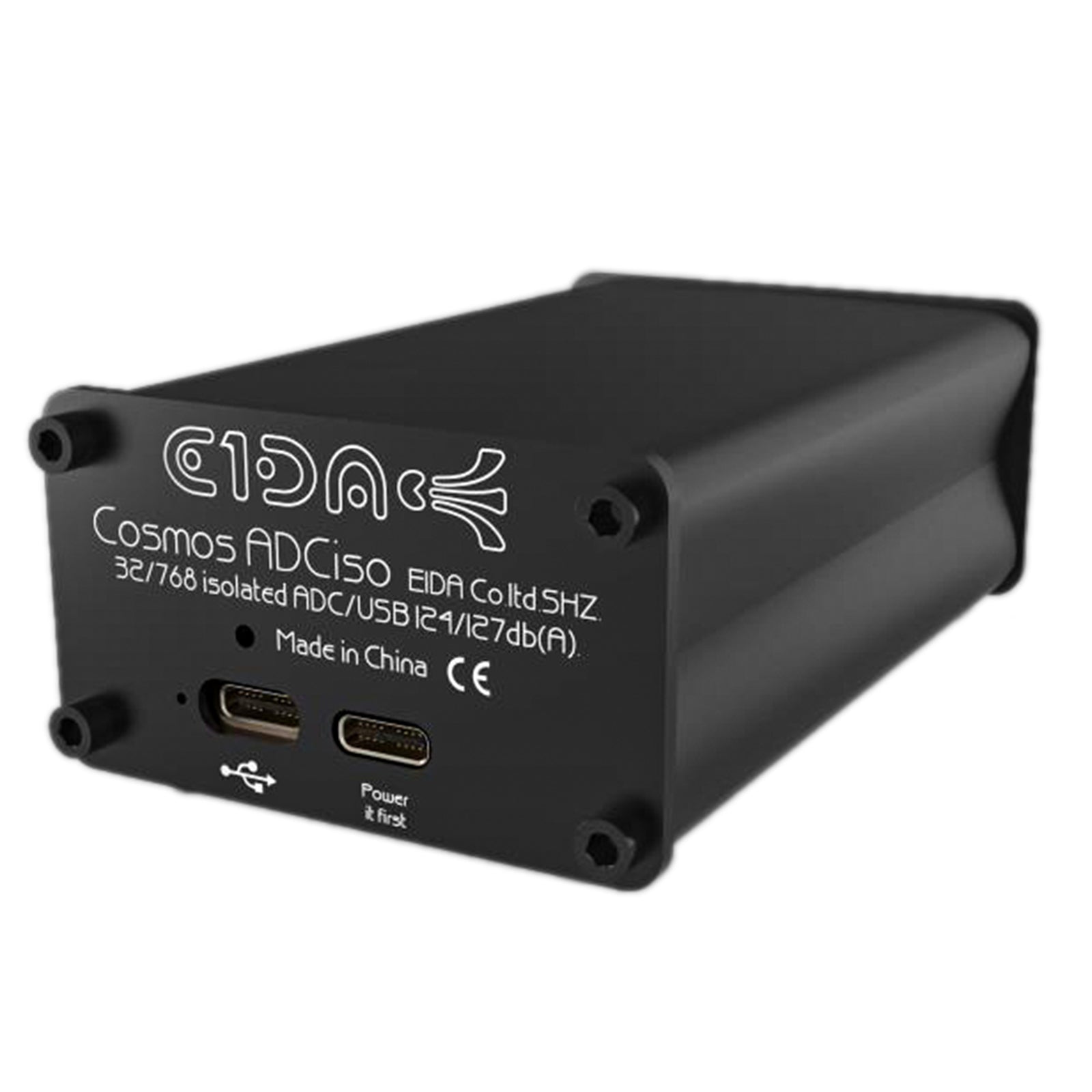

E1DA Cosmos ADCiso

High-Precision Analog-to-Digital Converter for Audio Testing

  • Dynamic Performance Enhancement
  • Individually Calibrated for Precision
  • Seamless Integration and User-Friendly Design
  • Comprehensive Software Support
  • Accessories for Enhanced Functionality
Regular price ₩325,265
Sale price ₩325,265 Regular price

Dynamic Performance Enhancement

Equipped with the latest ES9822Pro chip from ESS Technology Inc., Cosmos ADC leverages a dual-magnetic circuit super dynamic driver and a customized 30095 balanced armature driver. This powerful combination ensures minimal distortion levels, achieving a typical Total Harmonic Distortion (THD) of <0.00003% and harmonic levels between -135dB to -145dB across all grades from A to C.

Individually Calibrated for Precision

Each Cosmos ADC unit undergoes meticulous individual calibration to optimize performance at -0.5dbfs and 1kHz frequency. The device's grading system, ranging from A to C, reflects variations in Signal-to-Noise Ratio (SNR) and Dynamic Range (DR), with grade-A units boasting SNR of 129dB(A) and above.

Seamless Integration and User-Friendly Design

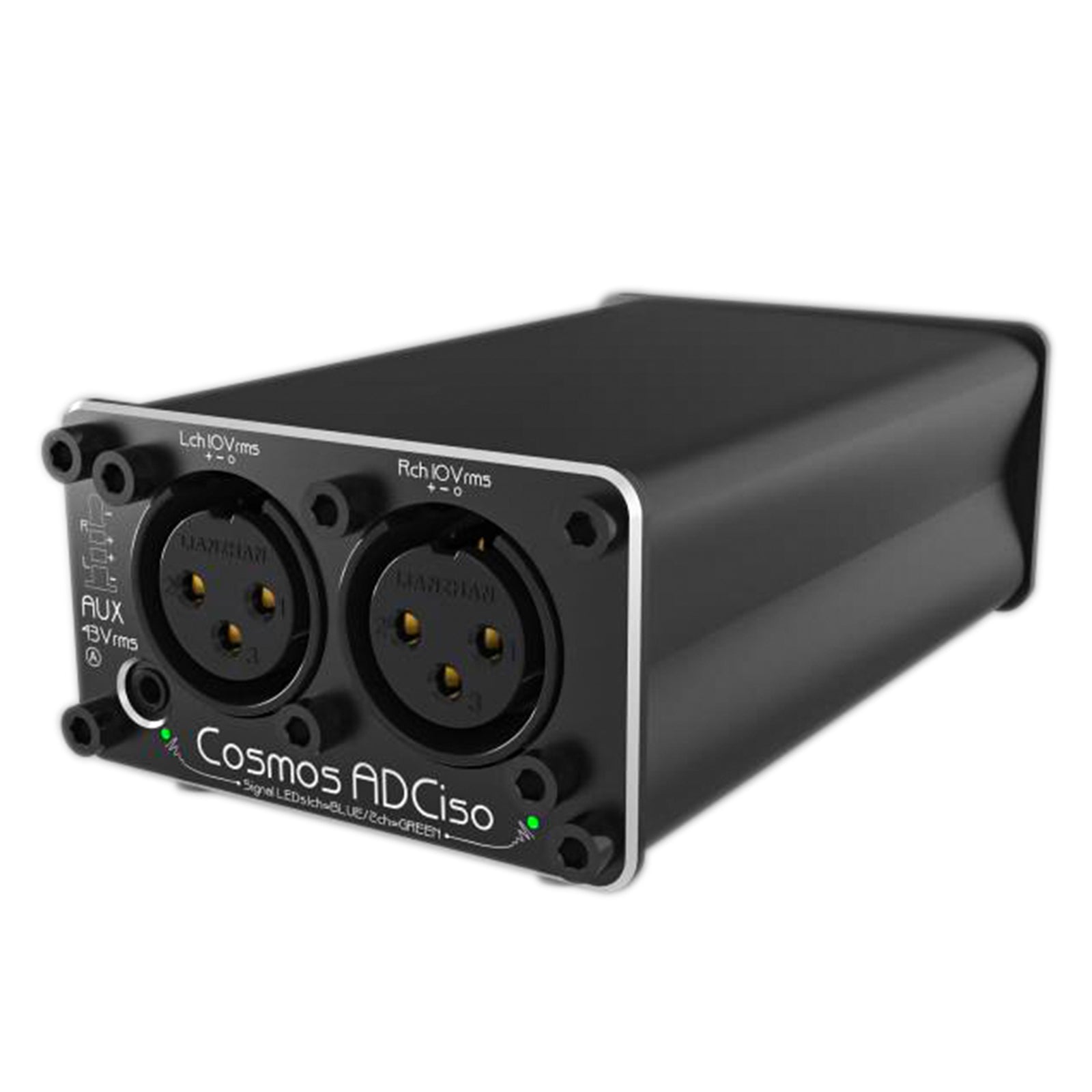

Cosmos ADC features a user-friendly interface with LED indicators for signal status and clipping detection. The device seamlessly switches between MONO and STEREO modes based on input volume levels, ensuring optimal performance in any setting. Additionally, Cosmos ADC offers flexible connectivity options, including USB-C and XLR inputs, catering to diverse recording and measurement needs.

Comprehensive Software Support

The device is compatible with leading FFT software such as Arta and REW, providing accurate analysis of harmonic levels and distortion. The free E1DA Cosmos Tweak Windows app offers users control over distortion levels and interpolation filters, empowering them to fine-tune their audio measurements for precision and accuracy.

Accessories for Enhanced Functionality

Cosmos ADC comes with a range of accessories, including the Cosmos Load gold-plated board for headphone output testing and the XLR probe cable for seamless connectivity. These accessories further enhance the device's versatility and usability in various measurement scenarios.

Inside the Box

  • 1 x E1DA Cosmos ADCiso
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Technical Details

SNR and DR
Grade A: 128-129dB(A)
Grade B: 126-128dB(A)
Measured in MONO mode; SNR/DR in STEREO mode is 3dB lower; Measured at 32/48 AP2700Specifications
Dimensions
104x61x39mm (PCBA: 90x50x29mm)
Weight
157g (PCBA: 34g)
Power
USB-C +5V rail, <250mA current/separated for ADCiso
Input
USB bridge Comtrue CT7601CR(ADCiso CT7601PR with native 768K) Custom FW
XLR L/R (FDA) up to 10Vrms
AUX 2.5mm Jack up to 43Vrms
Output
USB-C, PCM up to 32b/768kHz/ADCiso has that connector isolated with 8pF
Latency
5mS@192k ASIO4ALL REW (Measured as a physical delay/2 from ADC input to the 9038D output)
Frequency Response
0.8Hz-320kHz @ 32b/768kHz -3dB
THD+N and THD
THD+N@1kHz@-0.5dbFS SR48kHz BW 20-20kHz: 0.00007%
SINAD: >123dB typical for Grade A, 122dB Grade B
THD@1kHz@-0.5dbFS BW 22-22kHz: <0.00003% (0.3-0.2PPM)
Typical for 32b/48kHz all harmonics level: -135 to -145dB
Crosstalk
< -140dB @ 1kHz / ADCiso
<-153dB if not used inputs are shorted
