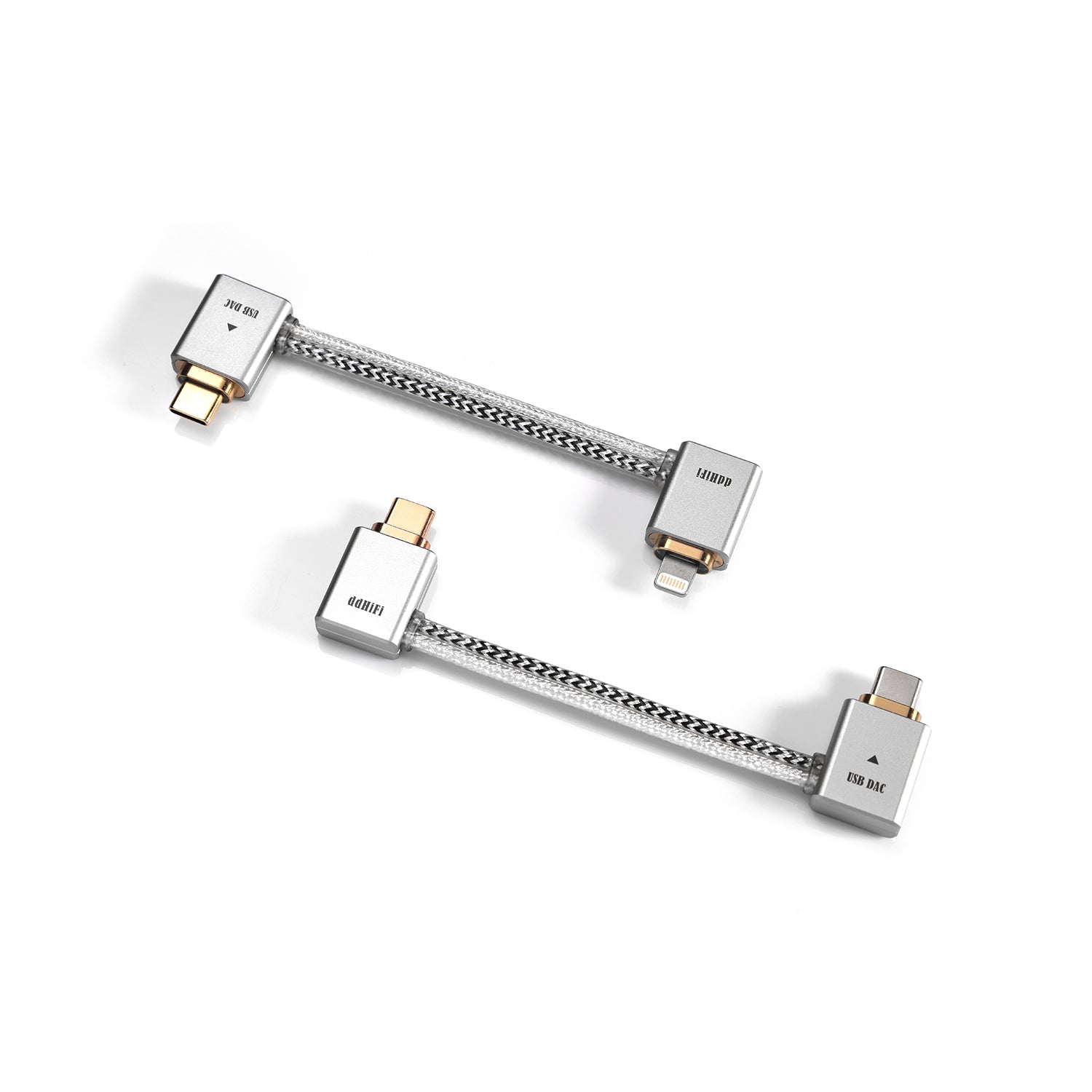

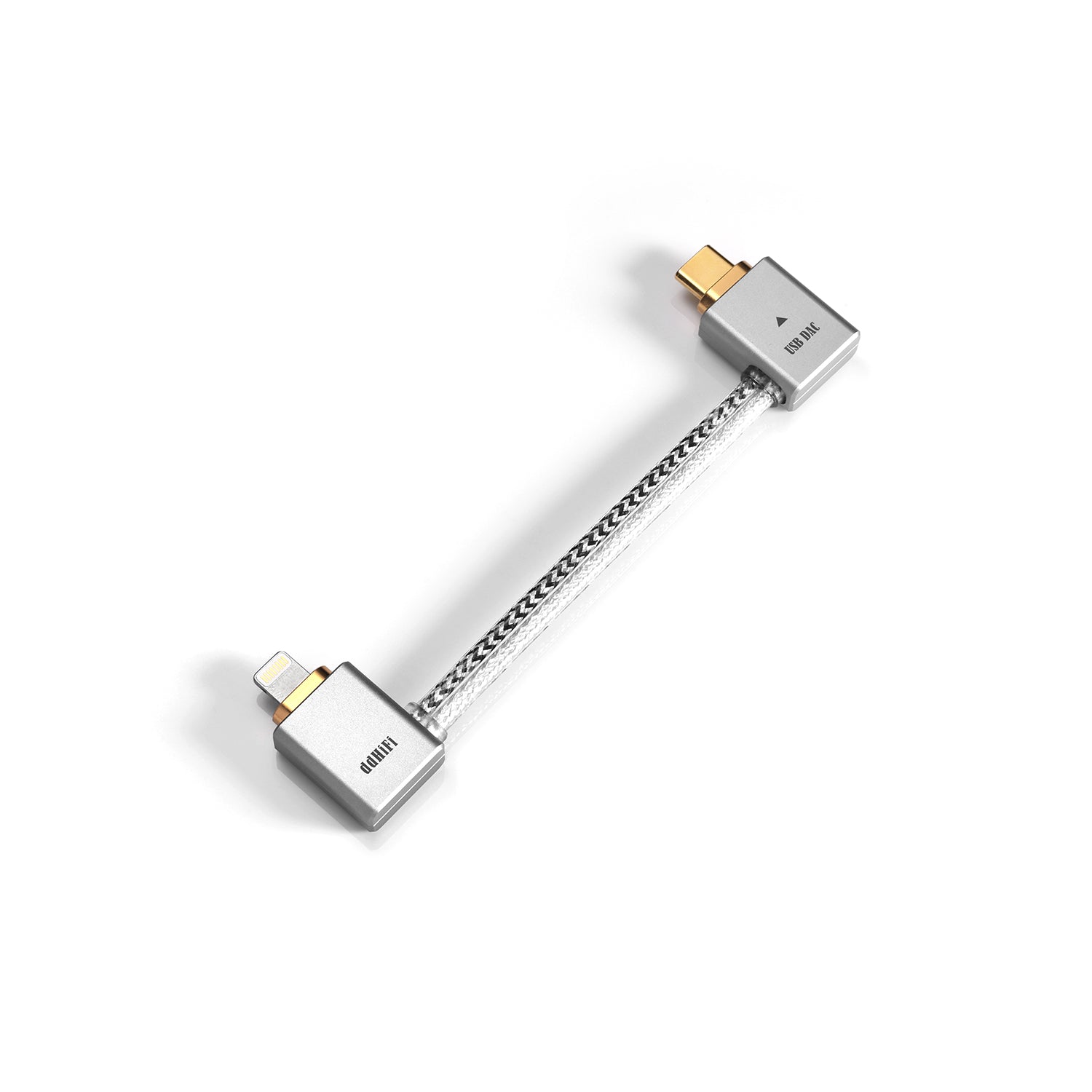

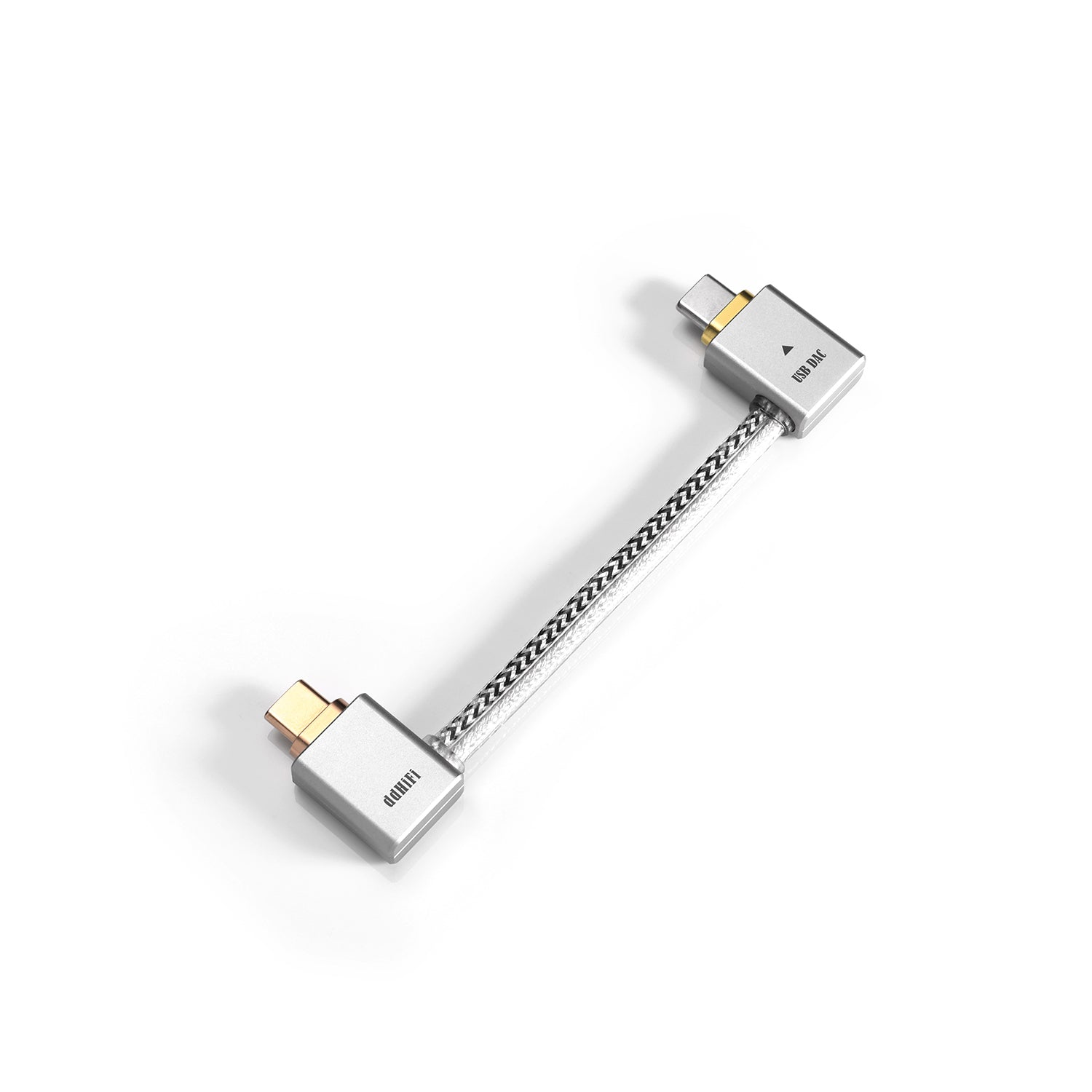

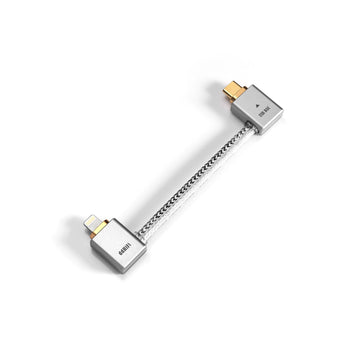

DDHiFi TC09L/MFi09L

L-Shaped OTG Cable

  • Good Sound Quality with Compact Size
  • Connecting to Your Phone
  • Connecting to Your DAC AMP
  • Reverse Connection Can Be Used for Charging
  • Double Shielded Data Cable Structure
Regular price ₩66,994
Sale price ₩66,994 Regular price

Good Sound Quality with Compact Size

When enjoying lossless music via USB output from the phone to DAC AMP, the connected cable is especially important. Because of the greater force after folding, the process of making audiophile-grade OTG cables in an L-shape is even more complicated. The TC09L uses a newly developed mold with smooth and orderly internal alignment, and a CNC-ed metal casing to resist pulling and folding in daily use.

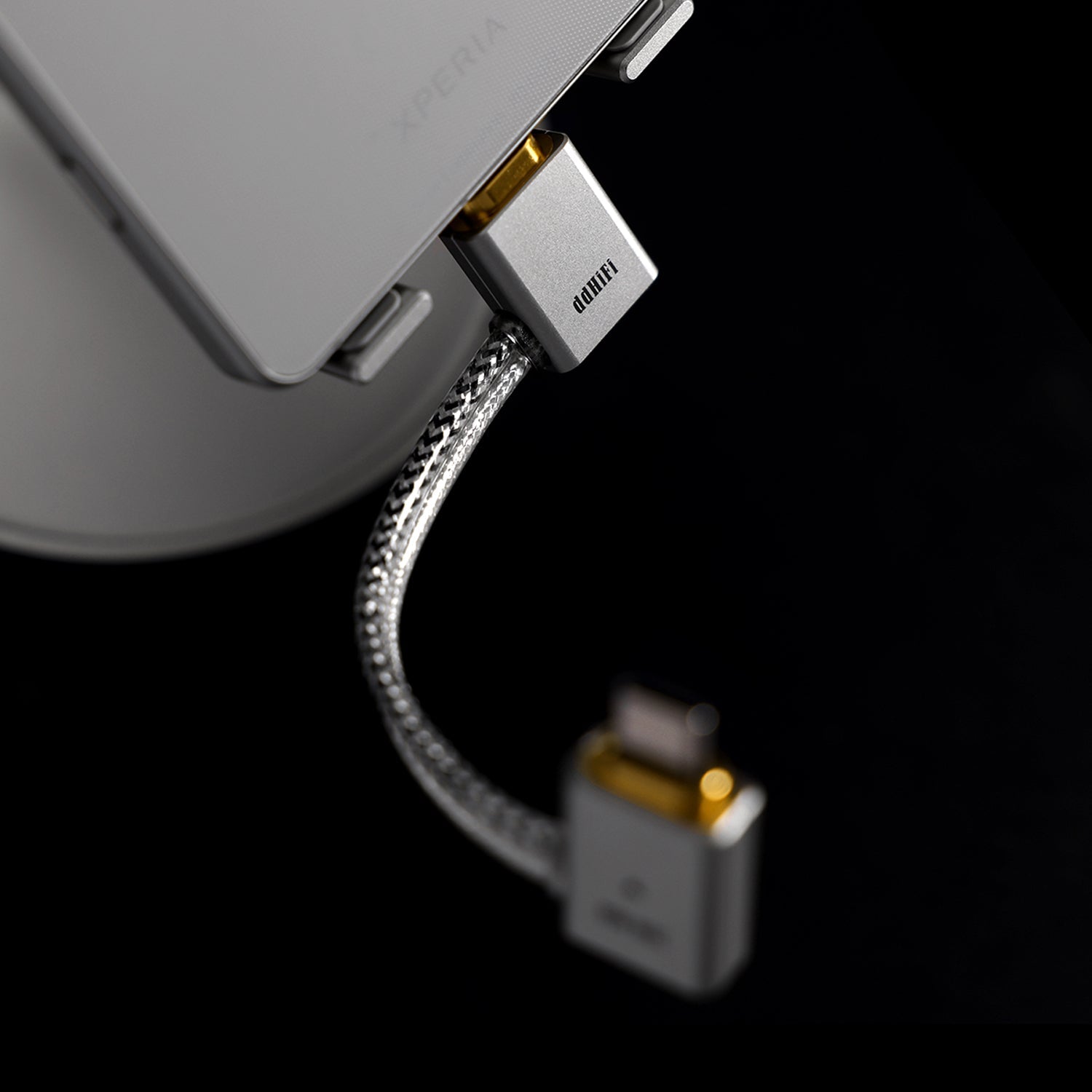

Connecting to Your Phone

Connect the OTG-enabled gold plug with the ddHiFi logo to your phone or other audio output devices to activate the OTG function.

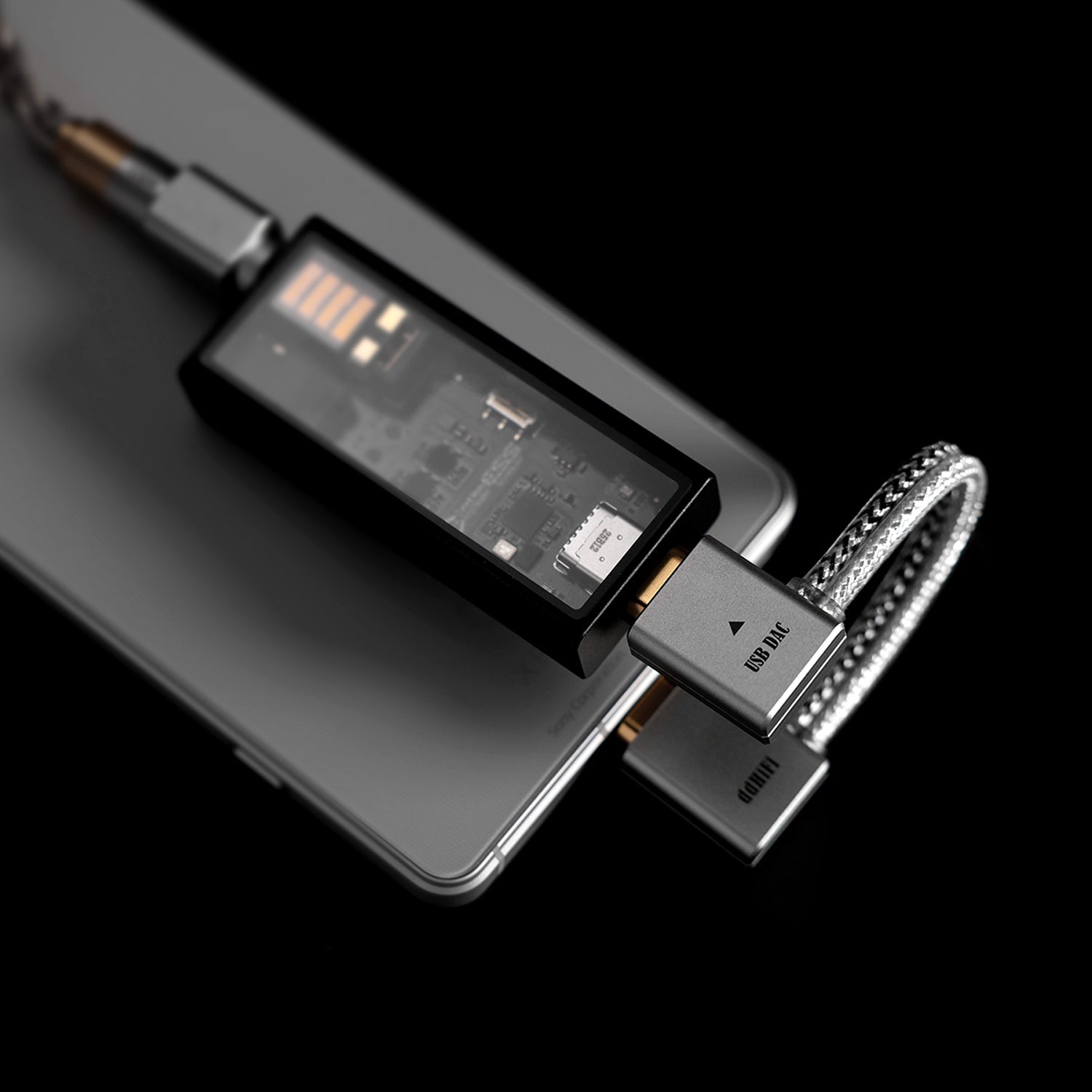

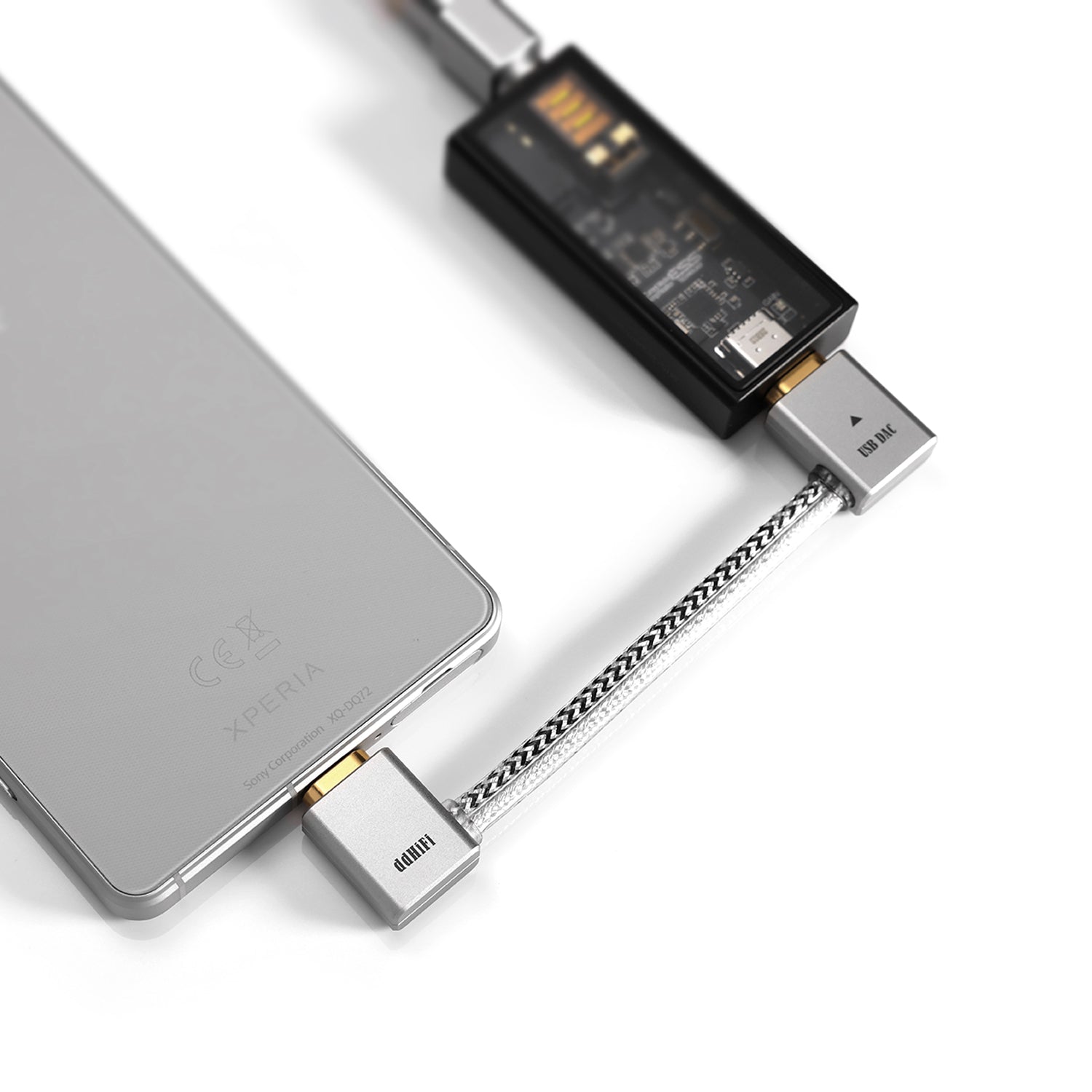

Connecting to Your DAC AMP

Supports connecting to devices such as DAC dongles, portable DAC AMPs, or DAPs with USB DAC functions. The internal resistance recognition of the USB-C plug on the end with DAC marking is different from that of the gold OTG plug, so it is required to use it in the direction of the marking to be recognized properly.

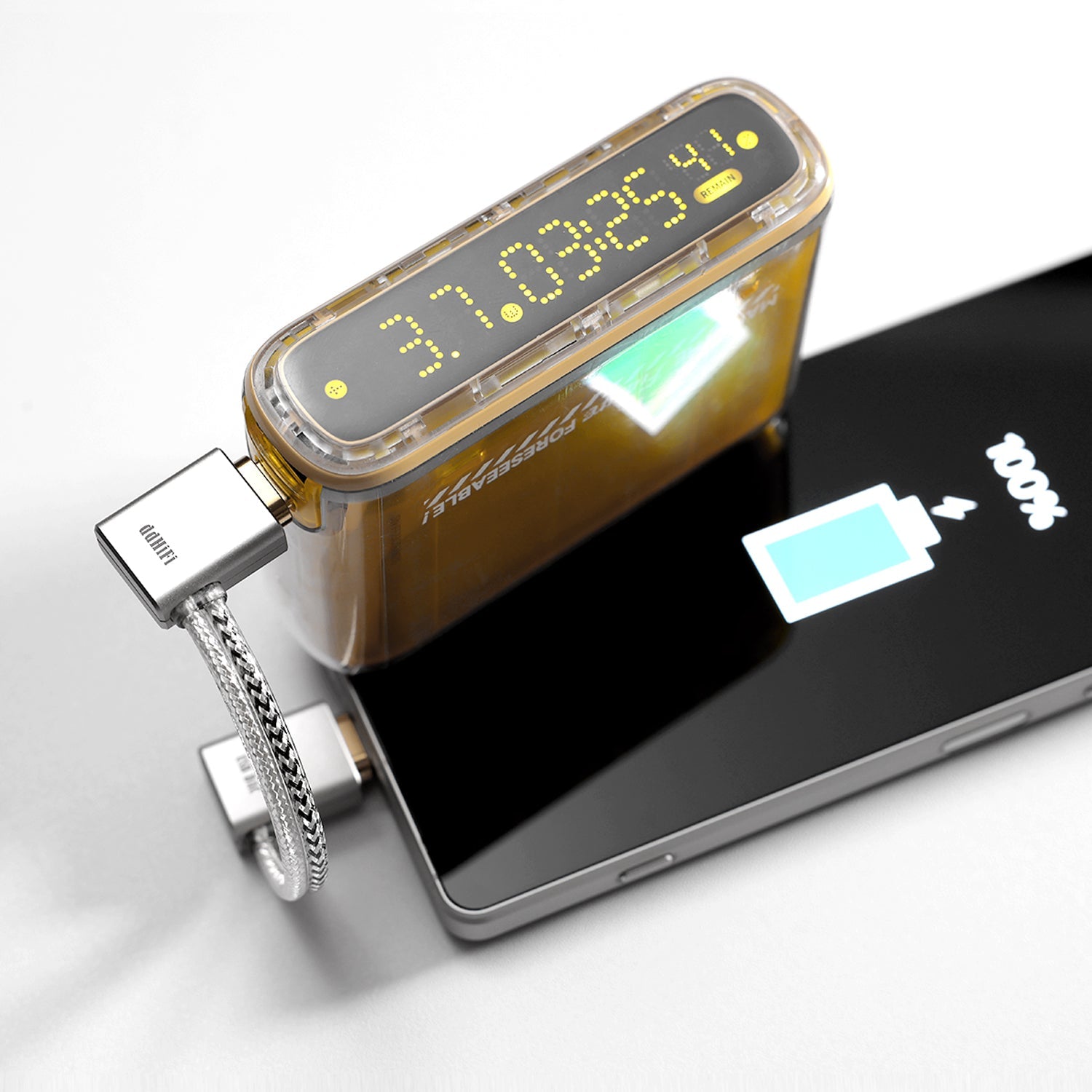

Reverse Connection Can Be Used for Charging

If you connect the end with the ddHiFi logo to a power bank and the other end with DAC marking to the phone, then the TC09L becomes a charging cable, supporting charging power up to 20W.

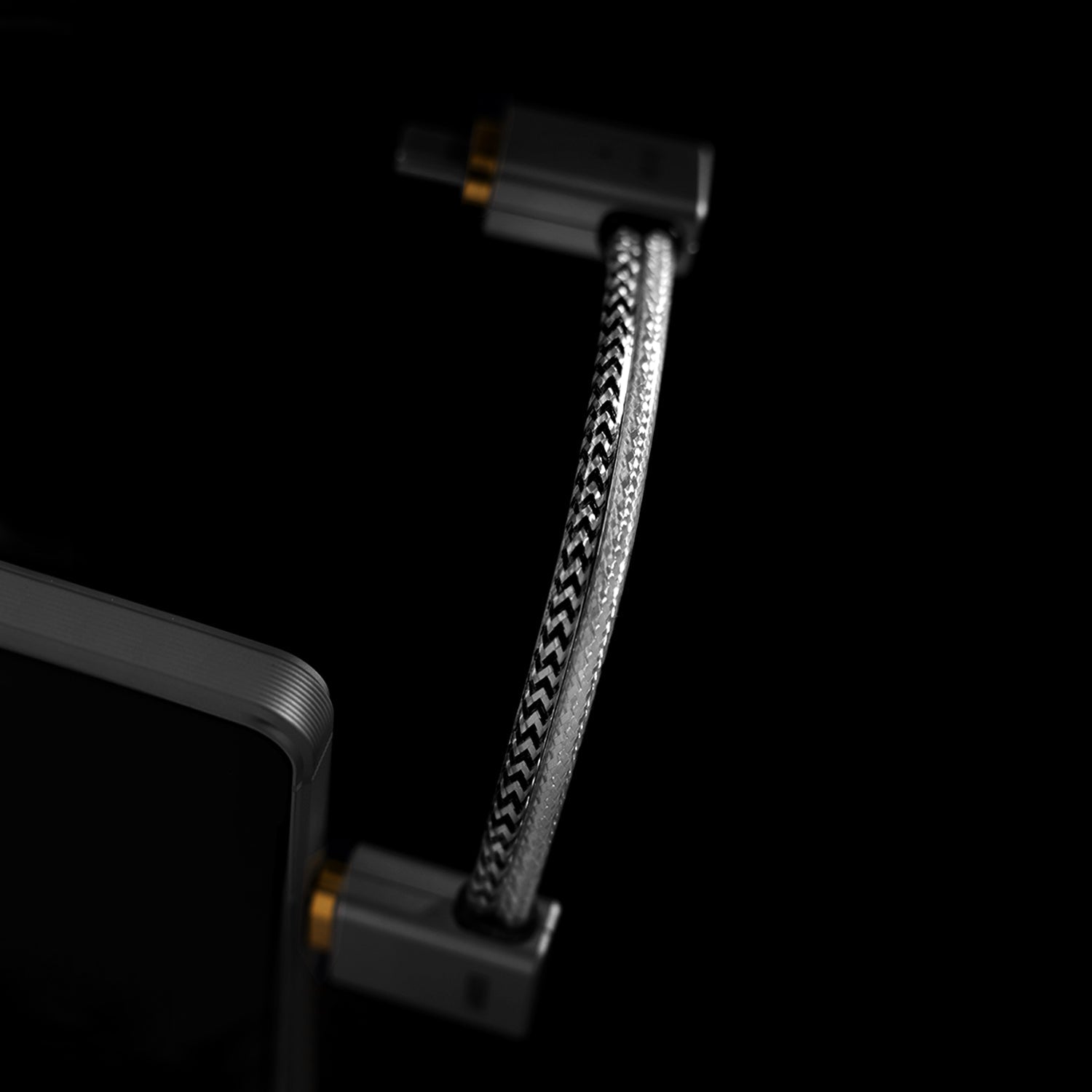

Double Shielded Data Cable Structure

For the Nyx series data cable, we developed a double shielded parallel structure to shield current and data transmission separately. They are also differentiable in appearance: the pure silver shielding outer layer is the power transmission part, and the mixed silver and black shielding outer layer is the data transmission part.

Inside the Box

  • 1 x DDHiFi TC09L/MFi09L
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Technical Details

Cable Structure
(Power Signal) Starquad with Shielding *Both power and signal part are individually insulated
Inner Insulation
Inner Insulation: NUC High Precision Chemical Foam PE (Made in Japan)
Outer Insulation: High Transparency SoftFlex PVC (Made in USA)
Data Part
Core Thickness: 26.7AWG (White) + 26.7AWG (Green)
Core Material: High Purity Litz Pure Silver (2×7/Φ0.14mm)
Shielding Material: Litz Oxygen-Free Copper + Litz Silver Plated over LCOFC
Power Part
Core Thickness: 25.6AWG (Red) × 2 + 25.6AWG (Black) × 2
Core Material: High Purity Litz Oxygen-Free Copper (4×7×7/Φ0.06mm)
Shielding Material: Litz Silver Plated over LCOFC
Weight/Length
12.2g/8cm
Plug
USB-C OTG (Gold),USB-C (Silver)

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 1 week.
