DDHIFI BC44XLR

4.4mm Balanced to XLR 3-pin Shielded Signal Cable

  • High-Fidelity Signal Transfer
  • Versatile Usage
  • Balanced Connection
  • Dual-Shielded Coaxial Structure
  • Superior Conductor Materials
Regular price ₩160,987
Sale price ₩160,987 Regular price

High-Fidelity Signal Transfer

The DDHIFI BC44XLR cable is designed to connect devices with 4.4mm balanced outputs to those with XLR balanced inputs, such as amplifiers or powered speakers. Its dual-shielded coaxial structure ensures accurate tonal representation of various instruments and clearer sound positioning.

Versatile Usage

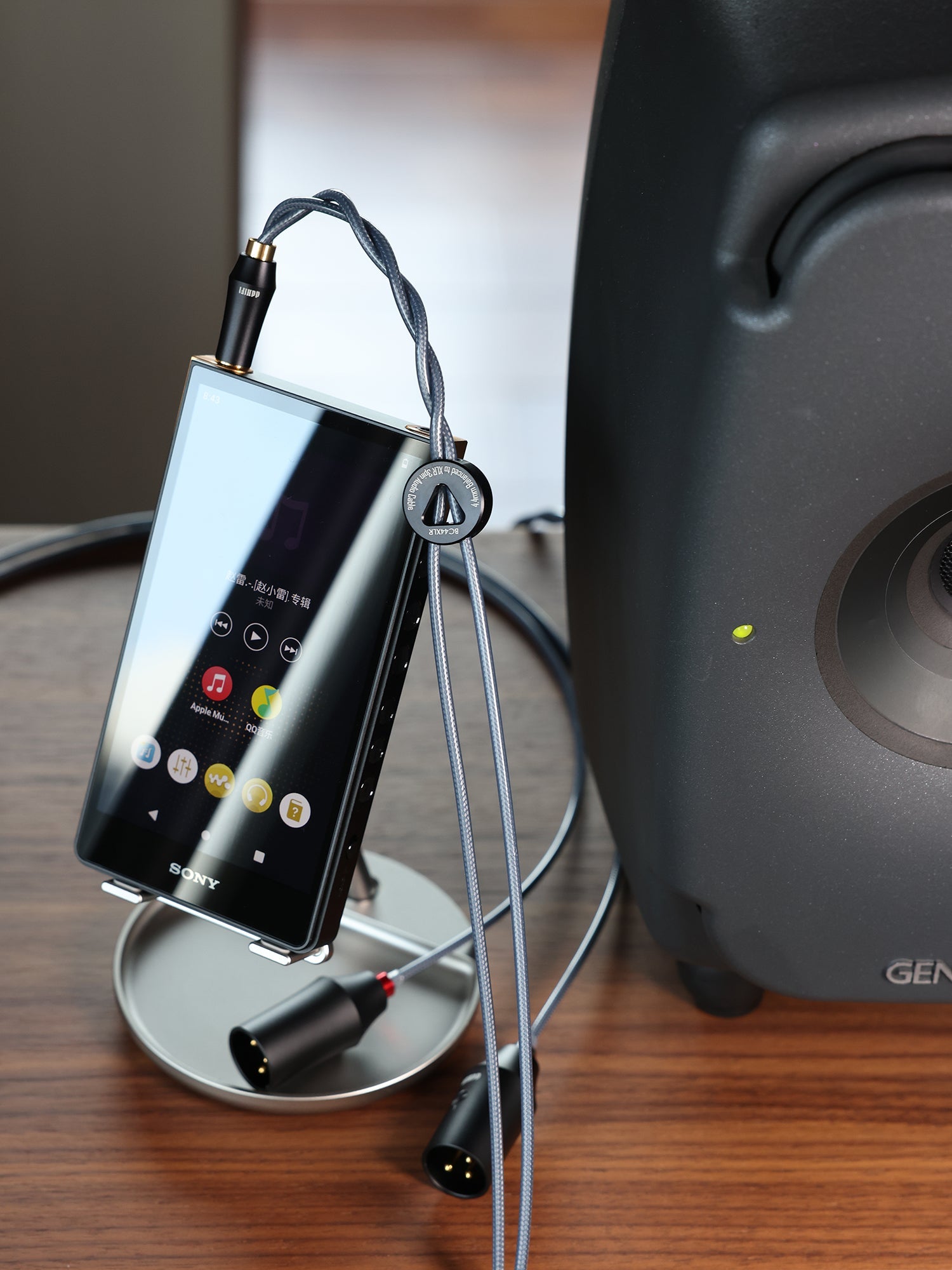

The BC44XLR functions as a preamp signal cable, enabling seamless audio transfer from a balanced 4.4mm output to an XLR input. This makes it ideal for connecting a portable player to an amplifier or active speakers.

Balanced Connection

The 4.4mm balanced and XLR 3-pin connectors are widely used in professional audio equipment. The XLR connector's three pins serve distinct purposes: Pin 1 is for the shield, Pin 2 for the positive signal ("hot"), and Pin 3 for the negative signal ("cold").

Dual-Shielded Coaxial Structure

To enhance durability and signal integrity, the BC44XLR features a unique coaxial structure with dual shielding. This design includes three layers of conductors and insulation, providing excellent tensile strength and a cleaner signal transmission background.

Superior Conductor Materials

The core conductors combine two different diameters of pure silver with single-crystal copper plated with silver and Furukawa copper-silver alloy. This combination, with a cross-sectional area of 22.8 AWG, ensures high-power transmission and efficient signal transfer, resulting in precise instrument tonal expression and clear sound positioning.

Inside the Box

  • 1 x DDHIFI BC44XLR
  • User Manual

3 Month Warranty

The DDHIFI BC44XLR Comes with a 3 month warranty.

Technical Details

Conductor Specifications
22.8 AWG (Positive), 24.3 AWG (Negative), 21.5 AWG (Shielding)
Cable Structure
Φ0.08mm 4N Pure Silver +
Φ0.05mm 4N Pure Silver +
Φ0.05mm Single-Crystal Copper Plated with Silver +
Φ0.05mm Furukawa Copper-Silver Alloy (Positive)
Φ0.05mm 5N Single-Crystal Copper (Negative)
Φ0.06mm Oxygen-Free Copper Plated with Silver (Shielding)
Connectors
4.4mm Balanced (Front), XLR 3-pin x2 (Back)
Length (including connectors)
100cm, 150cm, options
Weight
90g (145cm)
