ACMEE MF02S High Version

Bluetooth 5.0 HiFi ES9038Q2M DAC Headphone Player Decoder

    Powerful Professional Circuit
    Volume Control Knob
    ES9038Q2M DAC
    32GB Storage
Regular price ₩667,560
Sale price ₩667,560 Regular price

ACMEE MF02S High Version

Compared with MF01, MF02S High Version has made a few improvements on power supply and audio amplifying circuit. MF02S is equipped with 2*OPA1612 IV switching circuit, HDAM9988*2 and HDAM2627*2 pre-amp circuit, OPA1622*2 headphone amplifier circuit. In total, six operation headphone amplifier chip. We don’t put dual DAC in the product but we prefer better audio circuit and better performance.

Powerful Professional Circuit

MF02S High Version main board adopts 5V power supply, two LT3529 low noise power supply chip, three ultra-low noise LDO power supply TPS735, audio board adopts two way TPS735 to provide power for ES9038Q2M while two LT3042 provides power supply for audio. This configuration ensures fast response while also keep low power supply noise.

ES9038Q2M Decoding Chip

ACMEE is never boasting itself regarding DAC chip. We prefer to fully excavate the potential of each DAC. This time MF02S High Version adopts single ES9038Q2M decoding chip along with powerful detailed circuit, the performance is beyond your expectation.

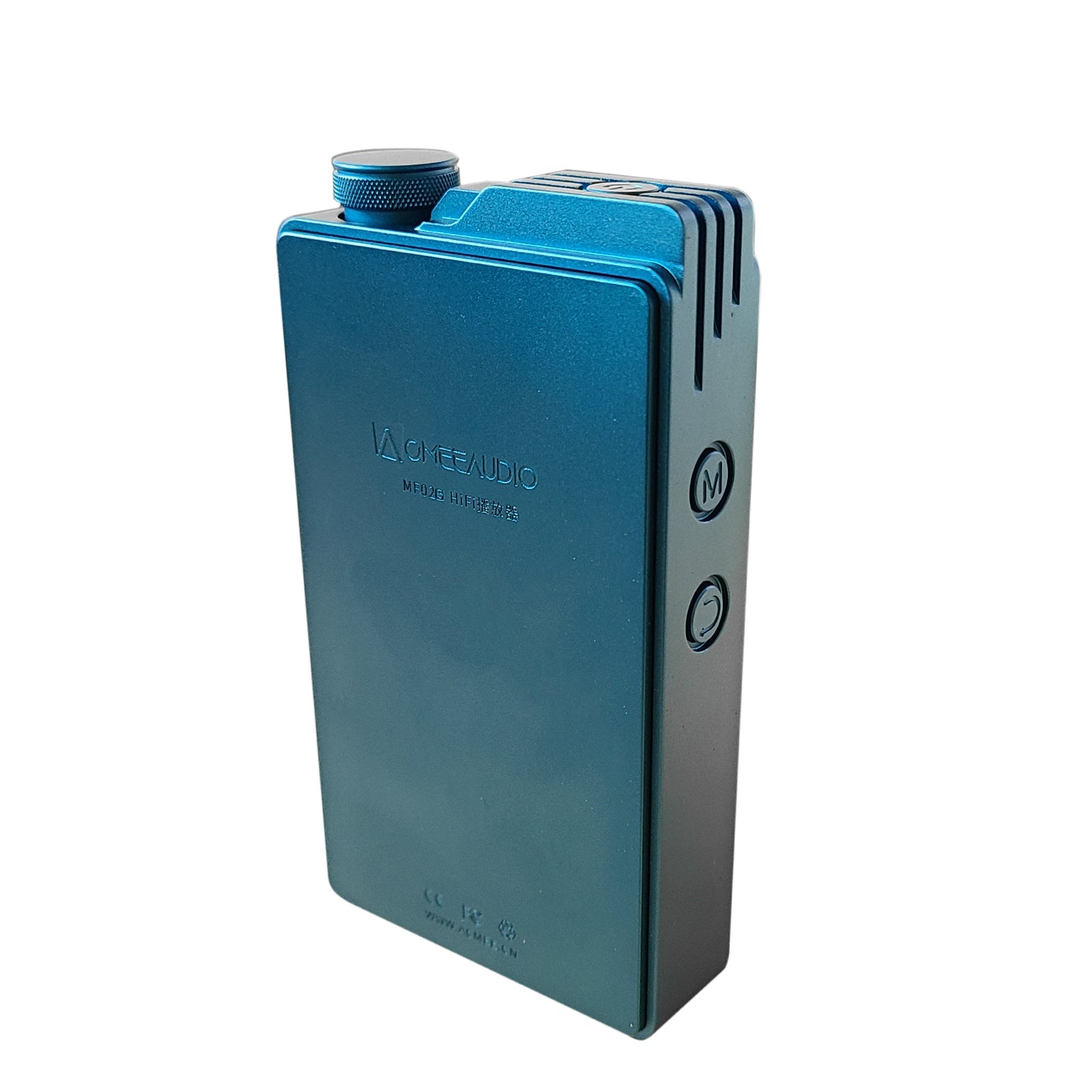

Volume Control Knob

MF02S High Version adopts imported encoder, long-lasting and full of layers. Volume control knob has exquisite knurling texture. The detailed craftsmanship provides supreme experience even when you just touch it.

Inside the Box

  • 1 x ACMEE MF02S High Version
  • User Manual

1 Year Warranty

The ACMEE MF02S High Version Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Model
ACMEE MF02S
Bluetooth Version
5.0/APTX-HD
Headphone amplifier
OPA1622*2
Main operating amplifier
HDAM998*2/HDAM2627*2
IV operating amplifier
OPA1622*2
Basic frequency
480MHz
DAC
ES9038Q2M
Frequency range
15Hz-45kHz
SNR
single end-112dB, balanced-118dB
Display screen
3 inch 480*854 IPS screen
Output
3.5 PO/LO, 4.4 balanced
Input
Type-C
Battery
3000mAh
Play time
about 6.5 hours when the screen is off
Built-in storage
32GB
Extended storage
support TF card up to 256GB

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: ETA mid-July, 2021
